EVALUATION BOARD

The ADL5201 evaluation board is available with software to

program the variable gain control. It is a 4-layer board with a split

ground plane for analog and digital sections. Special care is

taken to place the power decoupling capacitors close to the

device pins. The board is designed for easy single-ended

(through a Mini-Circuits TC3-1T+ RF transformer) or

differential configuration for each channel.

EVALUATION BOARD CONTROL SOFTWARE

The ADL5201 evaluation board is configured with a USB-friendly

interface to program the gain of the ADL5201. The software

graphical user interface (see Figure 59) lets users select a particular

gain mode and gain level to write to the device. The GUI also

allows users to read back data from the SDIO pin, showing the

currently programmed gain setting. The software setup files can be

downloaded from the ADL5201 product page at www.analog.com.

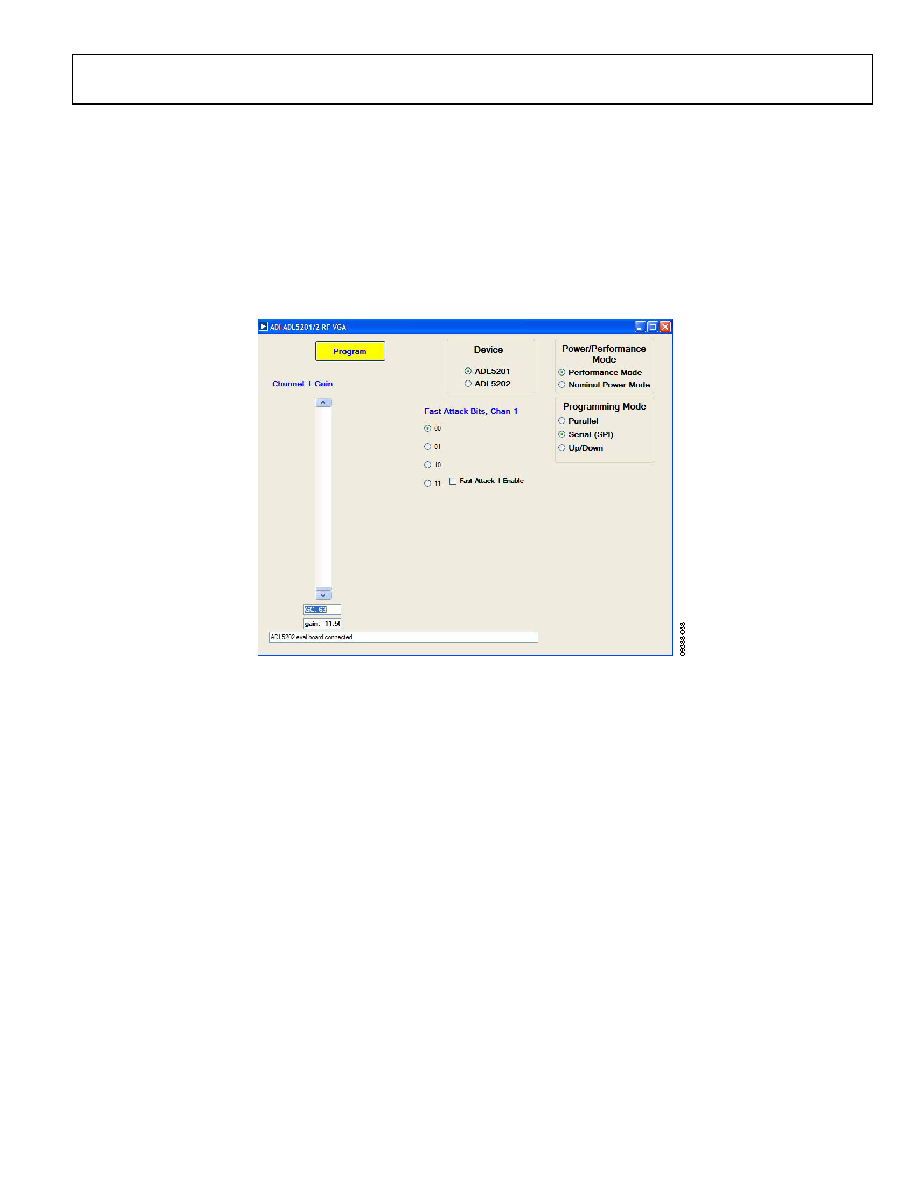

Figure 59. Evaluation Board Control Software
