1 / 51 page

This is information on a product in full production.

February 2017

DocID13264 Rev 14

1/51

M95M01-DF M95M01-R

1-Mbit serial SPI bus EEPROM

Datasheet

- production data

Features

• Compatible with the Serial Peripheral Interface

(SPI) bus

• Memory array

– 1 Mbit (128 Kbytes) of EEPROM

– Page size: 256 bytes

• Write

– Byte Write within 5 ms

– Page Write within 5 ms

• Additional Write lockable page (Identification

page)

• Write Protect: quarter, half or whole memory

array

• High-speed clock: 16 MHz

• Single supply voltage:

– 1.8 V to 5.5 V for M95M01-R

– 1.7 V to 5.5 V for M95M01-DF

• Operating temperature range: from -40 °C up

to +85 °C

• Enhanced ESD protection

• More than 4 million Write cycles

• More than 200-years data retention

• Packages:

–SO8 (ECOPACK2®)

– TSSOP8 (ECOPACK2®)

–WLCSP (ECOPACK2®)

– Unsawn wafer (each die is tested)

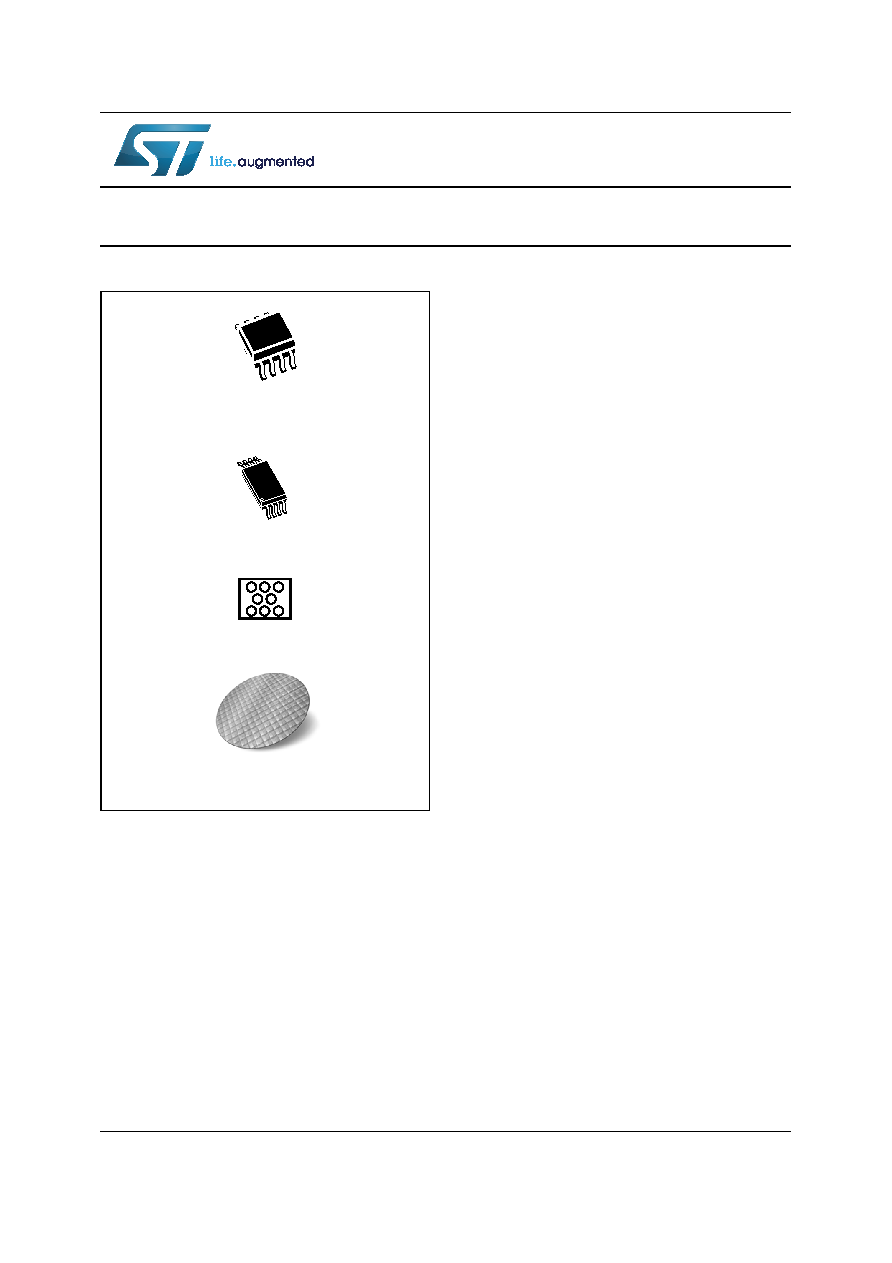

SO8 (MN)

150 mil width

TSSOP8 (DW)

169 mil width

WLCSP (CS)

Unsawn wafer

www.st.com
