HSC-R2-B 数据表(PDF) 9 Page - Hirose Electric

部件名 HSC-R2-B
功能描述  SC Type Fiber Optic Connectors
PDF  21 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  HIROSE [Hirose Electric]
网页  http://www.hirose-connectors.com
标志 HIROSE - Hirose Electric

HSC-R2-B 数据表(HTML) 9 Page - Hirose Electric

Back Button HSC-R2-B Datasheet HTML 5Page - Hirose Electric HSC-R2-B Datasheet HTML 6Page - Hirose Electric HSC-R2-B Datasheet HTML 7Page - Hirose Electric HSC-R2-B Datasheet HTML 8Page - Hirose Electric HSC-R2-B Datasheet HTML 9Page - Hirose Electric HSC-R2-B Datasheet HTML 10Page - Hirose Electric HSC-R2-B Datasheet HTML 11Page - Hirose Electric HSC-R2-B Datasheet HTML 12Page - Hirose Electric HSC-R2-B Datasheet HTML 13Page - Hirose Electric Next Button
Zoom Inzoom in Zoom Outzoom out

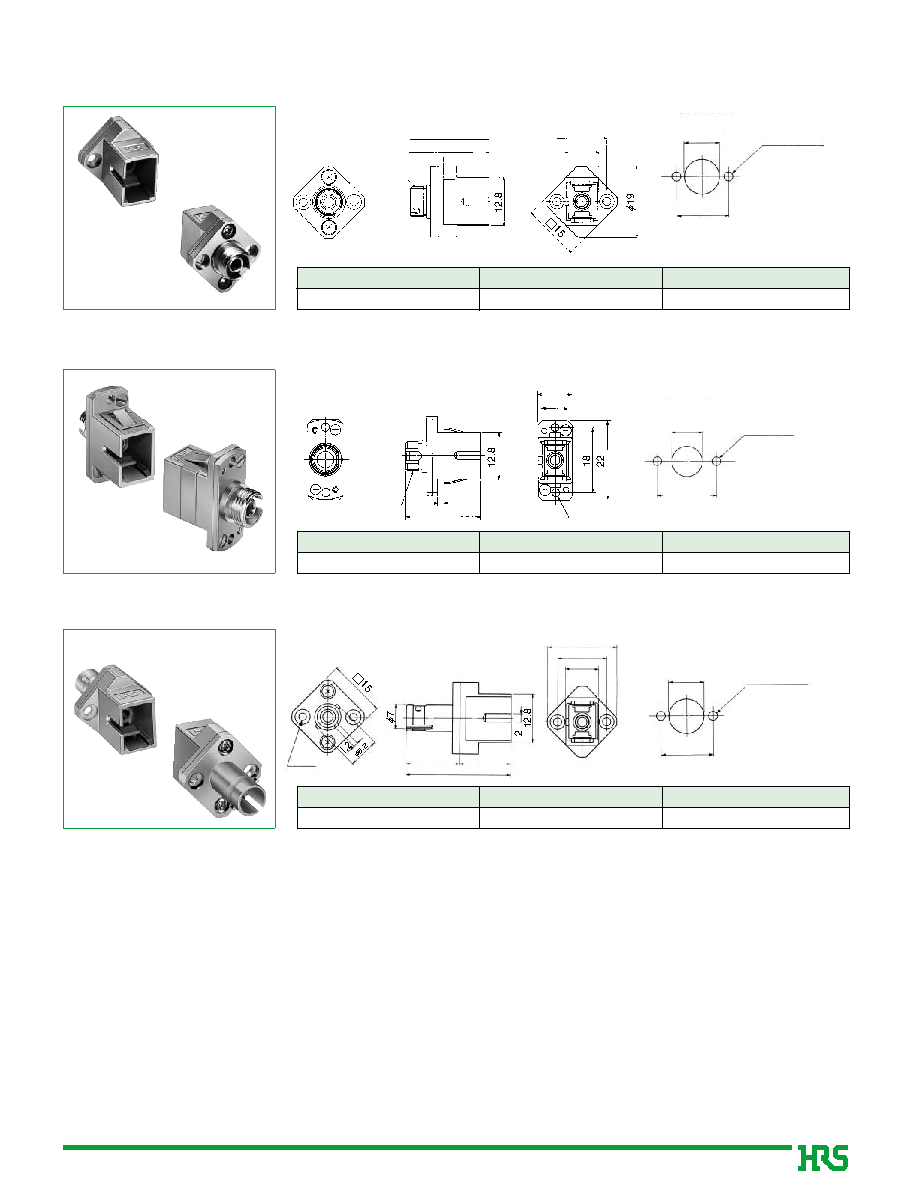

 9 / 21 page
background image
35
sConversion adapters
qFC / SC Screw Mounting
qFC / SC Snap-in and/or Screw Mounting
qST / SC Screw Mounting
BPanel cut-out
BPanel cut-out
BPanel cut-out
Ø19
Ø9
13.4
9
2-Ø2.2
13.7
14.7
28.4
Ø9
M8∞0.75
M8∞0.75
13.4
9.4
21.2
Ø2.3
18
7.4
21.2
12.2
3.5
5.5
or 2-Ø2.4
2-M2∞0.4
0.5
0.5
13.4±0.1
+0.2
+0.5
Ø9
or 2-Ø2.4
2-M2∞0.4
+0.5
0.5
+0.5
+0.5
±0.1
13.4±0.1
+0.2
+0.5
or 2-Ø2.4
2-M2∞0.4
+0.2
+0.5
13.4
Panel thickness: 1.6mm
CL No.
704-0021-3-51
Part Number
HSCJ-HRFCJ-B(51)
Split sleeve
Copper alloy
CL No.
704-0206-9-51
Part Number
HSCJ-HRFCJ-C(51)
Split sleeve
Copper alloy
CL No.
704-0102-3-51
Part Number
HSCJ-HSTJ-B(51)
Split sleeve
Copper alloy
