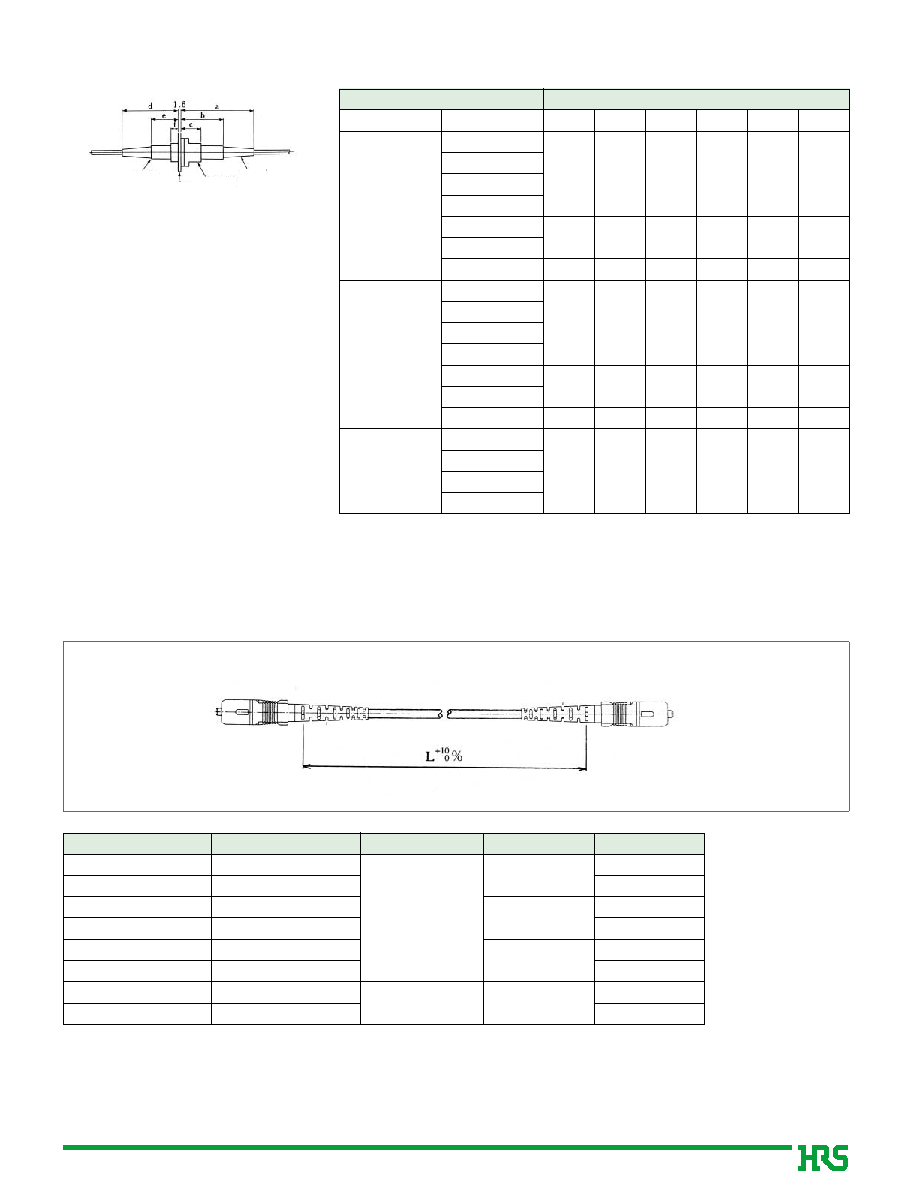

sCable assembly

Note 1: The "L" within the Product Number indicates the length of the cable illustrated on the drawing. Please specify values in metric units.

Note 2: HSC2 cable assemblies are also available.

Note 3: APC polishing is performed at an angle of 8

°. Mating with connectors polished PC or AdPC is not possible.

Note : Please contact HIROSE if you have any requests.

BMounting Dimensions

Note: Panel thickness: 1.6mm

Plug

Panel

Adapter

Plug

Unit: mm

Combination

Dimensions

HSC-A2

HSC-A2-D1

HSC-A3

HSC-A3-D1

HSC2-4A

HSC2-4A-D1

HSC2-5A

HSC2-5A-D1

HSC-PH2-E1

HSC-PH2-E2

HSC-PH3-B1

HSC-PH3-B2

HSC-PH2-E1-A

HSC-PH3-A4

HSC-PH0.9-E1

HSC2-PH2-E1

HSC2-PH2-E2

HSC2-PH3-B1

HSC2-PH3-B2

HSC2-PH3-A

HSC-PH2-E1-A

HSC2-PH0.9-E1

HSC-PH2-E1

HSC-PH2-E1

HSC-PH3-B1

HSC-PH3-B2

58

28

15.2

53.4

23.4

10.6

ab

c

d

e

f

39.5

28

15.2

34.9

23.4

10.6

36

26

15.2

31.4

21.4

10.6

58

----

13.5

53.4

----

8.9

39.5

----

13.5

34.9

----

8.9

36

----

13.5

31.4

----

8.9

57.5

27.5

14.7

----

----

----

Adapter

Housing

HSC-R1-B

HSC-R2-B

Part Number

CL No.

Fiber cable type

Polishing type

Cable Diameter

HSC-SPE2-F3Q-L

HSC-SPC2-F3A-L

HSC-ASPE2-F3Q-L

HSC-ASPC2-F3A-L

HSC-CSPE2-F3Q-L

HSC-CSPC2-F3A-L

HSC-SPE2-F3P-L

HSC-SPC2-F3B-L

704-1073-2

704-1089-2

704-1071-7

704-1094-2

-------

-------

704-1081-0

704-1086-4

SM-9.5/125

GI-50/125

PC

AdPC

APC

PC

Ø2mm

Ø3mm

Ø2mm

Ø3mm

Ø2mm

Ø3mm

Ø2mm

Ø3mm
