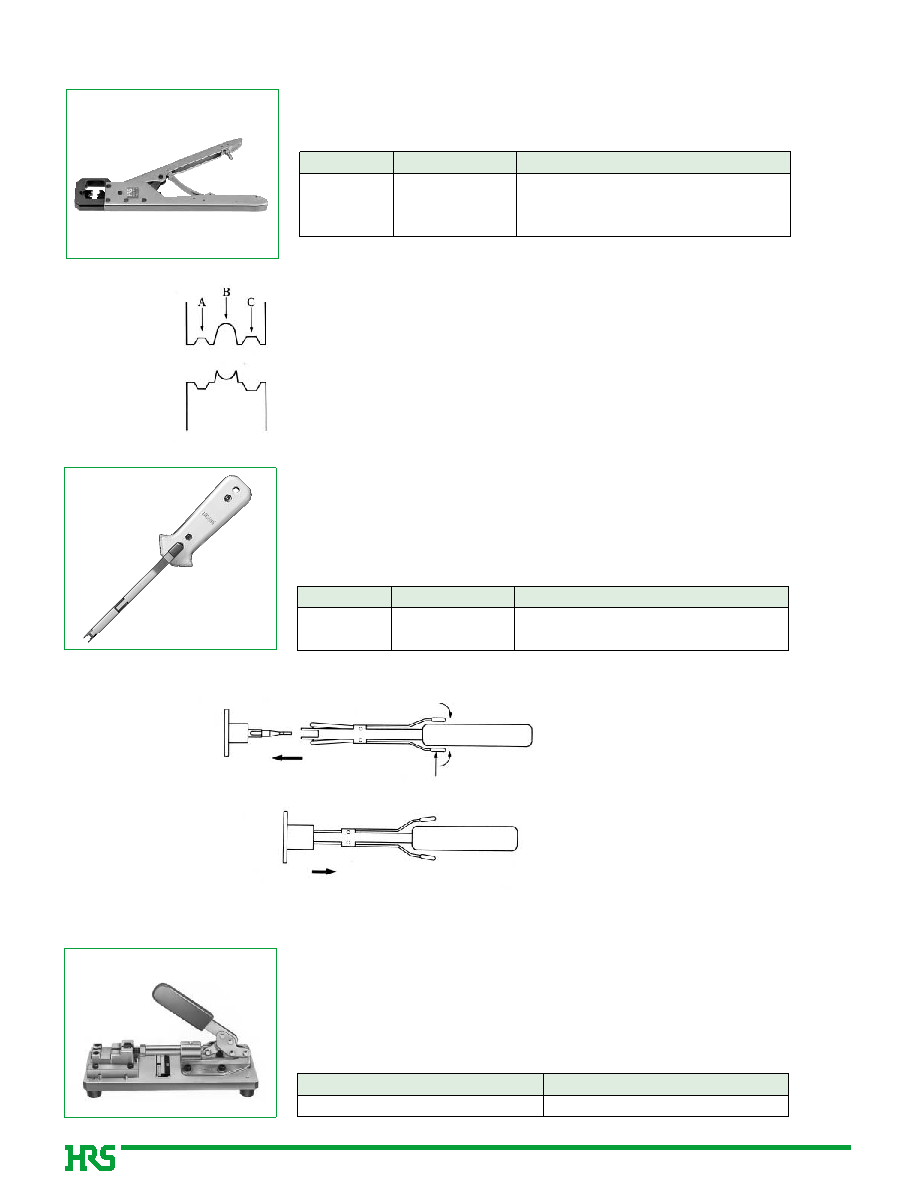

sTools

CL No.

704-0287-0

Part Number

HSC-T3

Applicable connector

SC plug for 2mm, 3mm cable.

qCrimp Tool

(This is used in crimping of Kevlar at time of the plug termination.)

(1)2mm Jacket crimping: Please select section A

3mm Jacket crimping: Please select section C

(2)KevlarTM crimping: Please select section B

1.Open the tip of tool by compressing levers as shown below.

Hold/release lever

qHSC2 Insertion/Extraction Tool

CL No.

704-0286-8

Part Number

HSC-T1-L

Applicable Products

HSC2 series.

qPlug assemble Tool

CL No.

Part Number

902-6029-1

HSC2-PH2/CVMD

2.Insert the tool (with opening the tips) into adapter.

3.Release the levers (then the tool catch HSC2 plug) and you can release the connector.
