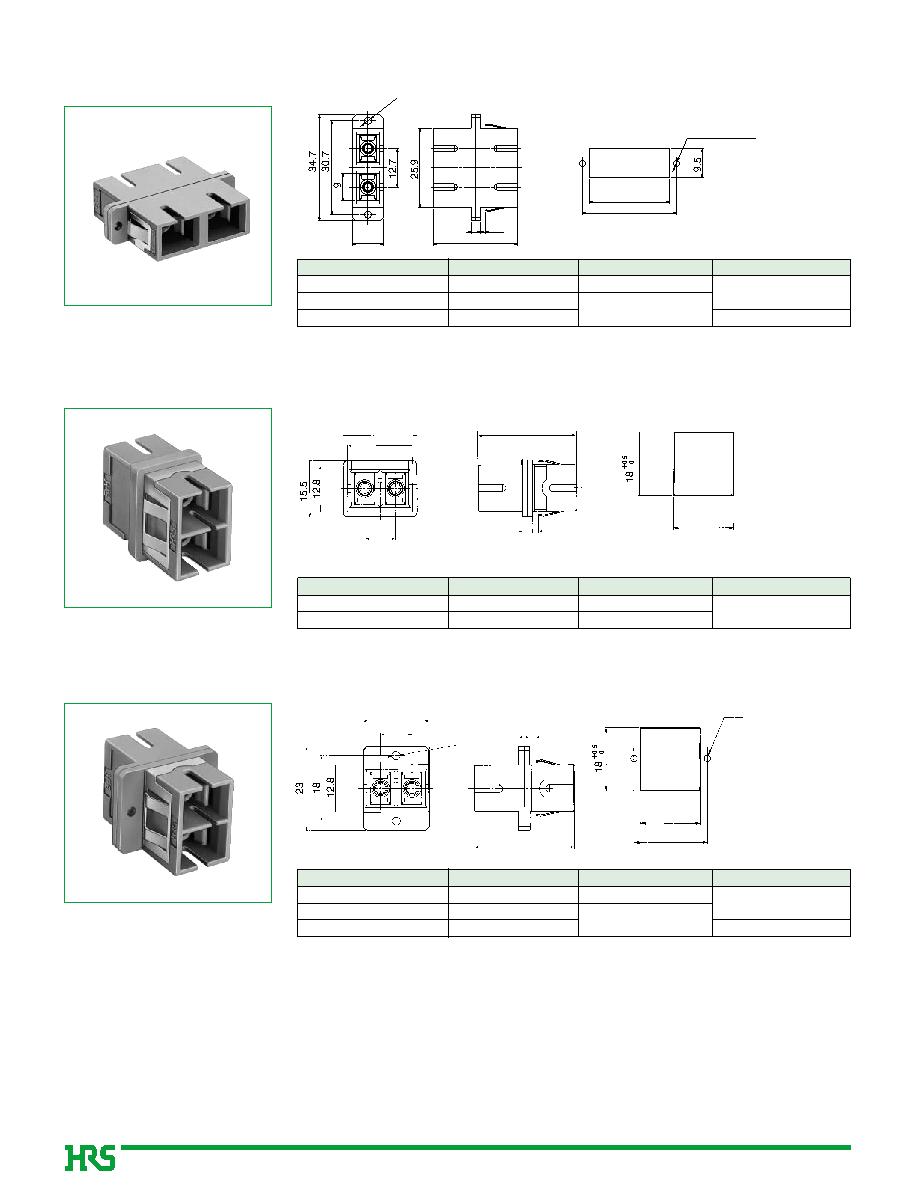

Part Number

CL No.

Split sleeve

Color

HSCH-2A1(P)(51)

704-2066-2-51

Copper sleeve

Blue

HSCH-2A1-D(P)(02)

704-2117-1-02

Zirconia

Part Number

CL No.

Split sleeve

Color

HSCF-2A(P)(51)

704-2008-6-51

Copper sleeve

Blue

HSCF-2A-D(P)(06)

704-2040-9-06

Zirconia

HSCF-2A-D2(P)(06)

704-2112-8-06

Green

1.8

27.4

9.4

Ø2.3

26.2 +0.3

30.7±0.1

×0.4 or

2.4

+0.2

sAdapters

qF type Snap-in and/or Screw Mounting

BPanel cut-out

qH type Snap-in

qH type Snap-in and/or Screw Mounting

+0.3

18±0.1

+0.2

M2∞0.4 or Ø2.4

27.4

1.8

20.5

17.9

27.4

1.8

Ø2.3

(8.5)

+0.3

Panel thickness: 1.6mm

17.9

Part Number

CL No.

Split sleeve

Color

HSCH-2A(P)(51)

704-2020-1-51

Copper sleeve

Blue

HSCH-2A-D(P)(02)

704-2062-1-02

Zirconia

HSCH-2A-D2(P)(03)

704-2108-0-03

Green
