39 / 118 page

IS25LP032D

IS25WP032D

Integrated Silicon Solution, Inc.- www.issi.com

Rev. A12

08/04/2020

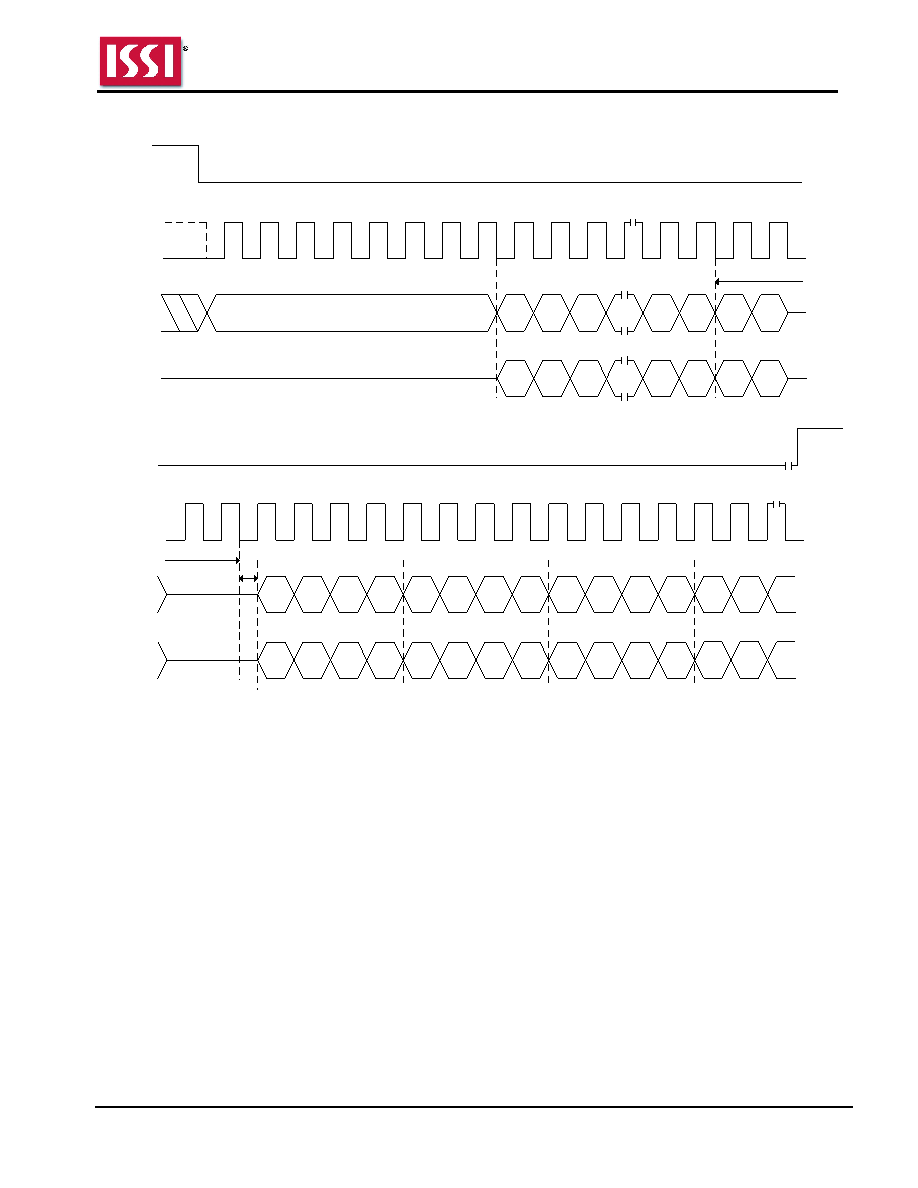

Figure 8.4 Fast Read Dual I/O Sequence (with command decode cycles)

Data Out 1

Instruction = BBh

CE #

SCK

3-byte Address

High Impedance

...

Mode 3

Mode 0

...

IO0

IO1

4 Dummy Cycles

...

CE #

SCK

IO0

IO1

Data Out 2

Data Out 3

Mode Bits

Notes:

1. If the mode bits=AXh (

where X is don’t care), it can execute the AX read mode (without command). When the mode

bits are different from AXh, the device exits the AX read operation.

2. Number of dummy cycles depends on clock speed. Detailed information in Table 6.11 Read Dummy Cycles.

3. Sufficient dummy cycles are required to avoid I/O contention. If the number of dummy cycles and AX bit cycles are

same, then X should be Hi-Z.
