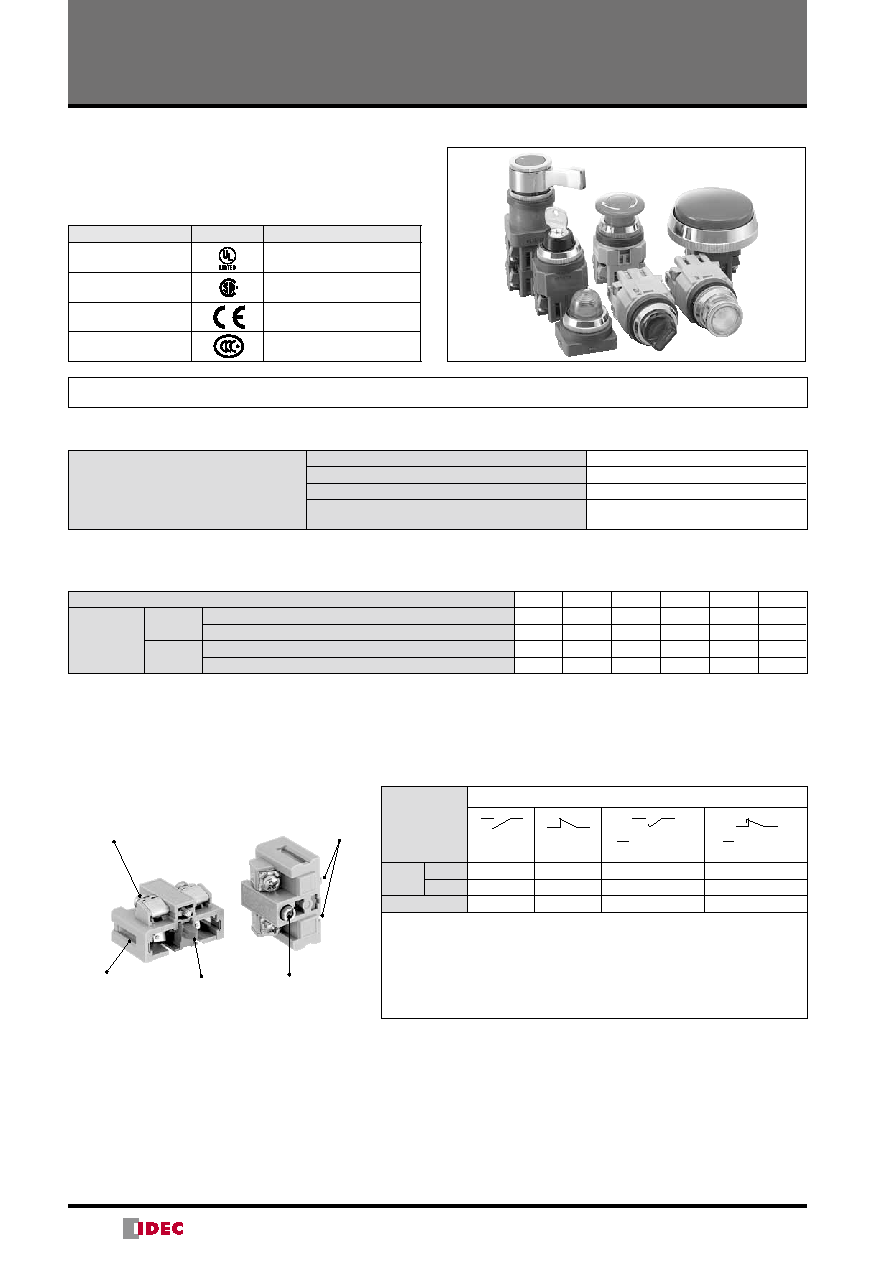

1 / 51 page  16 ø30 Series Switches & Pilot Lights Heavy duty switches & pilot lights offer both variety and reliability Endures harsh environments •Degree of protection: IP65 •UL, CSA approved, and EN compliant. Applicable Standards Mark File No. or Organization UL 508 UL Listing File No. E68961 CSA C22.2 No.14 CSA File No. LR21451 EN60947-5-1 EU Low Voltage Directive GB14048.5 CCC No. 200501030514658 Specifications and Ratings Contact Ratings Pushbuttons Illuminated Pushbuttons Selector Switches Illuminated Selector Switches Selector Pushbuttons Contact Block BS/BST (ø30 series) Rated Insulation Voltage 600V Rated Continuous Current 10A Contact Ratings by Utilization Category IEC 60947-5-1 AC-15 (A600) DC-13 (P600) Characteristics Contact Ratings by Utilization Category Operational Voltage 24V 48V 50V 110V 220V 440V Operational Current AC 50/60 Hz AC-12 Control of resistive loads and solid state loads 10A — 10A 10A 6A 2A AC-15 Control of electromagnetic loads (> 72 VA) 10A — 7A 5A 3A 1A DC DC-12 Control of resistive loads and solid state loads 10A 5A — 2.2A 1.1A — DC-13 Control of electromagnets 5A 2A — 1.1A 0.6A — Note: The operational current represents the classification by making and breaking currents (IEC 60947-5-1). Minimum applicable load: 3V AC/DC, 5 mA (applicable range may vary with operating conditions and load types) For mono-levers and cam switches, see pages 55 and 58. BS (BST) Contact Block •Durable nylon 66 housing has a high resistance against alkalis. •Silver contacts. Gold contact (gold-plated silver) also available. •Up to four blocks in two layers can be mounted onto each operator. Contact Blocks Contact Single-pole Contact Block 1NO 1NC 1NO (early make) 1NC (late break) Part No. BS BS010E BS001E BS010SE BS001SE BST BST010 BST001 BST010S BST001S Push Rod Green Red Black White BST contact blocks are used for the following switches and are not interchangeable with BS contact blocks. (The BS housing is dark gray and the BST housing is light gray.) •Pushlock turn reset and push turn lock switches •LED illuminated pushbuttons •LED/incandescent illuminated selector switches •All models of diecast zinc housing swiches & pilot lights Push Rod M3.5 Terminal Screw Inspection Window Interlock ingGroove Mounting Screw (14/03/18) |
