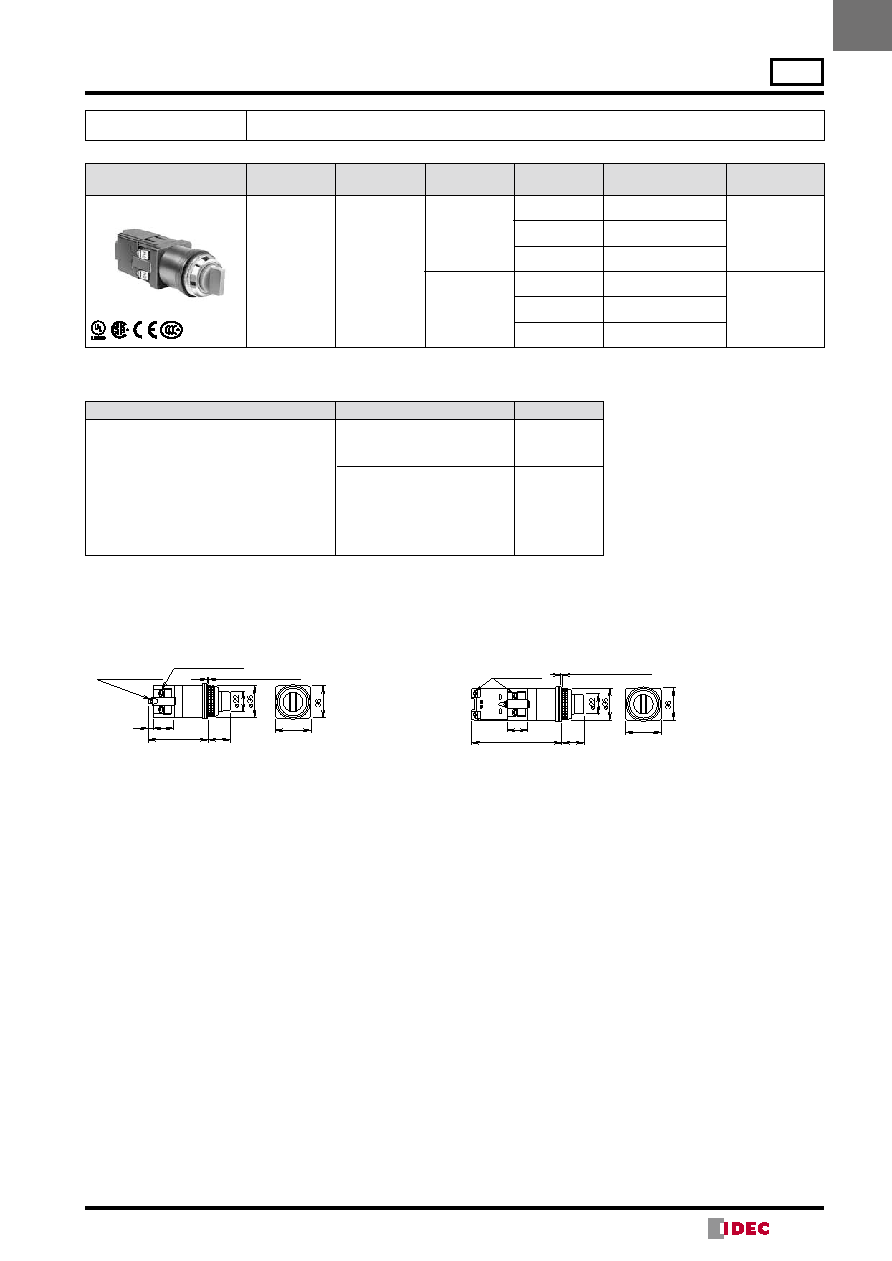

ø30 Series Illuminated Pushbuttons ø30

Incandescent

Push Turn Lock Illuminated Pushbuttons

Package Quantity: 1

Shape

Lamp Recep-

tacle

Operation

Lamp

Contact

Part No.

Applicable Lamp

ALNL

BA9S

Push Turn Lock

Without Lamp

1NO-1NC

ALN9L911➁

See page 75 for

lamps.

2NO

ALN9L920➁

2NC

ALN9L902➁

Incandescent

1NO-1NC

ALN➂11➁

LS-*

2NO

ALN➂20➁

2NC

ALN➂02➁

Color Code and Operating Voltage Code

Specify a code in place of ➁ or ➂ in the Part No.

➁ Lens Color Code

➂ Operating Voltage Code

Input

Specify a lens color code in place of ➁.

G: green

O: orange

R: red

blue

W: white

6L6: 6V AC/DC

8L8: 12V AC/DC

3L3: 24V AC/DC

Full voltage

1L6: 100/110V AC

12L6: 120V AC

2L6: 200/220V AC

24L6: 240V AC

38L6: 380V AC

4L6: 400/440V AC

48L6: 480V AC

Transformer

•

Push Turn Lock: Knob is maintained when turned clockwise in the depressed position and is reset when turned counterclockwise.

Dimensions

90 (4 blocks)

67 (2 blocks)

Panel Thickness 0.8 to 5

M3 Terminal Screw

M3.5 Terminal Screw

M3.5 Terminal

Screws

101 (2 blocks)

124 (4 blocks)

Panel Thickness 0.8 to 5

ALN*L

BA9S/Full Voltage

ALN*L

BA9S/Transformer

All dimensions in mm.

ø30
