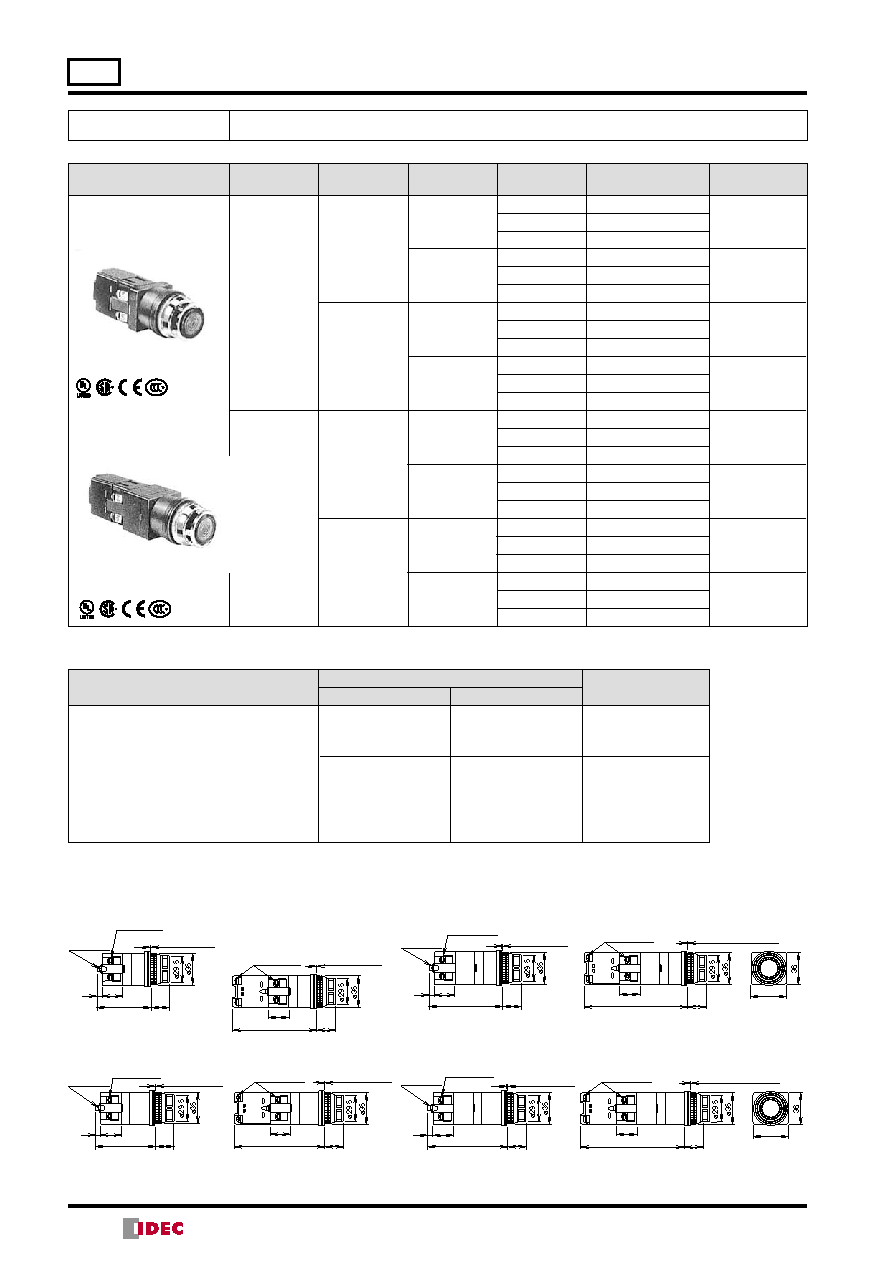

21 / 51 page  36 ø30 ø30 Series Illuminated Pushbuttons Incandescent Round Extended with Full Shroud Illuminated Pushbuttons Package Quantity: 1 Shape Lamp Recep- tacle Operation Lamp Contact Part No. Applicable Lamp Round Extended ALNF ALNEF AOLNF AOLNEF BA9S Momentary Without Lamp 1NO-1NC ALN9F911➁ See page 75 for lamps. 2NO ALN9F920➁ 2NC ALN9F902➁ Incandescent 1NO-1NC ALN➂11➁ LS-* 2NO ALN➂20➁ 2NC ALN➂02➁ Maintained Without Lamp 1NO-1NC AOLN9F911➁ See page 75 for lamps. 2NO AOLN9F920➁ 2NC AOLN9F902➁ Incandescent 1NO-1NC AOLN➂11➁ LS-* 2NO AOLN➂20➁ 2NC AOLN➂02➁ E12 Momentary Without Lamp 1NO-1NC ALNE9F911➁ See page 75 for lamps. 2NO ALNE9F920➁ 2NC ALNE9F902➁ Incandescent 1NO-1NC ALN➂11➁ LE-* 2NO ALN➂20➁ 2NC ALN➂02➁ Maintained Without Lamp 1NO-1NC AOLNE9F911➁ See page 75 for lamps. 2NO AOLNE9F920➁ 2NC AOLNE9F902➁ Incandescent 1NO-1NC AOLN➂11➁ LE-* 2NO AOLN➁20➁ 2NC AOLN➂02➁ Color Code and Operating Voltage Code Specify a code in place of ➁ or ➂ in the Part No. ➁ Lens Color Code ➂ Operating Voltage Code Input Incandescent (BA9S) Incandescent (E12) Specify a lens color code in place of ➁. C: clear G: green O: orange R: red S: blue W: white 6F6: 6V AC/DC 8F8: 12V AC/DC 3F3: 24V AC/DC E6F6: 6V AC/DC E8F8: 12V AC/DC E3F3: 24V AC/DC Full voltage 1F6: 100/110V AC 12F6: 120V AC 2F6: 200/220V AC 24F6: 240V AC 38F6: 380V AC 4F6: 400/440V AC 48F6: 480V AC 1F8: 100/110V AC 12F8: 120V AC 2F8: 200/220V AC 24F8: 240V AC 38F8: 380V AC 4F8: 400/440V AC 48F8: 480V AC Transformer Dimensions M3 Terminal Screw M3.5 Terminal Screw 83 (4 blocks) 60 (2 blocks) 21 Panel Thickness 0.8 to 5 6 23 105(4blocks) 82(2blocks) 21 PanelThickness 0.8to5 6 23 M3Terminal Screw M3.5Terminal Screw M3.5 Terminal Screws 116 (2 blocks) 139 (4 blocks) 23 Panel Thickness 0.8 to 5 40 21 90(4blocks) 67(2blocks) 21 PanelThickness 0.8to5 6 23 M3Terminal Screw M3.5Terminal Screw M3.5 Terminal Screws 101 (2 blocks) 124 (4 blocks) 23 Panel Thickness 0.8 to 5 21 112(4blocks) 89(2blocks) 21 PanelThickness 0.8to5 6 23 M3Terminal Screw M3.5Terminal Screw M3.5 Terminal Screws 123 (2 blocks) 146 (4 blocks) 23 Panel Thickness 0.8 to 5 40 21 ALN*F Momentary BA9S/Full Voltage AOLN*F Maintained BA9S/Full Voltage ALN*F Momentary BA9S/Transformer ALON*F Maintained BA9S/Transformer ALNE*F Momentary E12/Full Voltage ALN*F Momentary E12/Transformer AOLNE*F Maintained E12/Full Voltage AOLN*F Maintained E12/Transformer All dimensions in mm. M3.5 Terminal Screws 94 (2 blocks) 117 (4 blocks) 23 Panel Thickness 0.8 to 5 21 (14/03/18) |
|
