Data Sheet
ADRF6521
Rev. 0 | Page 21 of 33
0
1.5
VGN VOLTAGE (V)
40
0
5
10
15
20
25
30
35
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4
+85°C
+25°C
–40°C

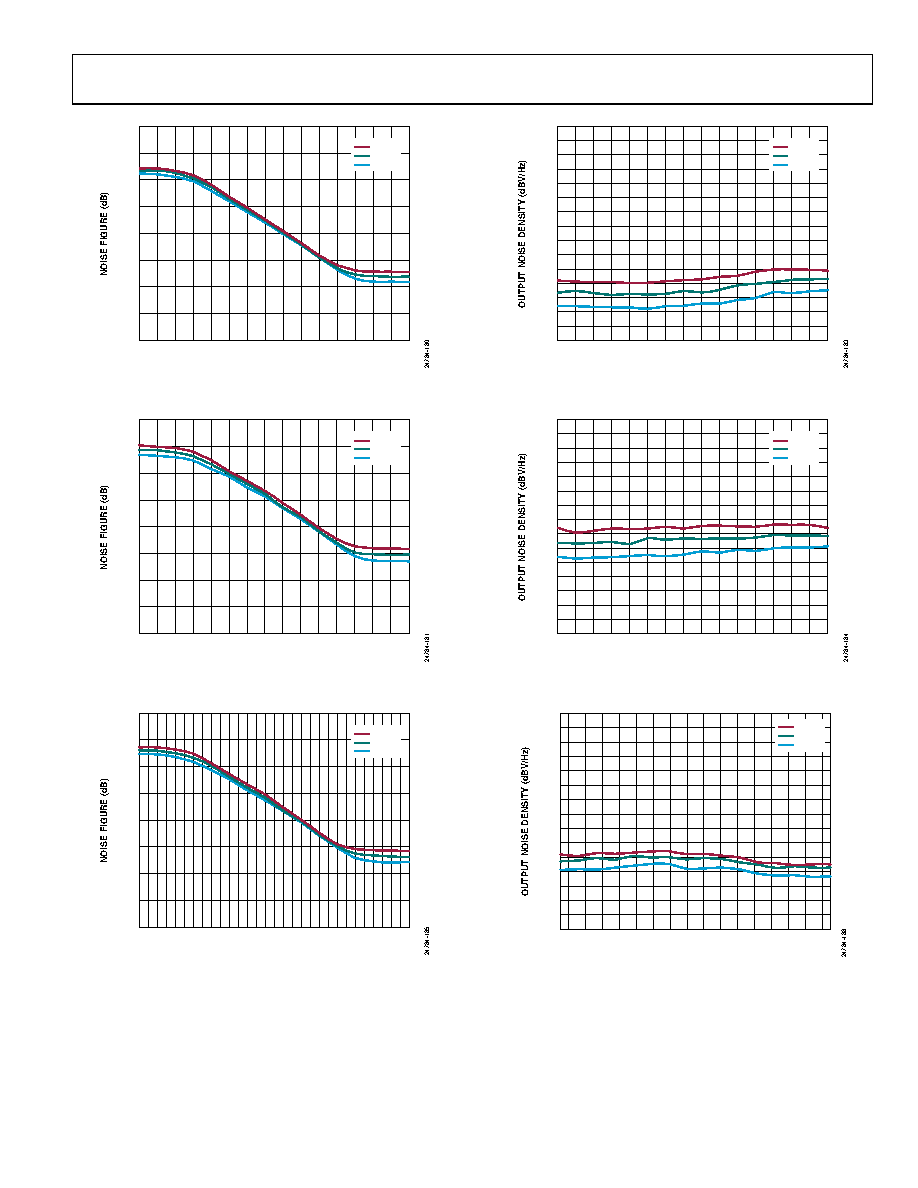

Figure 72. Noise Figure vs. VGN Voltage over Temperature at 1 GHz
0
1.5
VGN VOLTAGE (V)
40
0
5
10
15
20
25
30
35
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4
+85°C
+25°C
–40°C
Figure 73. Noise Figure vs. VGN Voltage over Temperature at 2 GHz
0
1.5
VGN VOLTAGE (V)
40
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4
5
10
15
20
25
30
35
+85°C
+25°C
–40°C
Figure 74. Noise Figure vs. VGN Voltage over Temperature at 3 GHz
0
1.5
VGN VOLTAGE (V)
–150
–165
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4
–164
–163
–162
–161
–160
–159
–158
–157
–156
–155
–154
–153
–152
–151
+85°C
+25°C
–40°C
Figure 75. Output Noise Density vs. VGN Voltage over Temperature at 1 GHz
0
1.5
VGN VOLTAGE (V)
–150
–165
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4
–164
–163
–162
–161
–160
–159
–158
–157
–156
–155
–154
–153
–152
–151
+85°C
+25°C
–40°C
Figure 76. Output Noise Density vs. VGN Voltage over Temperature at 2 GHz
0
1.5
VGN VOLTAGE (V)
–150
–165
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4
–164
–163
–162
–161
–160
–159
–158
–157
–156
–155
–154
–153
–152
–151
+85°C
+25°C
–40°C
Figure 77. Output Noise Density vs. VGN Voltage over Temperature at 3 GHz
