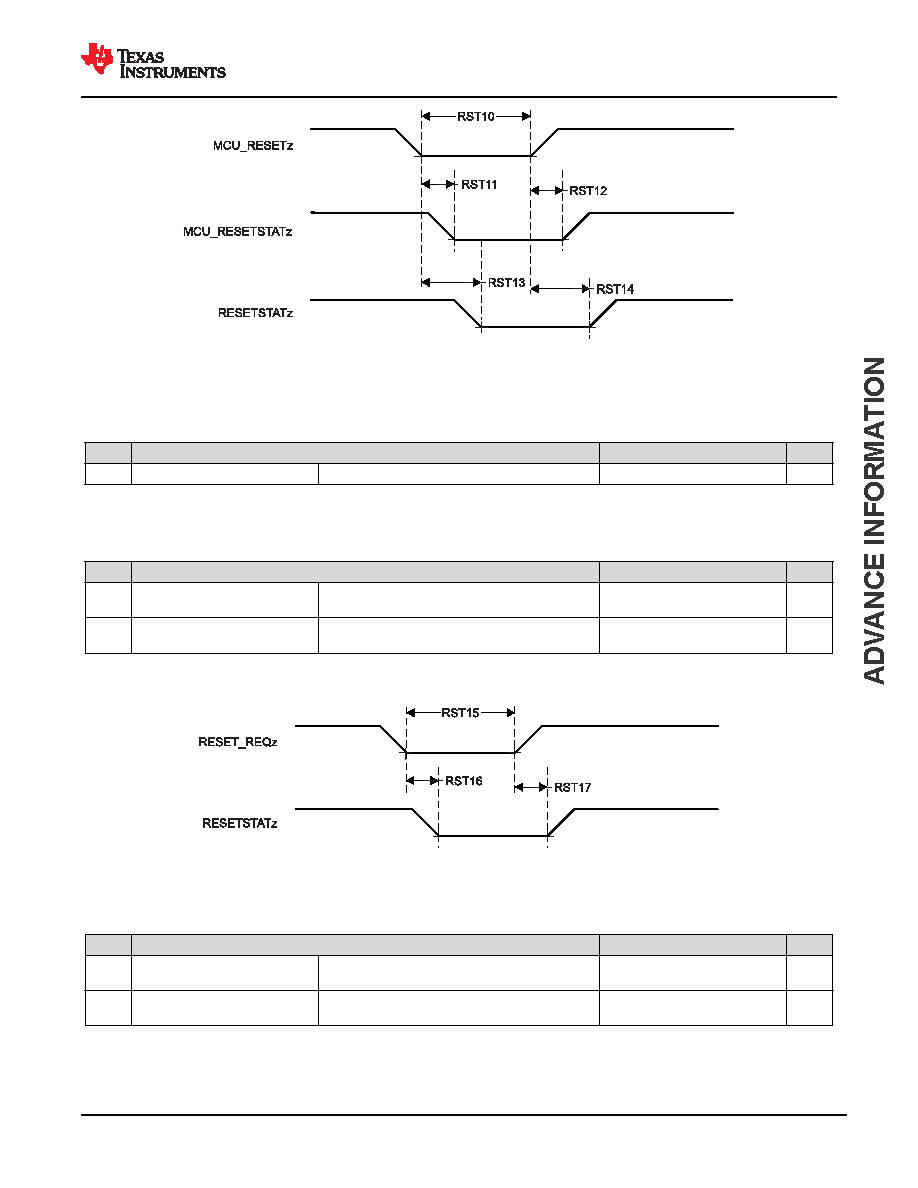

119 / 244 page  Figure 7-9. MCU_RESETz, MCU_RESETSTATz, and RESETSTATz Timing Requirements and Switching Characteristics Table 7-9. RESET_REQz Timing Requirements see Figure 7-10 NO. PARAMETER MIN MAX UNIT RST15 tw(RESET_REQzL) (1) Pulse Width minimum, RESET_REQz active (low) 1200 ns (1) This timing parameter is valid only after all supplies are valid and MCU_PORz has been asserted for the specified time. Table 7-10. RESETSTATz Switching Characteristics see Figure 7-10 NO. PARAMETER MIN MAX UNIT RST16 td(RESET_REQzL-RESETSTATzL) Delay time, RESET_REQz active (low) to RESETSTATz active (low) T(1) ns RST17 td(RESET_REQzH-RESETSTATzH) Delay time, RESET_REQz inactive (high) to RESETSTATz inactive (high) W(2) ns (1) T = Reset Isolation Time (Software Dependent) (2) W = Max [300 μs (Typical) from RESETz_REQz inactive (high), Reset Isolation Time + 300 μs (TYP) from RESET_REQz active (low)] Figure 7-10. RESET_REQz and RESETSTATz Timing Requirements and Switching Characteristics Table 7-11. EMUx Timing Requirements see Figure 7-11 NO. PARAMETER MIN MAX UNIT RST18 tsu(EMUx-MCU_PORz) Setup time, EMU[1:0] before MCU_PORz inactive (high) 3*S(1) ns RST19 th(MCU_PORz - EMUx) Hold time, EMU[1:0] after MCU_PORz inactive (high) 10 ns (1) S = MCU_OSC0_XI/XO clock period www.ti.com AM6442, AM6441, AM6421, AM6412, AM6411 SPRSP56D – JANUARY 2021 – REVISED JULY 2022 Copyright © 2022 Texas Instruments Incorporated Submit Document Feedback 119 Product Folder Links: AM6442 AM6441 AM6421 AM6412 AM6411 |
|
