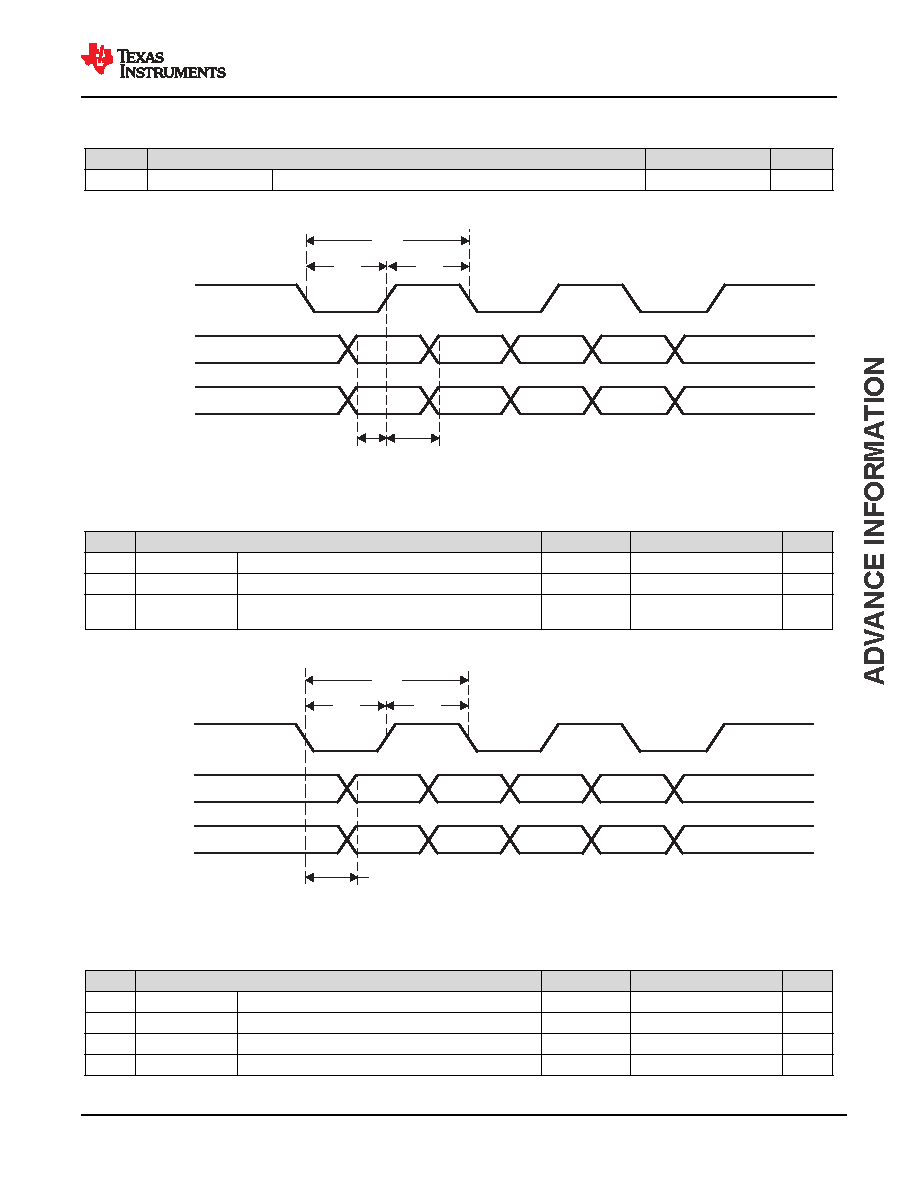

141 / 244 page  Table 7-45. FSI Timing Requirements (continued) see Figure 7-36 NO. MIN MAX UNIT FSIR4 th(RX_CLK-RX_D) Hold time, FSI_RXn_D[1:0] valid after FSI_RXn_CLK 2.5 ns (1) P = FSI_RXn_CLK period in ns. FSI_RXn_CLK FSIR2 FSIR1 FSIR3 FSI_RXn_D0 FSI_RXn_D1 FSIR4 FSIR2 Figure 7-36. FSI Timing Requirements Table 7-46. FSI Switching Characteristics - FSI Mode see Figure 7-37 NO. PARAMETER MODE MIN MAX UNIT FSIT1 tc(TX_CLK) Cycle time, FSI_TXn_CLK FSI Mode 20 ns FSIT2 tw(TX_CLK) Pulse width, FSI_TXn_CLK low or FSI_TXn_CLK high FSI Mode 0.5p + 1 (1) 0.5P - 1 (1) ns FSIT3 td(TX_CLK-TX_D) Delay time, FSI_TXn_D[1:0] valid after FSI_TXn_CLK high or FSI_TXn_CLK low FSI Mode 0.25P - 2 (1) 0.25P + 2.5 (1) ns (1) P = FSI_TXn_CLK period in ns. FSI_TXn_CLK FSIT2 FSIT1 FSIT3 FSI_TXn_D0 FSI_TXn_D1 FSIT2 FSIT1 Figure 7-37. FSI Switching Characteristics - FSI Mode Table 7-47. FSI Switching Characteristics - SPI Mode see Figure 7-38 NO. PARAMETER MODE MIN MAX UNIT FSIT4 tc(TX_CLK) Cycle time, FSI_TXn_CLK SPI Mode 20 ns FSIT5 tw(TX_CLK) Pulse width, FSI_TXn_CLK low or FSI_TXn_CLK high SPI Mode 0.5P + 1 (1) 0.5P - 1 (1) ns FSIT6 td(TX_CLKH-TX_D0) Delay time, FSI_TXn_CLK high to FSI_TXn_D0 valid SPI Mode 3 ns FSIT7 td(TX_D1-TX_CLK) Delay time, FSI_TXn_D1 low to FSI_TXn_CLK high SPI Mode P - 3 (1) ns www.ti.com AM6442, AM6441, AM6421, AM6412, AM6411 SPRSP56D – JANUARY 2021 – REVISED JULY 2022 Copyright © 2022 Texas Instruments Incorporated Submit Document Feedback 141 Product Folder Links: AM6442 AM6441 AM6421 AM6412 AM6411 |
|
