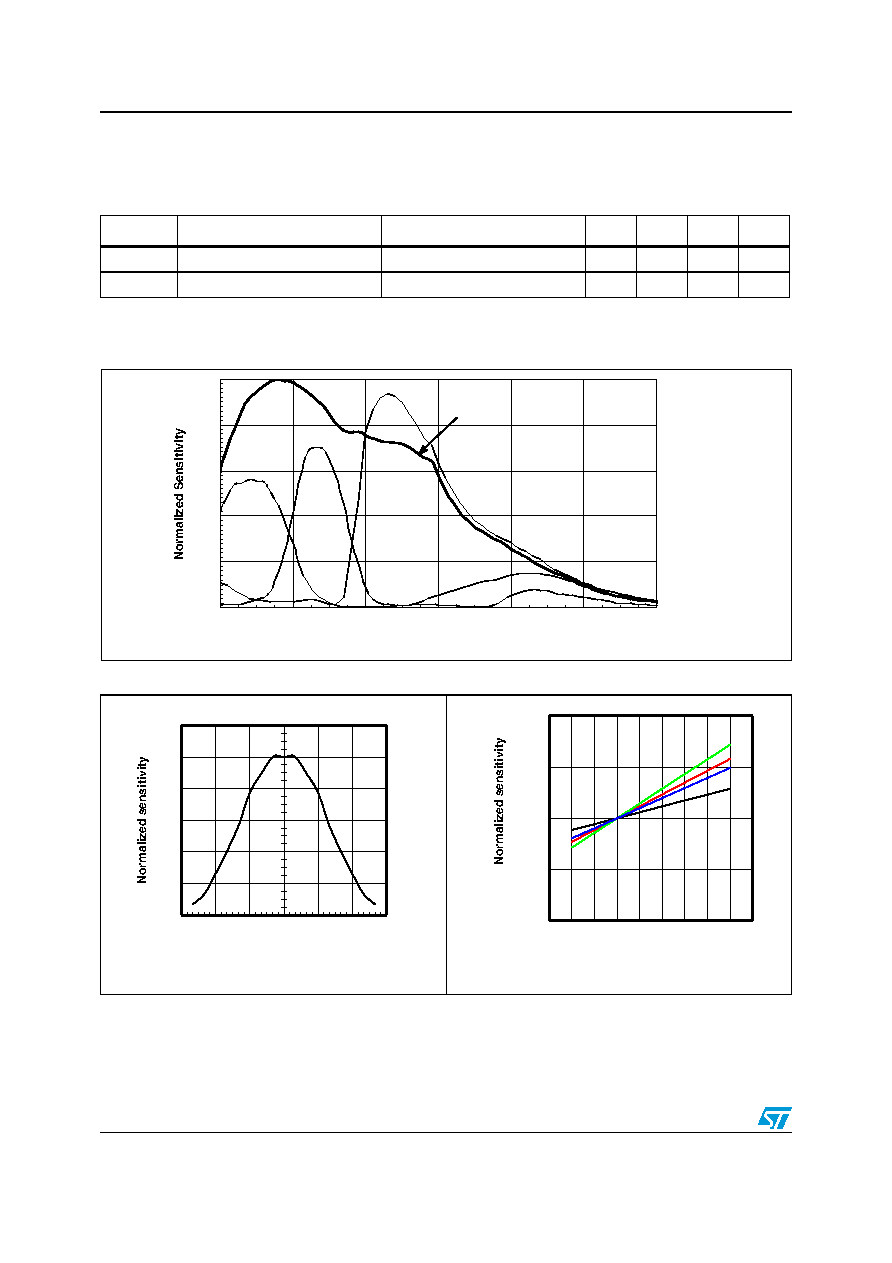

Optical characteristics
VM6101
12/17
5
Optical characteristics
Figure 6.
Spectral response
Table 4.
Optical characteristics (1)
1.
Using typical operating conditions: TA = 25 °C, VDD = 3.3 V
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
E
Irradiance range
0.0001
800
Wm-2
Ev
Illuminance range
0.03
170k
lx
Angular response
0.0
0.2
0.4
0.6
0.8
1.0
1.2
-90
-60
-30
0
30
60
90
Incident light angle (degrees)
0.0
0.2
0.4
0.6
0.8
1.0
400
500
600
700
800
900
1000
Wavelength (nm )
Red
Green
Blue
Y
Figure 7.
Angular response
Figure 8.
Relative output versus temperature
0.0
0.2
0.4
0.6
0.8
1.0
1.2
-90
-60
-30
0
30
60
90
Incident light angle (degrees)
0.0
0.2
0.4
0.6
0.8
1.0
1.2
-90
-60
-30
0
30
60
90
0.7
0.8
0.9
1.0
1.1
1.2
1.3
-10 0
10 20 30 40 50 60 70 80
Temperature (°C)
0.7
0.8
0.9
1.0
1.1
1.2
1.3
-10 0
10 20 30 40 50 60 70 80
Temperature (°C)
0.900
0.950
1.000
1.050
1.100
-10 0
10 20 30 40 50 60 70 80
Temperature (°C)
Y
B
R
G
