VM6101
Mechanical information
15/17
7
Mechanical information

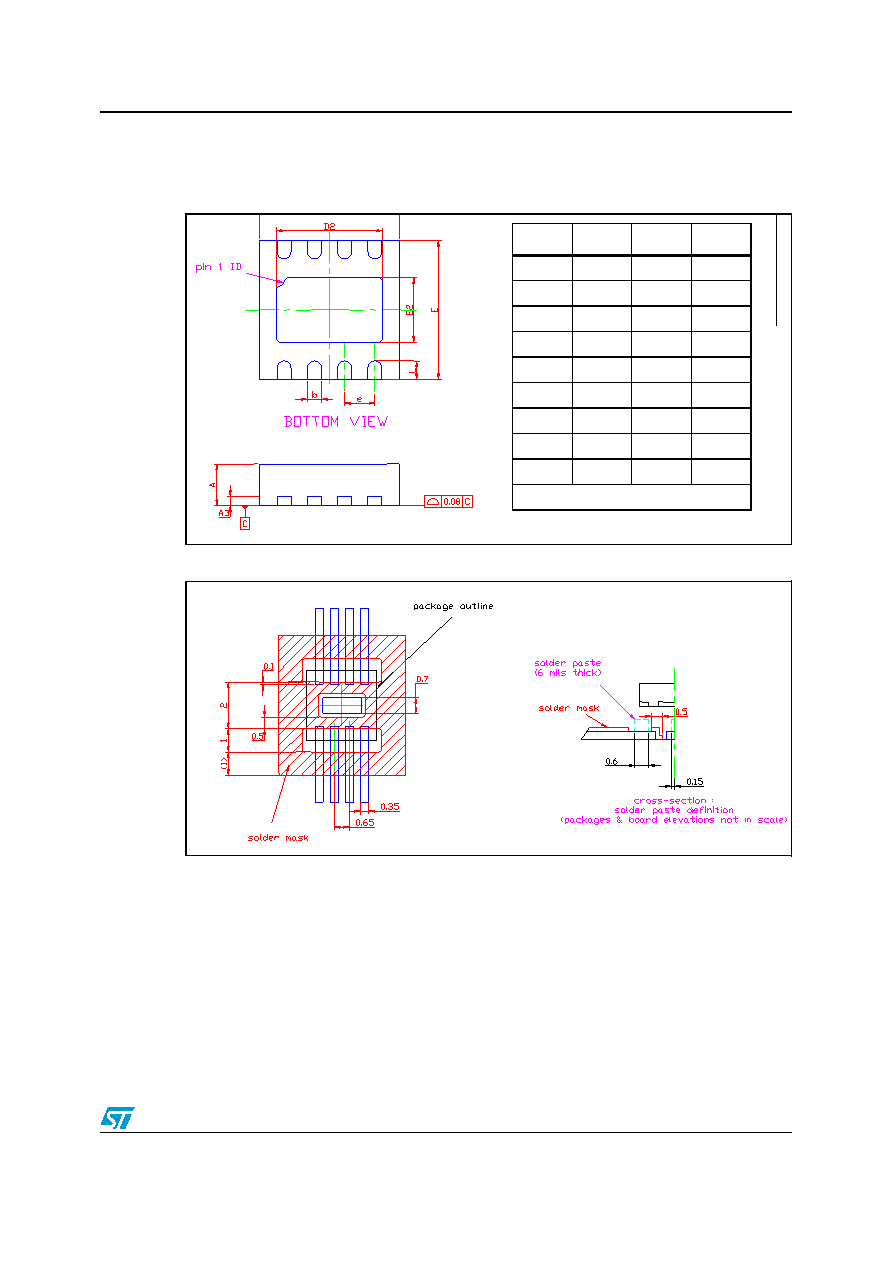

Figure 10.
8-lead MLPD package outline
Figure 11.
Recommended PCB layout
0.65
0.7
2.35
2.20
1.00
1.15
0.55
0.60
Symbol
Min
Typ
Max
A0.65
0.7
0.75
A3
0.20
b
0.250.300.35
D
2.903.003.10
D2
2.20
2.35
2.45
E
2.903.003.10
E2
1.00
1.15
1.25
e0.65
L
0.550.600.65
All dimensions in millimeters
