STEVAL-ROBOKIT1

Features

•

Modular design for different Robotics applications

•

Based on High-Performance STM32H7 MCU

•

DC Motor + STM32G0 Controller for navigation

•

TOF sensor for Obstacle, Cliff detection

•

Monochrome Camera

•

On board external Flash and PSRAM memories

•

Mobile App to control using phone

•

6-axis IMU sensor for Odometer

•

Magnetometer for position accuracy

•

Audio signal sensing using Low-distortion digital microphone

•

Sound indication using Buzzer

•

BLE Connectivity using certified BlueNRG-M2SA module

•

LEDs & Keys for User interface

•

40 pin Raspberry Pi compatible GPIO Connector

Description

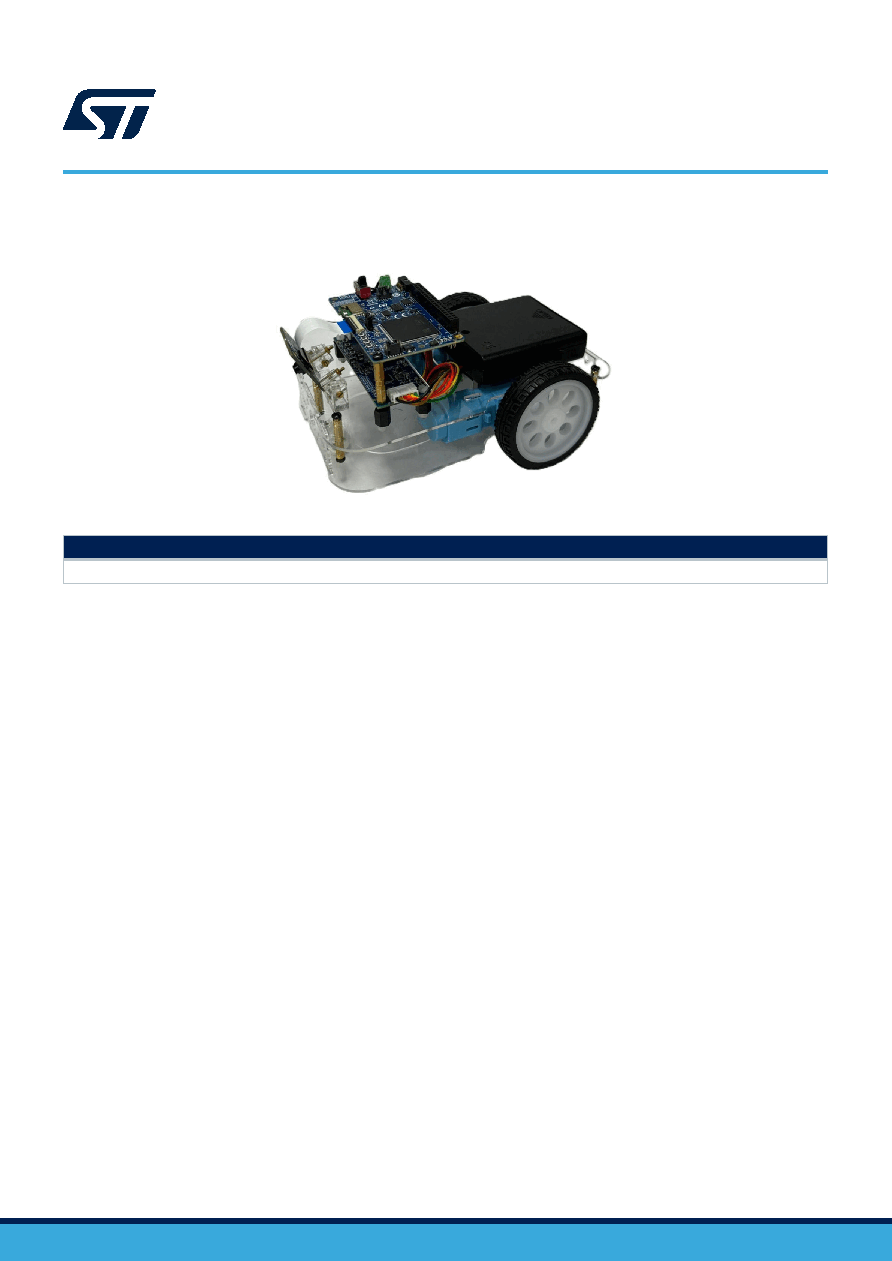

STEVAL-ROBKIT1 is a comprehensive robotics evaluation kit designed as a platform for the development of robotic technology

and its applications.

The kit has a modular design, which consists of three boards: main board, motor control board, and imaging board.

The main board is powered by an STM32H725 MCU, which integrates various functionalities and controls the motor board and

the imaging board.

The motor board is based on a STM32G071 microcontroller, dedicated for motor control and actuation using motor drivers to

regulate the speed and direction of the robot's movements.

The imaging board is equipped with a Time-of-Flight (ToF) sensor and a camera module enabling it to perceive and interact with

its surroundings intelligently.

Evaluation kit for Robotics applications

STEVAL-ROBKIT1

Data brief

DB5348 - Rev 1 - December 2024
