FT201X USB I2C SLAVE IC Datasheet

Version 1.4

Document No.: FT_000627 Clearance No.: FTDI# 264

Future Technology Devices

International Ltd.

FT201X

(USB I2C SLAVE IC)

The FT201X is a USB to I2C interface

with the following advanced features:



Single chip USB to I2C slave interface.



Up to 3.4MHz, high speed mode, I2C supported



Entire USB protocol handled on the chip. No

USB specific firmware programming required.



Fully

integrated

2048

byte

multi-time-

programmable (MTP) memory, storing device

descriptors and CBUS I/O configuration.



Fully integrated clock generation with no

external crystal required plus optional clock

output selection enabling a glue-less interface

to external MCU or FPGA.



512 byte receive buffer and 512 byte transmit

buffer utilising buffer smoothing technology to

allow for high data throughput.



FTDI’s royalty-free Virtual Com Port (VCP) and

Direct

(D2XX)

drivers

eliminate

the

requirement for USB driver development in

most cases.



Configurable CBUS I/O pins.



Transmit and receive LED drive signals.



USB Battery Charger Detection. Allows for USB

peripheral devices to detect the presence of a

higher power source to enable improved

charging.



Device supplied pre-programmed with unique

USB serial number.



USB Power Configurations; supports bus-

powered, self-powered and bus-powered with

power switching.



Integrated +3.3V level converter for USB I/O.



True 3.3V CMOS drive output and TTL input;

Operates down to 1V8 with external pull-ups.

Tolerant of 5V input.



Configurable I/O pin output drive strength; 4

mA (min) and 16 mA (max).



Integrated power-on-reset circuit.



Fully integrated AVCC supply filtering - no

external filtering required.



+ 5V Single Supply Operation.



Internal 3V3/1V8 LDO regulators



Low operating and USB suspend current; 8mA

(active-typ) and 125uA (suspend-typ).



UHCI/OHCI/EHCI host controller compatible.



USB 2.0 Full Speed compatible.



Extended operating temperature range; -40 to

85⁰C.



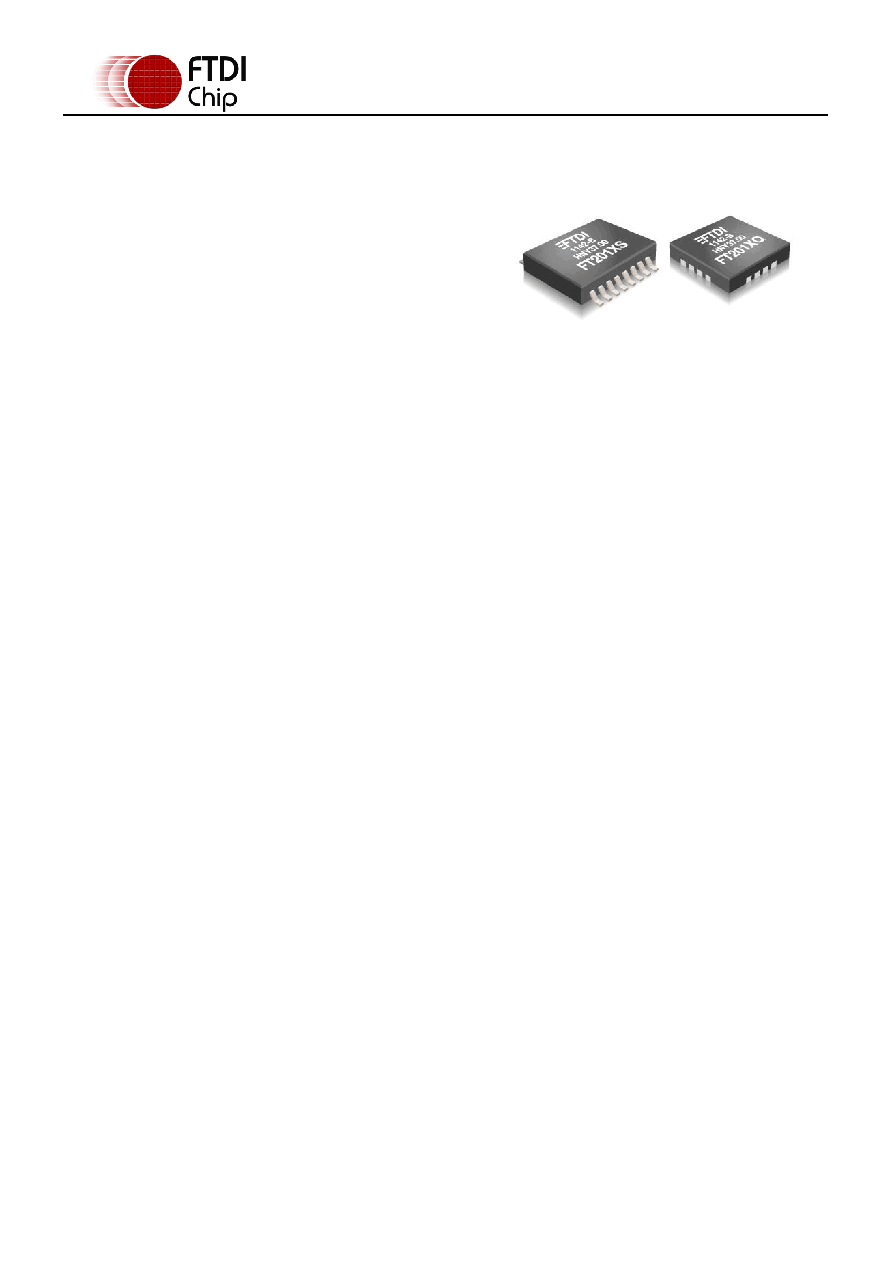

Available in compact Pb-free 16 Pin SSOP and

QFN packages (both RoHS compliant).
