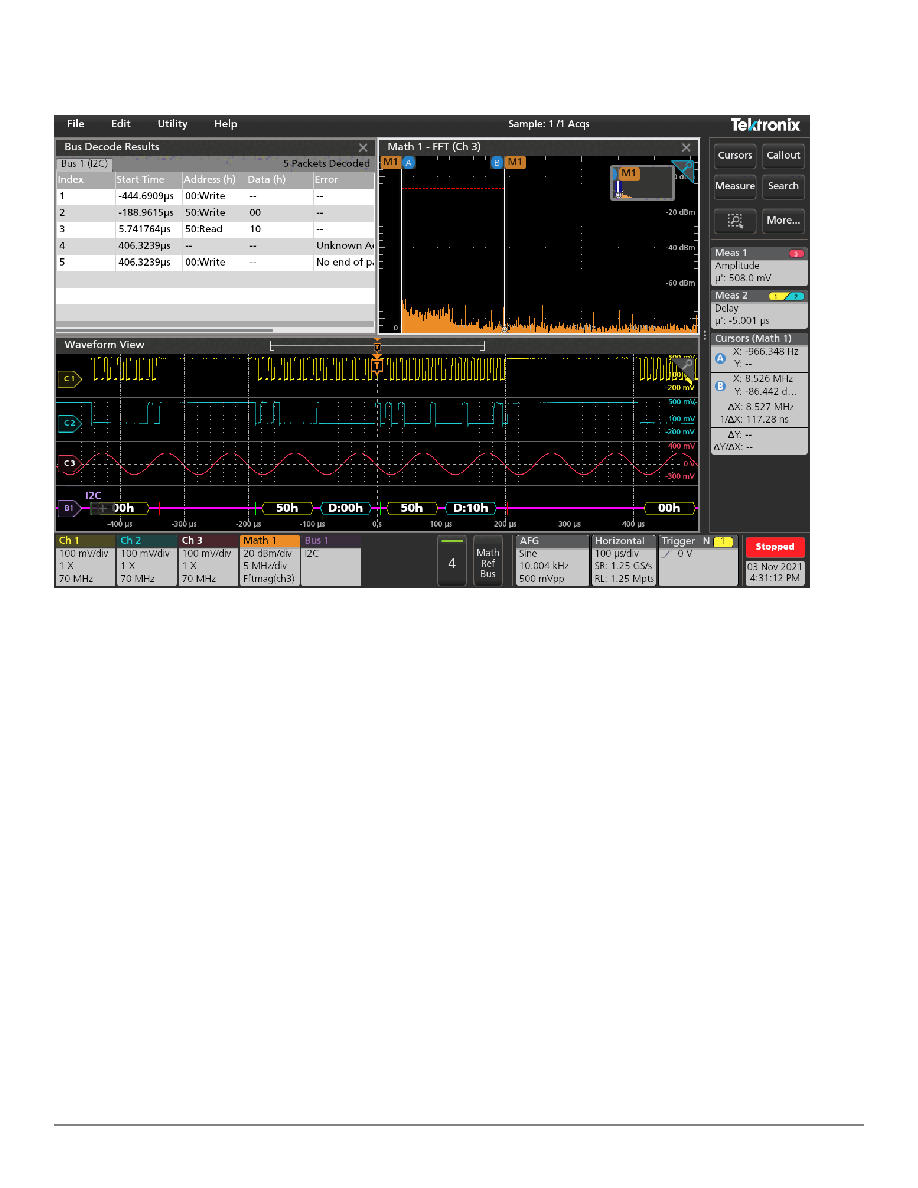

Simultaneously view analog channels, decoded serial bus waveform, results table, measurement results, math FFT plot, and cursor readouts along with the setup information for each

input with the highly customizable user interface.

Exceptionally easy to use interface with comprehensive

analysis for fast insight

The user interface on the 2 Series MSO is designed from the ground up

for touch operation. All the key information is presented as a series of

badges with visual cues to show association. Get immediate access to

instrument configuration or waveform management tasks with a single

tap.

The 2 Series MSO offers a revolutionary new stacked display mode in

this class, Traditionally all the waveforms were overlayed on a single

graticule leading to unwanted tradeoffs:

• Vertical scale and position of each waveform needs to be adjusted

so that they do not overlap, resulting in usage of only a small

percentage of the ADC range leading to inaccurate measurements.

• Adjusting the waveform vertical scale and position leads to overlap,

making it difficult to distinguish details on an individual waveform.

In the stacked display mode, each waveform gets its own slice

(additional graticule) representing the full ADC range to enable

maximum visibility and accuracy. Groups of channels can also be

overlayed to enable visual comparison of signals.

The 2 Series MSO offers a comprehensive set of standard analysis

tools including:

• Waveform and screen-based cursors with user-selectable

readout location.

• 36 automated measurements with measurement statistics and

gating, the ability to add an unlimited number of measurements,

navigate from one occurrence to the next, and immediate

viewing of the minimum or maximum result.

•

Basic and advanced waveform math including arbitrary

equation editing.

• Basic FFT analysis with options to view magnitude or phase,

multiple options to customize window type, gating, and units.

The large display in the 2 Series MSO provides plenty of viewing

area not only for signals, but also for plots, measurement results

tables, bus decode tables, and more. You can easily resize and

relocate the various views to suit your needs.
