Triggering

Discovering a device fault is only the first step. Next, you must capture

the event of interest to identify root cause. The 2 Series MSO provides

a complete set of advanced triggers, including runt, logic, pulse width,

triggers, timeout, rise/fall time, setup and hold, serial packet, and

parallel data that can be used to capture complex infrequent events.

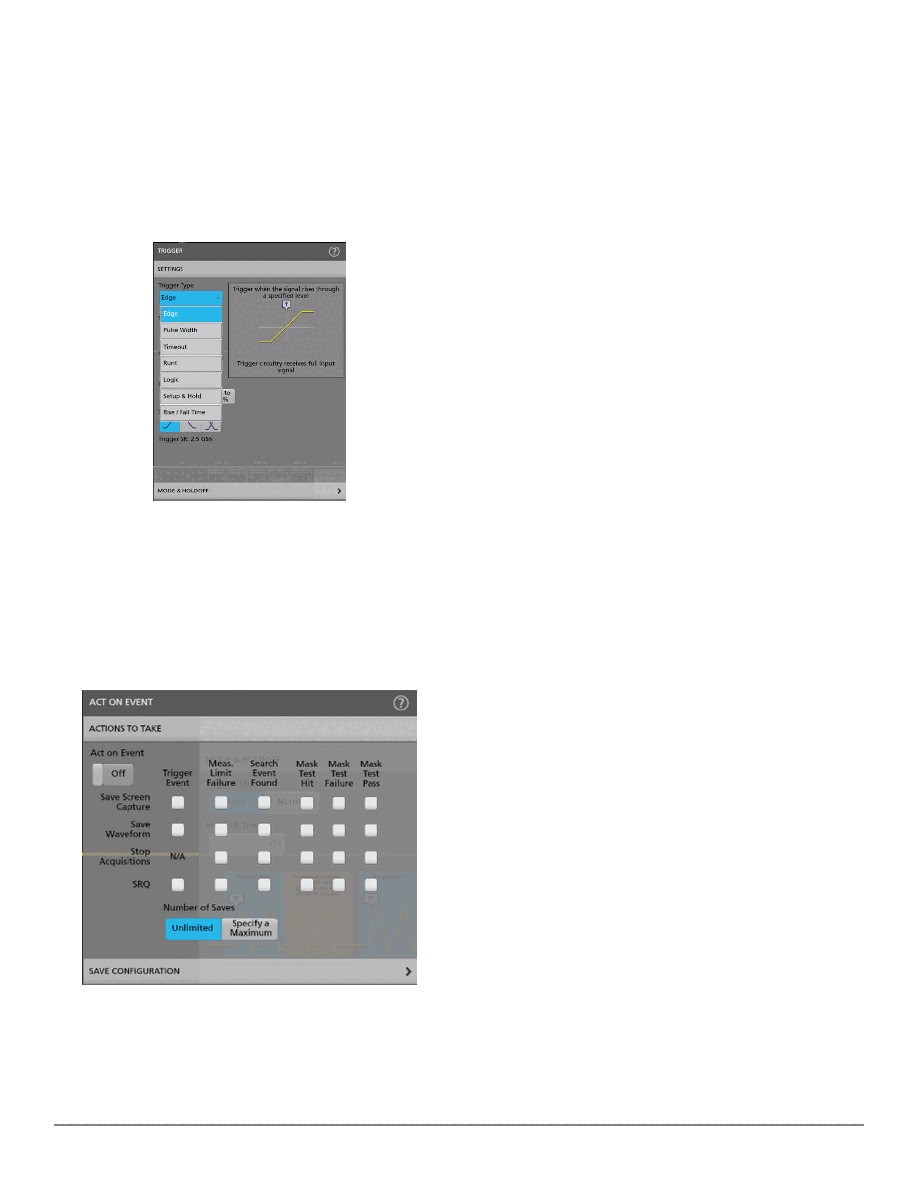

Configuration menus are accessed by simply double tapping on the item of interest. In

this case trigger badge was tapped to open trigger menu

Act on event

Act on event capability built into the instrument enables users to setup

the oscilloscope to respond by performing certain actions when a

specified condition such as trigger event, measurement limit failure,

search event or mask test events occur. This enables easy capture and

analysis of rarely occurring events.

An oscilloscope can be automated using the Act on event feature when a certain event

occurs

Navigation and search

With up to 10 M point record length, you can capture many events of

interest, even thousands of serial packets in a single acquisition, while

maintaining high resolution to zoom in on fine signal details.

Finding events of interest in a long waveform record can be time

consuming without the right search tools.

The search feature allows you to automatically search through your

acquisition for user-defined events. All occurrences of the event are

highlighted with search marks for easy navigation. Search types include

edge, pulse width, timeout, runt, window, logic, setup and hold, rise/fall

time, and parallel/serial bus packet content. You can also quickly jump

to the minimum and maximum value of search results.

Callouts

Documenting test results and methods are critical when sharing data

across a team, recreating a measurement later or delivering a customer

report.

With a few taps on the screen, you can create as many custom

callouts as needed, enabling you to document the specific details on

the waveforms. With each callout, you can customize the text, location,

color, font size, and font.
