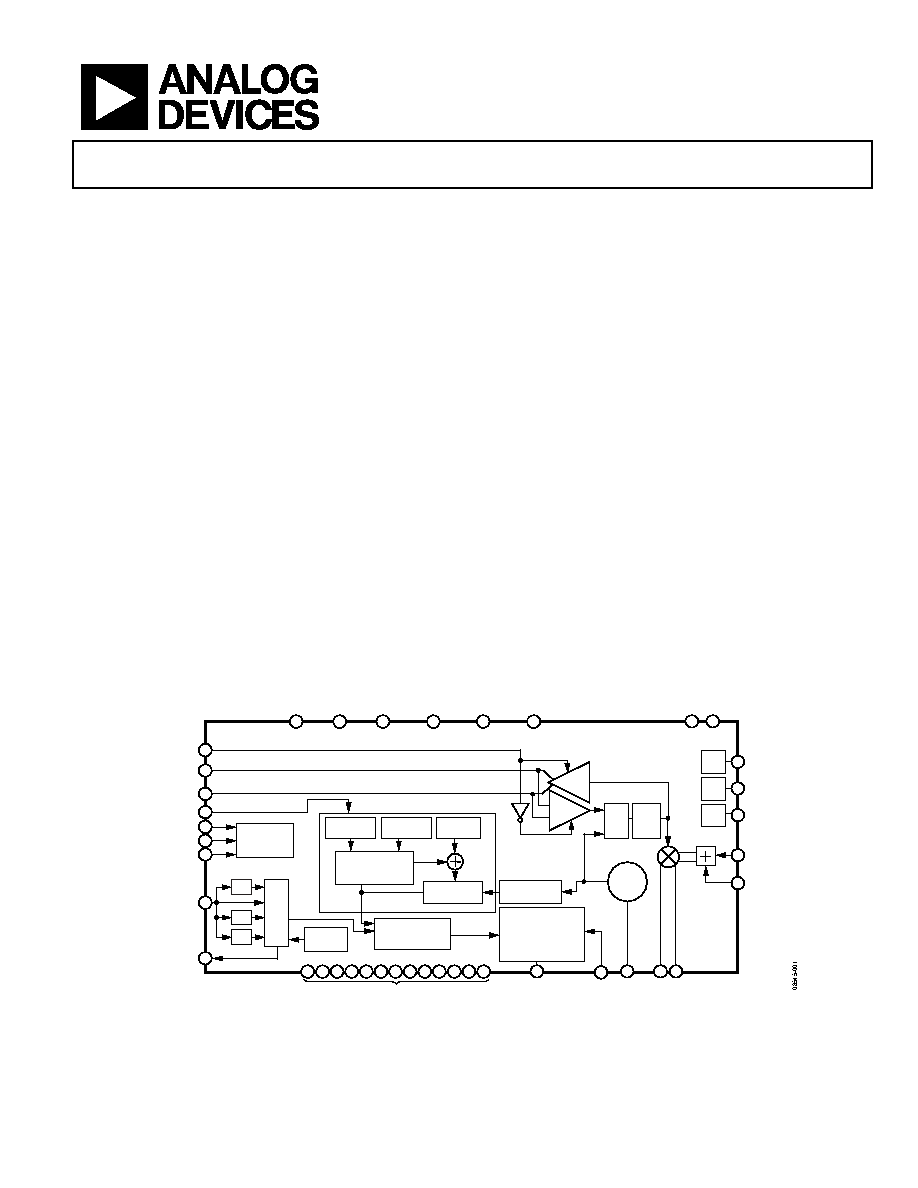

1550 MHz to 2150 MHz Rx Mixer with

Integrated Fractional-N PLL and VCO

ADRF6602

Rev. 0

Information furn

responsibilityis

rightsofthirdpar

license is grante

Trademarksand

9106, U.S.A.

analog.com

s reserved.

ished by Analog Devices is believed to be accurate and reliable. However, no

assumedbyAnalogDevicesforitsuse,norforanyinfringementsof patentsorother

tiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No

d by implication or otherwise under any patent or patent rights of Analog Devices.

registeredtrademarksarethepropertyoftheirrespectiveowners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-

Tel: 781.329.4700

www.

Fax: 781.461.3113

FEATURES

Rx mixer with integrated fractional-N PLL

RF input frequency range: 1000 MHz to 3100 MHz

Internal LO frequency range: 1550 MHz to 2150 MHz

Input P1dB: 14.5 dBm

Input IP3: 30 dBm

IIP3 optimization via external pin

SSB noise figure

IP3SET pin open: 13.5 dB

IP3SET pin at 3.3 V: 14 dB

Voltage conversion gain: 6 dB

Matched 200 Ω IF output impedance

IF 3 dB bandwidth: 500 MHz

Programmable via 3-wire SPI interface

40-lead, 6 mm × 6 mm LFCSP

APPLICATIONS

Cellular base stations

GENERAL DESCRIPTION

The ADRF6602 is a high dynamic range active mixer with

integrated phase-locked loop (PLL) and voltage-controlled

oscillator (VCO). The PLL/synthesizer uses a fractional-N

PLL to generate an fLO input to the mixer. The reference input

can be divided or multiplied and then applied to the PLL phase

frequency detector (PFD).

The PLL can support input reference frequencies from 12 MHz

to 160 MHz. The PFD output controls a charge pump whose

output drives an off-chip loop filter.

The loop filter output is then applied to an integrated VCO. The

VCO output at 2× fLO is applied to an LO divider, as well as to a

programmable PLL divider. The programmable PLL divider is

controlled by a Σ-Δ modulator (SDM). The modulus of the SDM

can be programmed from 1 to 2047.

The active mixer converts the single-ended 50 Ω RF input to

a 200 Ω differential IF output. The IF output can operate up

to 500 MHz.

The ADRF6602 is fabricated using an advanced silicon-germanium

BiCMOS process. It is available in a 40-lead, RoHS-compliant,

6 mm × 6 mm LFCSP with an exposed paddle. Performance is

specified over the −40°C to +85°C temperature range.

FUNCTIONAL BLOCK DIAGRAM

V

MUX

RSET

CP VTUNE

LODRV_EN

LON

LOP

IP3SET

CC1

VCC2

VCC_LO

VCC_MIX

VCC_V2I

V

2:1

MUX

VCO

CORE

RFIN

TEMP

SENSOR

DECLVCO

DECL2P5

DECL3P3

BUFFER

IFP IFN

CC_LO

NC NC

32

33

1

10

17

22

27

34

–

+

CHARGE PUMP

250µA,

500µA (DEFAULT),

750µA,

1000µA

PRESCALER

÷2

LE

CLK

SPI

INTERFACE

DATA

MUXOUT

3.3V

LDO

2.5V

LDO

VCO

LDO

ADRF6602

INTERNAL LO RANGE

1550MHz TO 2150MHz

36

DIV

BY

4, 2, 1

2

37

9

38

PLL_EN

REF_IN

GND

19

18

39

3

5

4

8

6

14

13

12

16

7

11 15 20 21 23 24 25 28 30 31 35

40

FRACTION

REG

MODULUS

INTEGER

REG

26

THIRD-ORDER

FRACTIONAL

INTERPOLATOR

29

PHASE

FREQUENCY

DETECTOR

N COUNTER

21 TO 123

×2

÷2

÷4

Figure 1.
