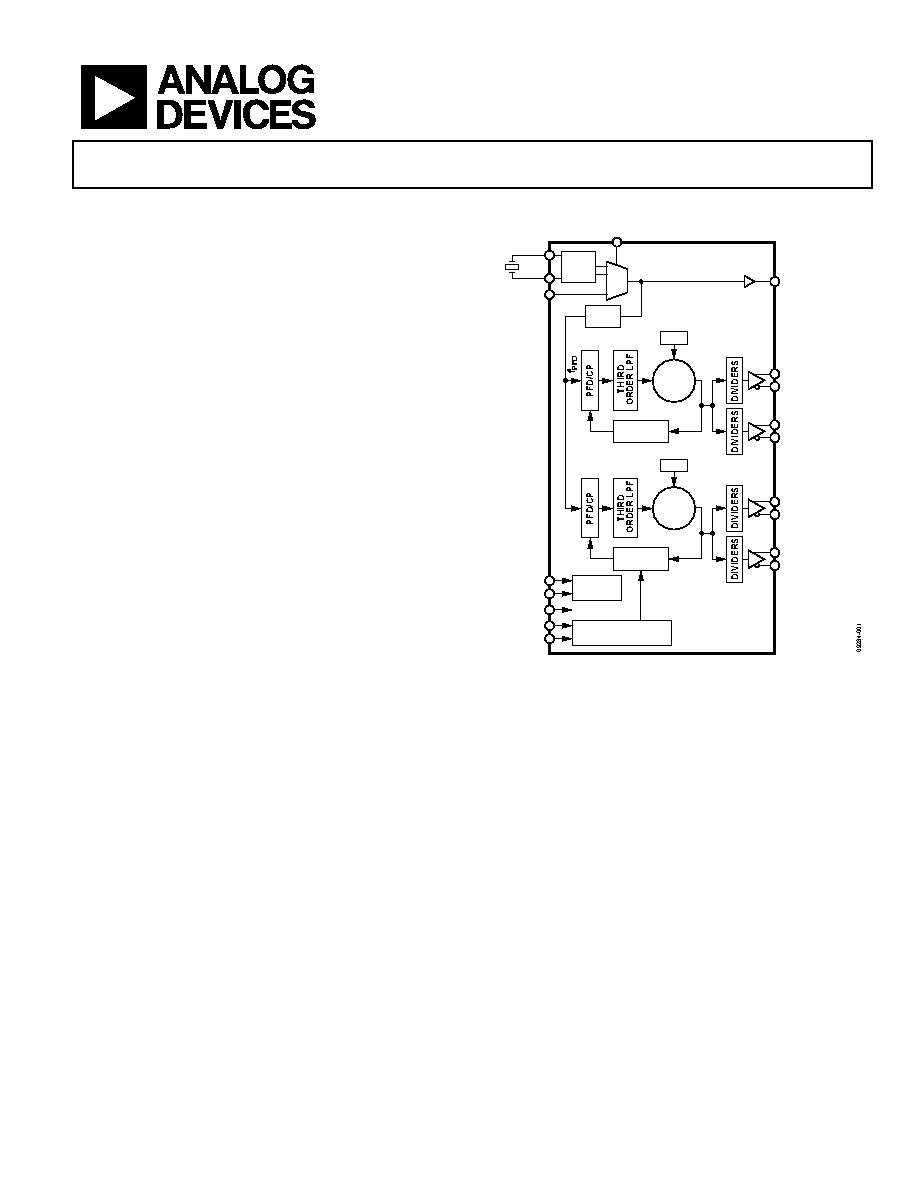

1 / 44 page

Clock Generator with Dual PLLs,

Spread Spectrum, and Margining

Data Sheet

AD9577

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibilityis assumedbyAnalogDevicesforitsuse,norforanyinfringements of patents or other

rightsofthirdpartiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

www.analog.com

Fax: 781.461.3113

FEATURES

Fully integrated dual PLL/VCO cores

1 integer-N and 1 fractional-N PLL

Continuous frequency coverage from 11.2 MHz to 200 MHz

Most frequencies from 200 MHz to 637.5 MHz available

PLL1 phase jitter (12 kHz to 20 MHz): 460 fs rms typical

PLL2 phase jitter (12 kHz to 20 MHz)

Integer-N mode: 470 fs rms typical

Fractional-N mode: 660 fs rms typical

Input crystal or reference clock frequency

Optional reference frequency divide-by-2

I2C programmable output frequencies

Up to 4 LVDS/LVPECL or up to 8 LVCMOS output clocks

1 CMOS buffered reference clock output

Spread spectrum: downspread [0, −0.5]%

2 pin-controlled frequency maps: margining

Integrated loop filters

Space saving, 6 mm × 6 mm, 40-lead LFCSP package

1.02 W power dissipation (LVDS operation)

1.235 W power dissipation (LVPECL operation)

3.3 V operation

APPLICATIONS

Low jitter, low phase noise multioutput clock generator for

data communications applications including Ethernet,

Fibre Channel, SONET, SDH, PCI-e, SATA, PTN, OTN,

ADC/DAC, and digital video

Spread spectrum clocking

GENERAL DESCRIPTION

The AD9577 provides a multioutput clock generator function,

along with two on-chip phase-locked loop cores, PLL1 and PLL2,

optimized for network clocking applications. The PLL designs

are based on the Analog Devices, Inc., proven portfolio of high

performance, low jitter frequency synthesizers to maximize

network performance. The PLLs have I2C programmable output

frequencies and formats. The fractional-N PLL can support

spread spectrum clocking for reduced EMI radiated peak power.

Both PLLs can support frequency margining. Other applications

with demanding phase noise and jitter requirements can benefit

from this part.

The first integer-N PLL section (PLL1) consists of a low noise phase

frequency detector (PFD), a precision charge pump (CP), a low

phase noise voltage controlled oscillator (VCO), a programmable

FUNCTIONAL BLOCK DIAGRAM

XTAL

OSC

REFCLK

XT1

XT2

MARGIN

REFSEL

CMOS

AD9577

DIVIDE

1 OR 2

VCO

2.15GHz

TO

2.55GHz

LDO

FEEDBACK

DIVIDER

LVPECL/LVDS

REFOUT

OR 2 × CMOS

LVPECL/LVDS

OR 2 × CMOS

PLL1

VCO

2.15GHz

TO

2.55GHz

LDO

FEEDBACK

DIVIDER

LVPECL/LVDS

OR 2 × CMOS

LVPECL/LVDS

OR 2 × CMOS

PLL2

SCL

SDA

I2C

CONTROL

SSCG

MAX_BW

SPREAD SPECTRUM,

SDM

Figure 1.

feedback divider, and two independently programmable output

dividers. By connecting an external crystal or applying a reference

clock to the REFCLK pin, frequencies of up to 637.5 MHz can

be synchronized to the input reference. Each output divider and

feedback divider ratio is I2C programmed for the required

output rates.

A second fractional-N PLL (PLL2) with a programmable modulus

allows VCO frequencies that are fractional multiples of the

reference frequency to be synthesized. Each output divider

and feedback divider ratio can be programmed for the required

output rates, up to 637.5 MHz. This fractional-N PLL can also

operate in integer-N mode for the lowest jitter.

Up to four differential output clock signals can be configured

as either LVPECL or LVDS signaling formats. Alternatively,

the outputs can be configured for up to eight CMOS outputs.

Combinations of these formats are supported. No external loop

filter components are required, thus conserving valuable design

time and board space. The AD9577 is available in a 40-lead, 6 mm ×

6 mm LFCSP package and can operate from a single 3.3 V supply.

The operating temperature range is −40°C to +85°C.
