Rev 1.0 9/14

EM346

High-Performance, Integrated Dual ZigBee PRO & RF4CE

Network Coprocessor

Features

- 32-bit ARM® Cortex -M3 processor

- 2.4 GHz IEEE 802.15.4-2003 transceiver & lower MAC

- 192 kB flash, with optional read protection

- 12 kB RAM memory

- AES128 encryption accelerator

- UART/SPI serial communications

- 16 GPIOs

Industry-leading ARM® Cortex -M3 processor

- Leading 32-bit processing performance

- Highly efficient Thumb-2 instruction set

- Operation at 6, 12, or 24 MHz

- Flexible Nested Vectored Interrupt Controller

Low power consumption, advanced management

- RX Current (w/ CPU): 26 mA

- TX Current (w/ CPU, +3 dBm TX): 31 mA

- Low deep sleep current, with retained RAM and GPIO:

400 nA without/800 nA with sleep timer

- Low-frequency internal RC oscillator for low-power sleep

timing

- High-frequency internal RC oscillator for fast (110 µs)

processor start-up from sleep

Exceptional RF Performance

- Normal mode link budget up to 103 dB; configurable up

to 110 dB

- –100 dBm normal RX sensitivity; configurable to 

–102 dBm (1% PER, 20 byte packet)

- Configurable up to +8 dBm

- Robust Wi-Fi and Bluetooth coexistence

Innovative network and processor debug

- Packet Trace Port for non-intrusive packet trace with

Ember development tools

- Serial Wire/JTAG interface

- Standard ARM debug capabilities: Flash Patch & Break-

point; Data Watchpoint & Trace; Instrumentation Trace

Macrocell

Application Flexibility

- Single voltage operation: 2.1–3.6 V with internal 1.8 and

1.25 V regulators

- Optional 32.768 kHz crystal for higher timer accuracy

- Low external component count with single 24 MHz 

crystal

- Support for external power amplifier

- Small 7x7 mm 48-pin QFN package

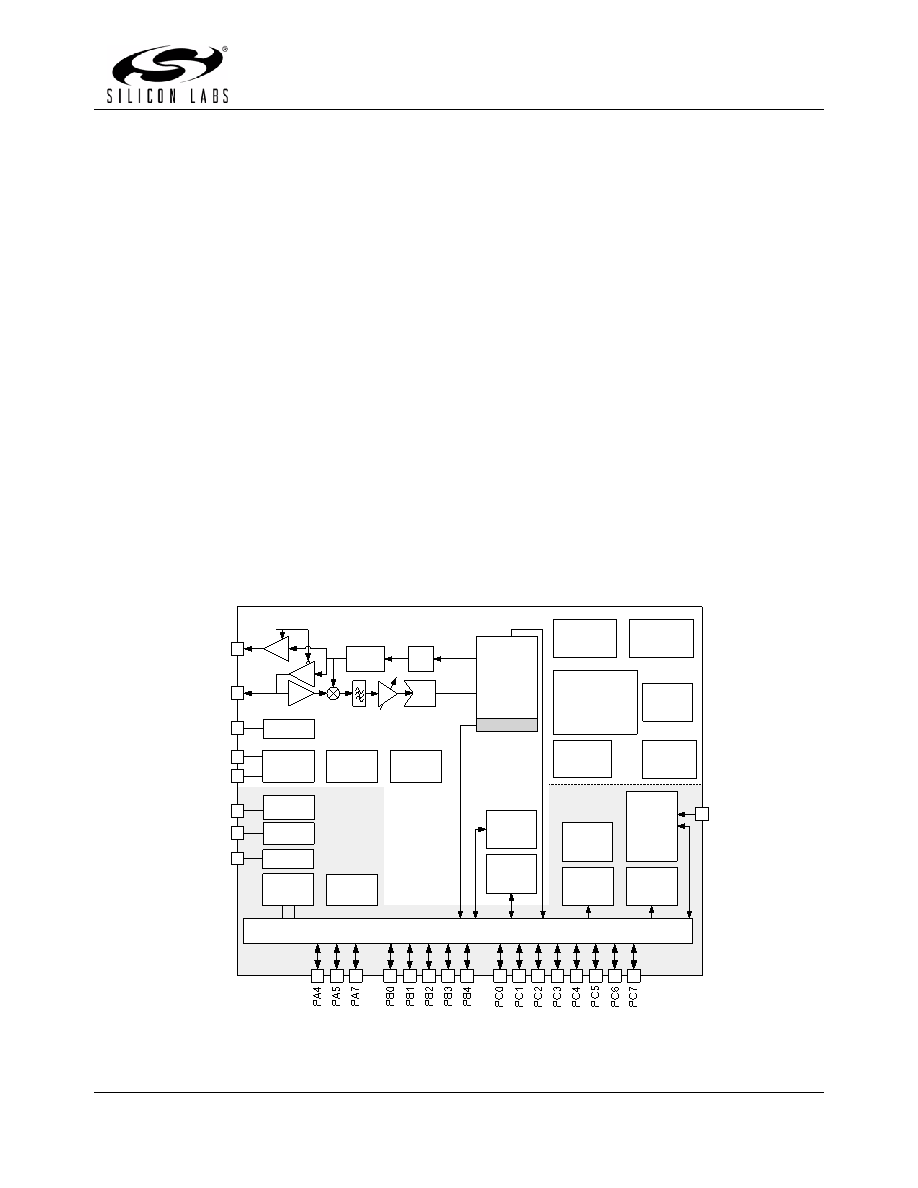

ADC

RF_P,N

Program

Flash

192kB

Data

SRAM

12kB

HF crystal

OSC

LF crystal

OSC

Serial

Wire and

JTAG

debug

Internal LF

RC-OSC

GPIO multiplexor switch

Chip

manager

1.8V

Regulator

Bias

2nd level

Interrupt

controller

RF_TX_ALT_P,N

OSCA

OSCB

Encryption

acclerator

IF

Always

Powered

Domain

ARM® Cortex-M3TM

CPU with NVIC

and MPU

VREG_OUT

Watchdog

PA select

LNA

PA

DAC

MAC

+

Baseband

Sleep

timer

BIAS_R

POR

nRESET

GPIO

registers

UART/SPI

SYNTH

Internal HF

RC-OSC

TX_ACTIVE

SWCLK,

JTCK

Calibration

ADC

Packet Trace

CPU debug

TPIU/ITM/

FPB/DWT

1.25V

Regulator

VDD_CORE
