QS5.DNET

Q-Series

DC input

nom.

DC 110-300V

±20%

DC input range

min.

88-360Vdc

continuous operation

DC input current

typ.

0.91A / 0.33A

110Vdc / 300Vdc, at 3.8A

Allowed Voltage L/N to Earth

max.

375Vdc

IEC 62103

Turn-on voltage

typ.

80Vdc

steady state value

Shut-down voltage

typ.

76Vdc

steady state value

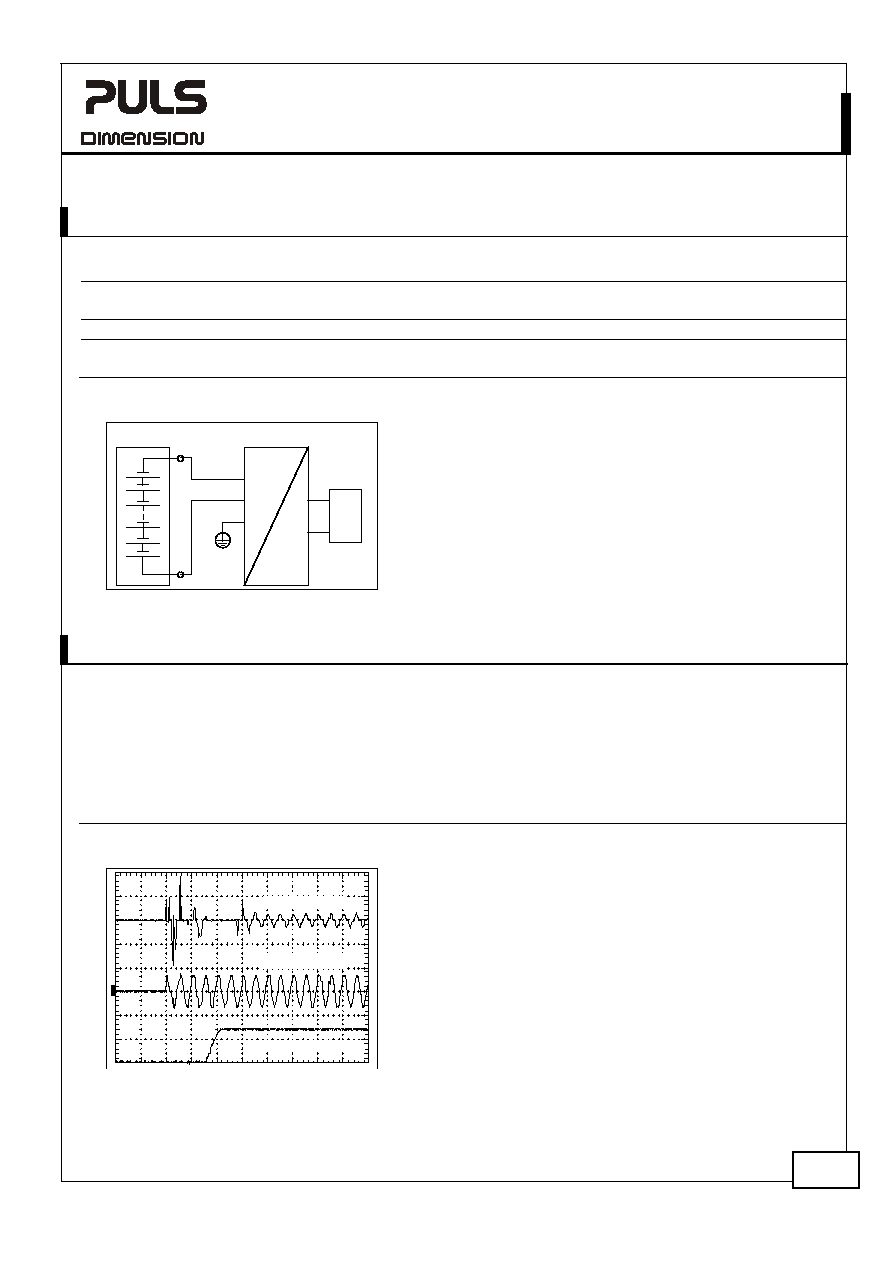

Fig. 4-1 Wiring for DC Input

Instructions for DC use:

+

-

Load

L

PE

+

-

Power Supply

AC

DC

Battery

N

a) Use a battery or similar DC source.

For other sources contact PULS

b) Connect +pole to L and –pole to N.

c) Connect the PE terminal to a earth wire or to the machine

ground.

An active inrush limitation circuit limits the input inrush current after turn-on of the input voltage and after short

input voltage interruptions.

The charging current into EMI suppression capacitors is disregarded in the first microseconds after switch-on.

AC 100V

AC 120V

AC 230V

Inrush current

max.

over entire temperature range

typ.

over entire temperature range

Inrush energy

max.

over entire temperature range

Fig. 5-1 Input inrush current, typical behavior

>

↓

>

Input Current

Input Voltage

Output Voltage

Input:

230Vac

Output:

24V, 3.8A

Ambient:

25°C

Upper curve:

Input current 5A / DIV

Middle curve:

Input voltage 500V / DIV

Lower curve:

Output voltage 20V / DIV

Time basis:

40ms / DIV

Mar. 2013 / Rev. 2.2 DS-QS5.DNET-EN

All parameters are specified at 24V, 3.8A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
