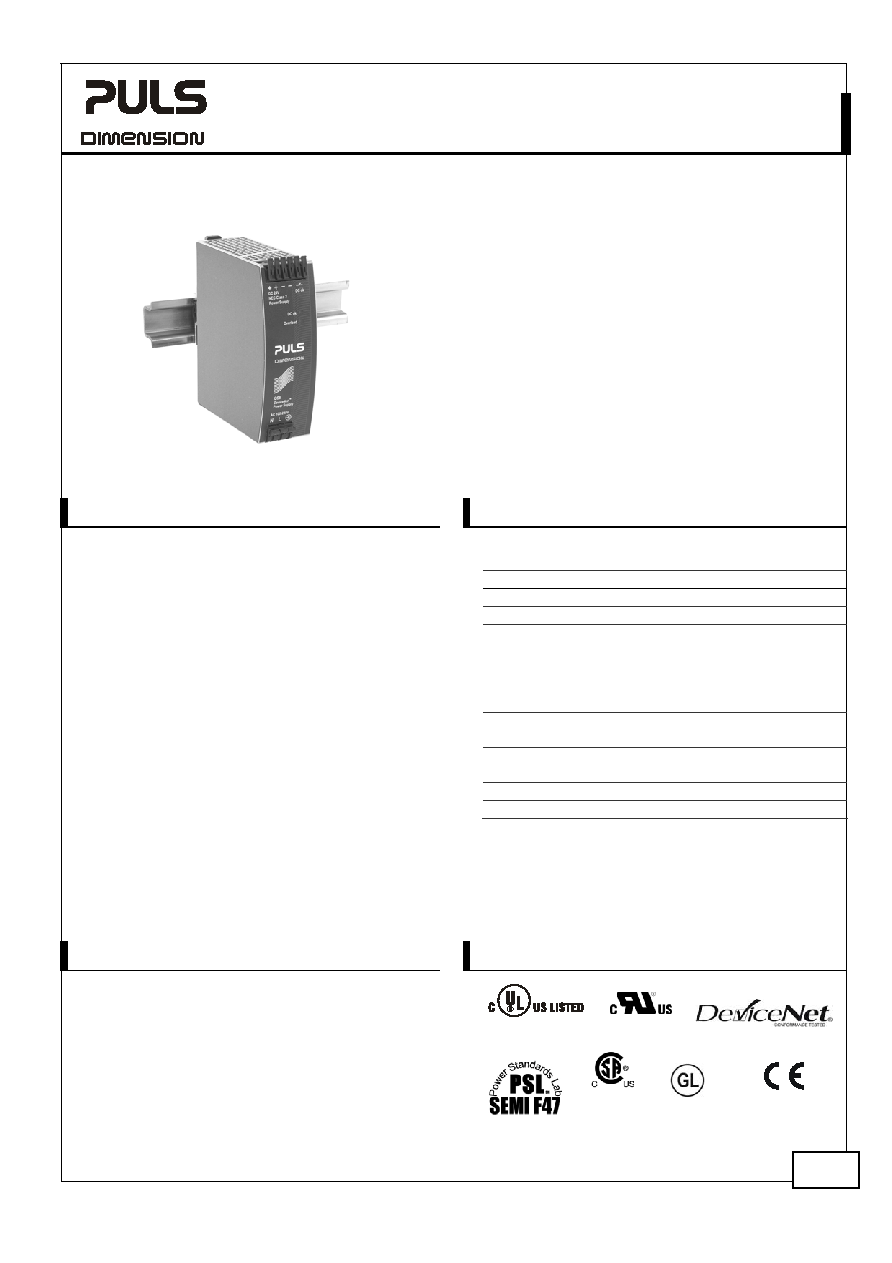

QS5.DNET

Q-Series

AC 100-240V Wide-range Input

NEC Class 2 Compliant

Width only 40mm

Efficiency up to 92%

Active Power Factor Correction (PFC)

DC Input from 88 to 360Vdc

Negligible low Inrush Current Surge

Short-term Operation down to 60Vac and up to 300Vac

Full Power Between -25°C and +60°C

DC-OK Relay Contact

Quick-connect Spring-clamp Terminals

3 Year Warranty

1/21

The QS5.DNET power supply is a derivate of the

Dimension QS5 family, which is specially designed to

beside the QS10.DNET, which is the right choice to

supply networks with the thick cables.

The nominal and overload currents are sized for the

Large load capacitors can be charged in a very short

period of time.

After turn on, the output voltage increases according

The upper level of the output level is limited to

protect the network.

The most outstanding features are a high efficiency,

compact size, wide-range input voltage, a very low

inrush surge and a DC-ok contact. High immunity to

transients and power surges and a low electromagnetic

emission makes usage in nearly every environment

possible.

Unique quick-connect spring-clamp terminals allow a

safe and fast installation. A large international approval

package makes this unit suitable for nearly every

situation.

Output voltage

DC 24V

Adjustment range

fixed

not adjustable

Output current

3.8A

continuous

Output power

91.2W

continuous

Output ripple

< 50mVpp

20Hz to 20MHz

Input voltage

AC 100-240V

+10%/-15%

Mains frequency

50-60Hz

±6%

AC Input current

0.85 / 0.45A

at 120 / 230Vac

Power factor

0.98 / 0.90

at 120 / 230Vac

AC Inrush current

typ. 9 / 11A peak at 120 / 230Vac

Efficiency

91.4 / 92.0%

at 120 / 230Vac

Losses

8.6 / 7.9W

at 120 / 230Vac

Temperature range -25°C to +70°C

operational

Derating

2W/°C

+60 to +70°C

Hold-up time

typ. 44 / 85ms

at 120 / 230Vac

Dimensions

40x124x117mm

WxHxD

Power Supply

QS5.DNET

Accessory

ZM1.WALL

Wall mount bracket

ZM12.SIDE

Side mount bracket

UF20.241

Buffer unit

IND. CONT. EQ.

UL 508

UL 60950-1

Class I Div

2

Marine

EMC, LVD

Mar. 2013 / Rev. 2.2 DS-QS5.DNET-EN

All parameters are specified at 24V, 3.8A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
