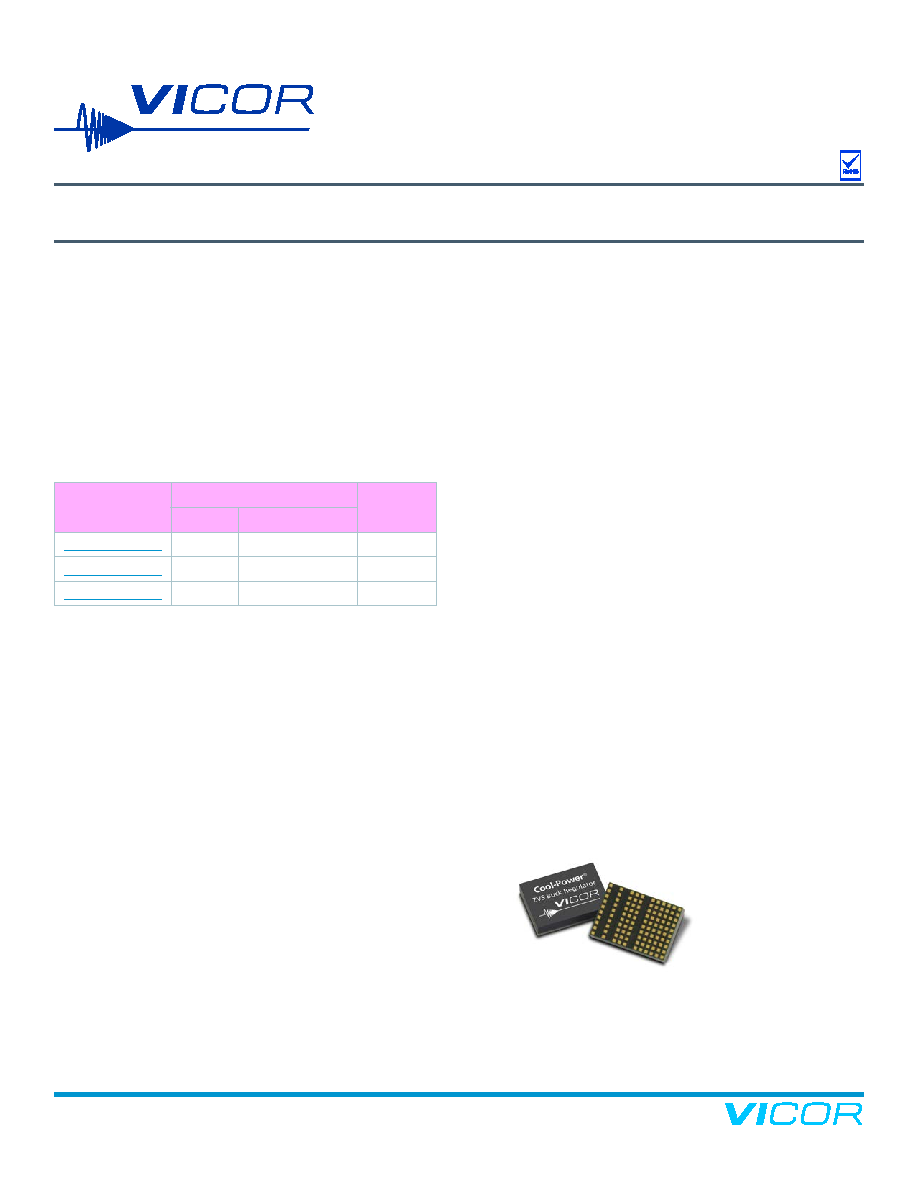

Cool-Power® ZVS Switching Regulators

Rev 1.5

Page 1 of 41

03/2018

30 – 60VIN Cool-Power ZVS Buck Regulator

Cool-Power®

ZVS Switching Regulators

PI352x-00

Product Description

The PI352x-00 is a family of high input voltage, wide input

range DC-DC ZVS Buck regulators integrating controller, power

switches, and support components all within a high density

System-in-Package (SiP).

The integration of a high-performance Zero-Voltage Switching

(ZVS) topology, within the PI352x-00 series, increases point

of load performance providing best in class power efficiency.

The PI352x-00 requires only an external inductor, two voltage

selection resistors and minimal capacitors to form a complete

DC-DC switch mode buck regulator.

Features & Benefits

• High Efficiency HV ZVS Buck Topology

• Wide input voltage range of 30 – 60V

• Power-up into pre-biased load ≤ 6.0V

• Parallel capable with single wire current sharing

• Input Over/Undervoltage Lockout (OVLO/UVLO)

• Output Overvoltage Protection (OVP)

• Overtemperature Protection (OTP)

• Fast and slow current limits

• Differential amplifier for output remote sensing

• User adjustable soft start & tracking

• –40 to 120°C operating range (TINT)

Applications

• HV to PoL Buck Regulator Applications

• Computing, Communications, Industrial,

Automotive Equipment

Package Information

• 10 x 14 x 2.6mm LGA SiP

Device

Output Voltage

IOUT Max

Set

Range

PI3523-00-LGIZ

3.3V

2.2 – 4V

22A

PI3525-00-LGIZ

5.0V

4.0 – 6.5V

20A

PI3526-00-LGIZ

12V

6.5 – 14V

18A
