HCV1707R1-R48-R 数据表(PDF) 38 Page - Vicor Corporation

部件名 HCV1707R1-R48-R
功能描述  30 ??60VIN Cool-Power ZVS Buck Regulator
PDF  41 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  VICOR [Vicor Corporation]
网页  http://www.vicorpower.com
标志 VICOR - Vicor Corporation

HCV1707R1-R48-R 数据表(HTML) 38 Page - Vicor Corporation

Back Button HCV1707R1-R48-R Datasheet HTML 33Page - Vicor Corporation HCV1707R1-R48-R Datasheet HTML 34Page - Vicor Corporation HCV1707R1-R48-R Datasheet HTML 35Page - Vicor Corporation HCV1707R1-R48-R Datasheet HTML 36Page - Vicor Corporation HCV1707R1-R48-R Datasheet HTML 37Page - Vicor Corporation HCV1707R1-R48-R Datasheet HTML 38Page - Vicor Corporation HCV1707R1-R48-R Datasheet HTML 39Page - Vicor Corporation HCV1707R1-R48-R Datasheet HTML 40Page - Vicor Corporation HCV1707R1-R48-R Datasheet HTML 41Page - Vicor Corporation
Zoom Inzoom in Zoom Outzoom out
 38 / 41 page
background image
Cool-Power® ZVS Switching Regulators
Rev 1.5
Page 38 of 41
03/2018
PI352x-00
D1
E1
L
D1
E1
L

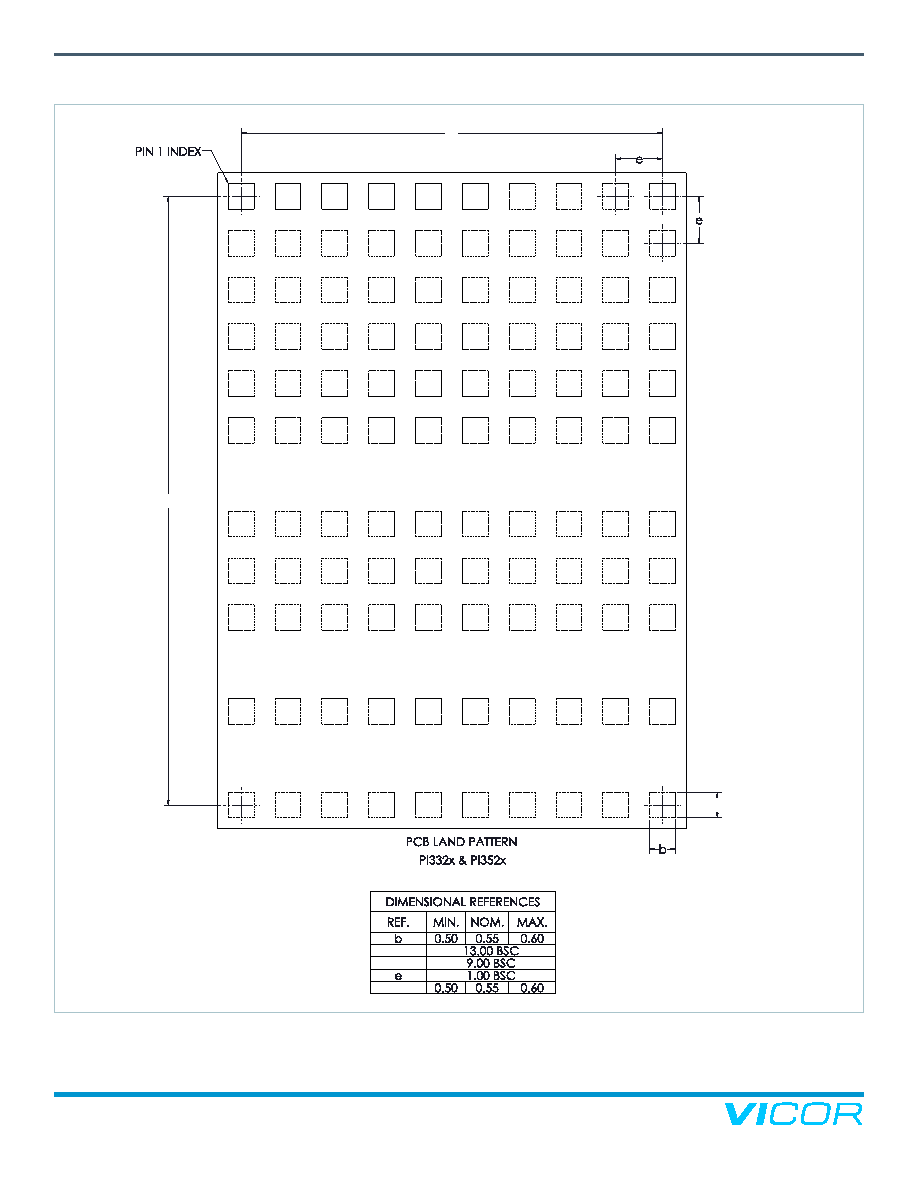

Recommended receiving footprint for PI352x-00 10 x 14mm package. All pads should have a final copper size of 0.55 x 0.55mm,
whether they are solder-mask defined or copper defined, on a 1 x 1mm grid. All stencil openings are 0.45mm when using either a
5mil or 6mil stencil.
Recommended PCB Footprint and Stencil
