Digital Controller

E5AK/E5EK

•E5EK

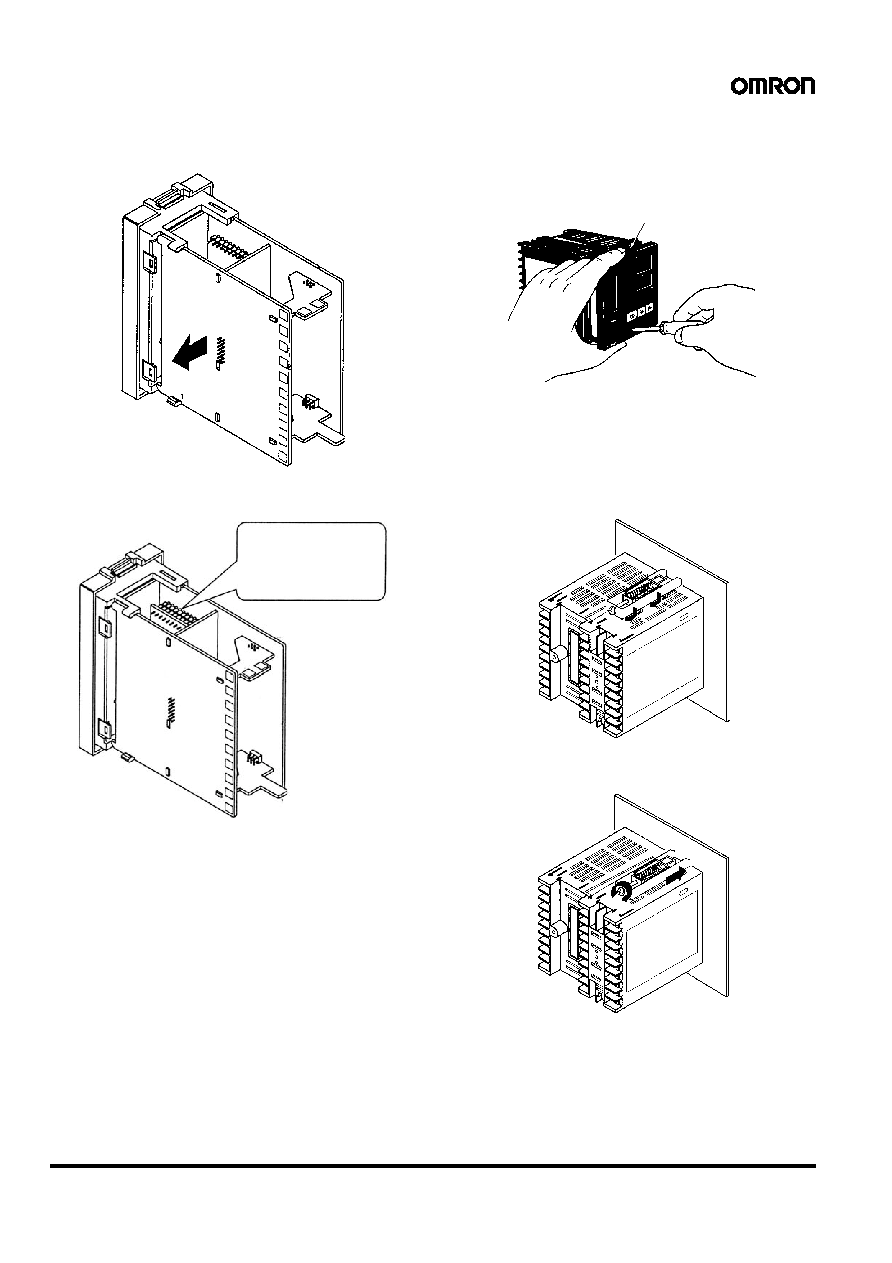

1. Remove the power board and option boards in the order shown in

the following diagram.

2. Insert the Option Unit into the socket for option 1. The following

diagram shows the relationship between the Option Unit and

mounting position.

3. Mount the option board and the power board in the order shown.

Draw-out

To draw out the internal mechanism from the housing, use a Phillips

screwdriver matching the screw on the lower part of the front panel.

1. Turn the screw counterclockwise while pressing the hook on the

upper part of the front panel.

2. Draw out the internal mechanism while holding the left and right

sides of the front panel.

Mounting

1. Insert the E5AK Controller into the panel’s mounting hole at the

position shown in the figure below.

2. Fit the mounting bracket (accessory) into the fixing slots on the

top and bottom of the rear case.

3. Tighten the mounting bracket screws on the upper and lower

parts of the E5AK in small increments alternately and equally until

the ratchet start to slide.

Option 1

E53-AKB: Event inputs 1/2

E53-EN01: RS-232C

E53-EN02: RS-422

E53-EN03: RS-485

E53-AKF: Transfer output

Hook
