Digital Controller

E5AK/E5EK

23

■ Close in Alarm/Open in Alarm

When the Controller is set to “close in alarm,” the status of the alarm

output function is output as it is. When set to “open in alarm,” the sta-

tus of the alarm output function is output inverted.

Alarm type and close in alarm (normally open)/open in alarm (nor-

mally close) can be set independently from each alarm.

Close in alarm/Open in alarm is set in the “alarm 1 to 3 open in

alarm” parameters (setup mode). Factory setting is “close in alarm”

[ n-o ].

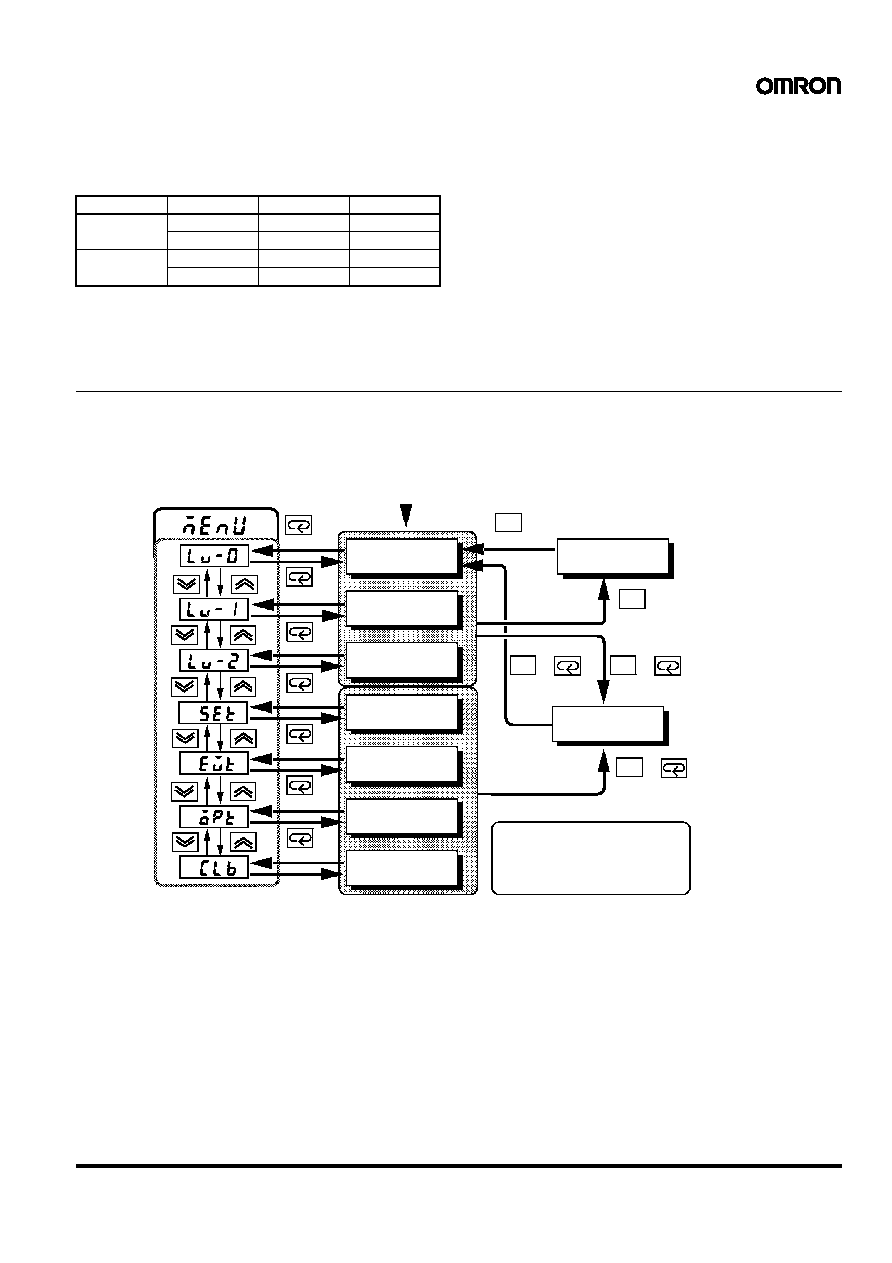

■ Parameter Operation List

Switching to modes other than manual or protect mode is carried out using the mode selection in the menu display.

The figure below shows all parameters in the order that they are displayed. Some parameters are not displayed depending on the protect mode

setting and conditions of use.

■ Parameters and Menus

Note: For more details on the functions of each part and display contents, refer to the E5AK/E5EK User’s Manual (H83/H85).

All functions selected with the Digital Controller in setup or expansion mode or all optional functions of the Digital Controller may not be

displayed.

Protect Mode

Limits use of the menu and A/M Keys. The protect function prevents unwanted modification of parameters and

switching between the auto and manual operation.

Manual Mode

The Controller can be switched to manual operation. The manipulated variable can be manipulated manually only

in this mode.

Condition

Alarm

Output

Output LED

Close in alarm

ON

ON

Lit

OFF

OFF

Not lit

Open in alarm

ON

OFF

Lit

OFF

ON

Not lit

A/M

A/M

A/M

A/M

A/M

++

+

1 second min.

Level 0 mode

Level 1 mode

Level 2 mode

Setup mode

Expansion mode

Option mode

Calibration mode

1 second min.

Manual mode

Protect mode

1 second min.

1 second min.

1 second min.

1 second min.

1 second min.

Power ON

1 second min.

1 second min.

1 second min.

1 second min.

1 second min.

Parameters in a mode can be

switched by the Display Key. The

parameter following the last param-

eter is the top parameter.

Note: The control of the Digital Controller is reset when the Digital Controller is in setup, expansion, option,

or calibration mode, in which case the control and auxiliary outputs are OFF. The reset condition will

be canceled when the Digital Controller is in any mode other than the above.
