■ Wiring Terminals for E5EK

Terminal Arrangement

Wiring

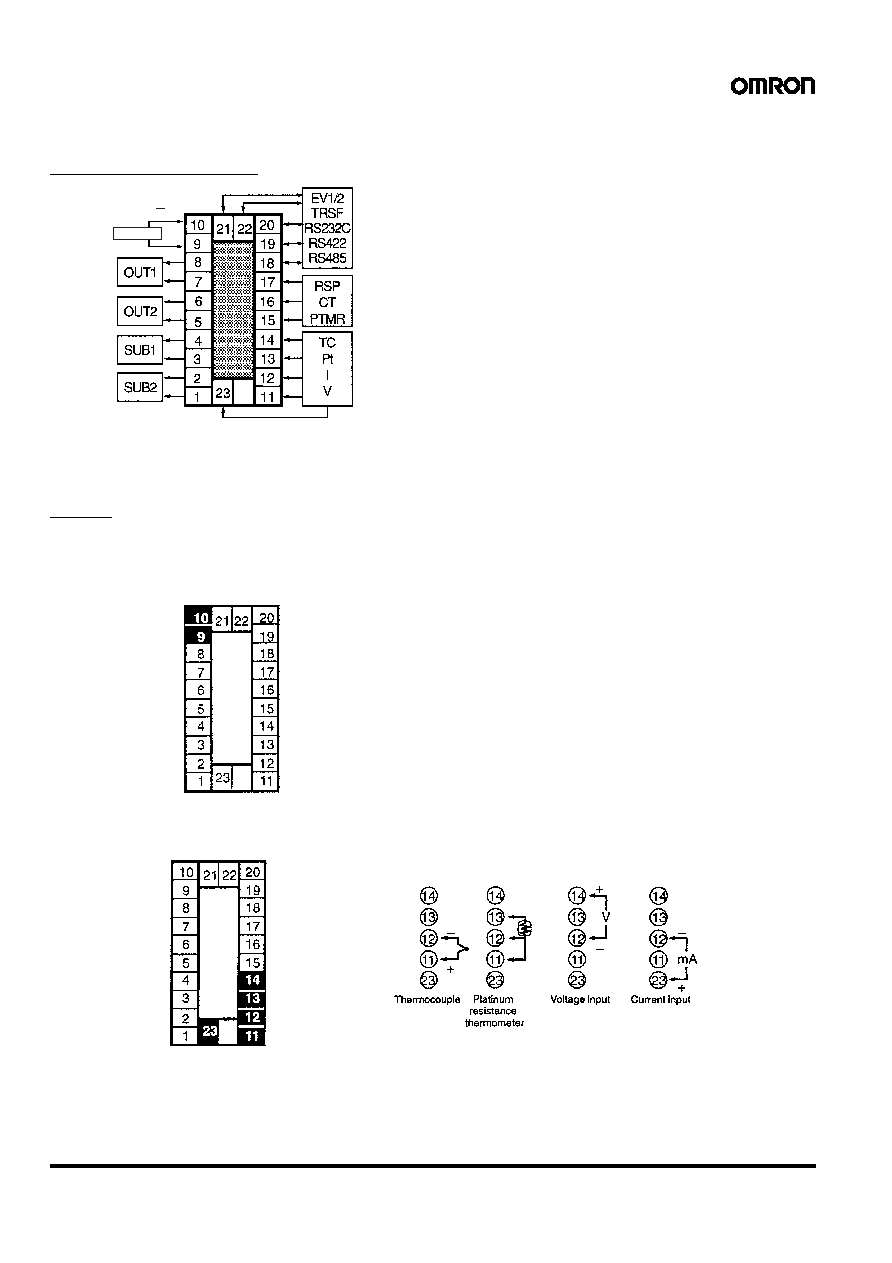

In the following wiring diagrams, the left side of the terminal numbers indicate the inside of the Controller.

Power Supply

Input 100 to 240 VAC or AC/DC 24 V to terminal numbers 9 and 10 according to the specifications.

Sensor Input

Connect the sensor input to terminal numbers 11 to 14 and 33 as follows according to the input type.

SOURCE

AC100-240V

~

(AC/DC24V

~)

TRSF:

Transfer output

EV1/2: Event input

PTMR: Potentiometer

RSP:

Remote SP input
