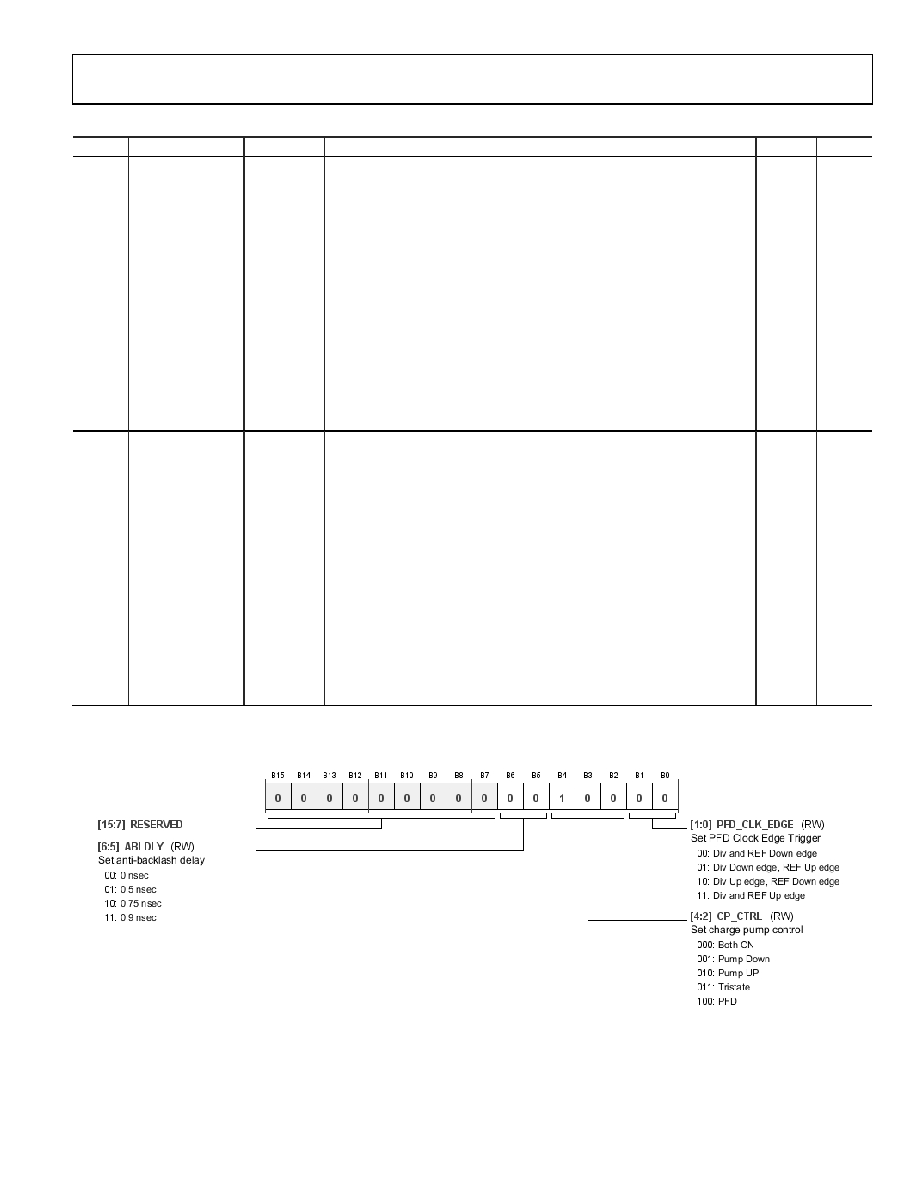

background image
Data Sheet
ADRF6720
Table 27. Bit Descriptions for MOD_CTL1
Bits
Bit Name
Settings
Description
Reset
Access
[15:8]
DCOFF_I
LO Nulling, I Channel.
0x0
RW
00000000
0 μA.
00000001
+5 μA.
00000010
+10 μA.
00000011
+15 μA.
…
…
01111110
+630 μA.
01111111
+635 μA.
10000000
0 μA.
10000001
−5 μA.
10000010
−10 μA.
10000011
−15 μA.
…
…
11111110
−630 μA.
11111111
−635 μA.
[7:0]
DCOFF_Q
LO Nulling, Q Channel.
0x0
RW
00000000
0 μA.
00000001
+5 μA.
00000010
+10 μA.
00000011
+15 μA.
…
…
01111110
+630 μA.
01111111
+635 μA.
10000000
0 μA.
10000001
−5 μA.
10000010
−10 μA.
10000011
−15 μA.
…
…
11111110
−630 μA.
11111111
−635 μA.
Address: 0x40, Reset: 0x0010, Name: PFD_CP_CTL
Rev. 0 | Page 39 of 44
