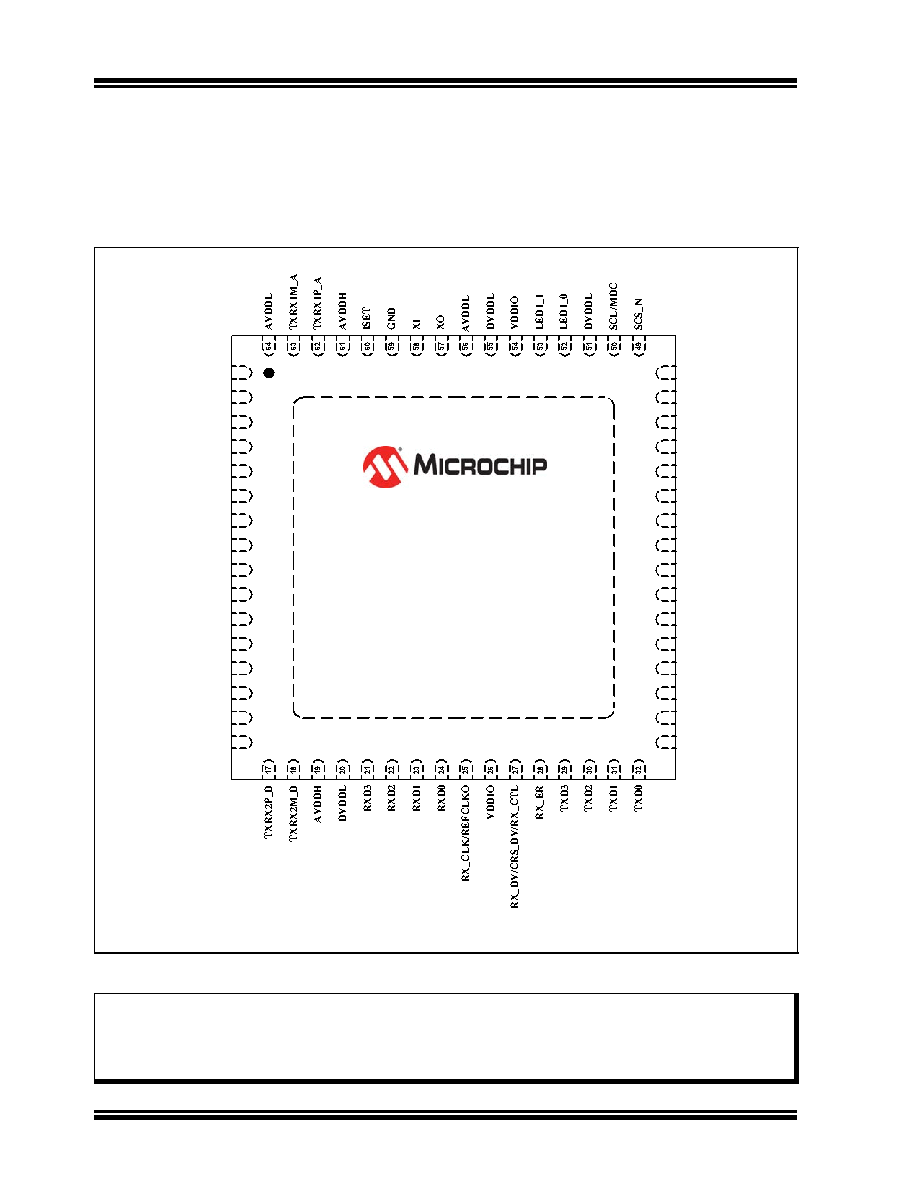

10 / 226 page ![]() KSZ9563R DS00002419D-page 10 2017-2018 Microchip Technology Inc. 3.0 PIN DESCRIPTIONS AND CONFIGURATION 3.1 Pin Assignments The device pin diagram for the KSZ9563R can be seen in Figure 3-1. Table 3-1 provides a KSZ9563R pin assignment table. Pin descriptions are provided in Section 3.2, "Pin Descriptions". FIGURE 3-1: PIN ASSIGNMENTS (TOP VIEW) Note: When an “_N” is used at the end of the signal name, it indicates that the signal is active low. For example, RESET_N indicates that the reset signal is active low. The buffer type for each signal is indicated in the “Buffer Type” column of the pin description tables in Sec- tion 3.2, "Pin Descriptions". A description of the buffer types is provided in Table 1-2, "Buffer Types". Note: Exposed pad (VSS) on bottom of package must be connected to ground with a via field . (Connect exposed pad to ground with a via field) VSS KSZ9563R 64-VQFN (Top View ) 5 6 7 8 9 10 11 12 44 43 42 41 40 39 38 37 AVDDH TXRX1M_D TXRX2P_A TXRX2M_A AVDDL TXRX2P_B TXRX2M_B TXRX2P_C RESET_N INTRP_N LED2_1 VDDIO TX_ER TX_EN/TX_CTL LED2_0 PME_N 3 4 13 14 36 35 46 45 TXRX1P_D AVDDL TXRX1M_C TXRX1P_C DVDDL GPIO_2 GPIO_1 DVDDL 1 2 TXRX1M_B TXRX1P_B 16 15 AVDDL TXRX2M_C 34 33 TX_CLK/REFCLKI DVDDL 48 SDO 47 SDI/SDA/MDIO |
|
