P9242-R3/RB Datasheet
© 2019 Integrated Device Technology, Inc.
12
May 17, 2019

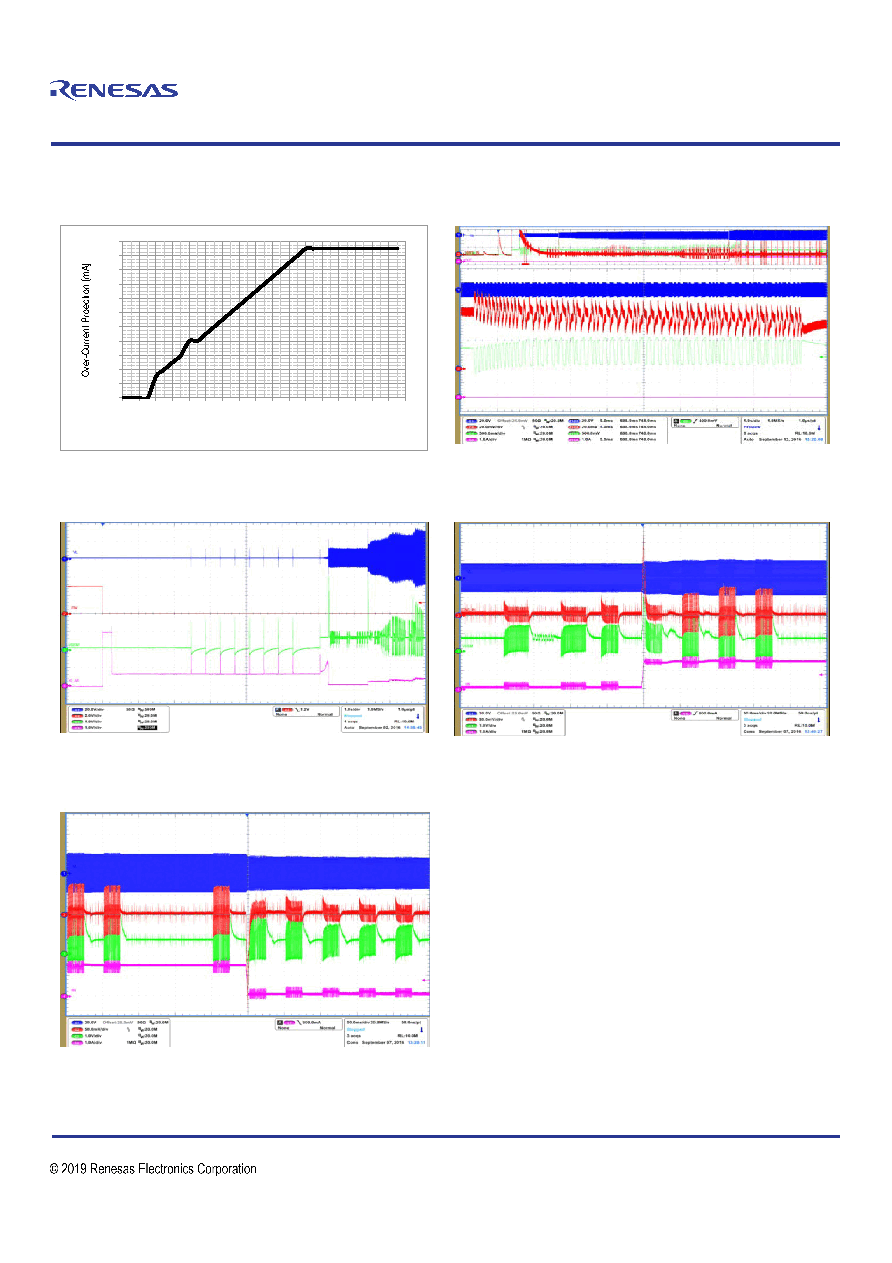

Figure 8. Over-Current Limit vs. VILIM
Figure 9. Voltage and Current Signal for
Demodulation
Figure 10. Enable Startup
Figure 11. Communication Packet during
RX Load Step from 0 to 1.3A
Figure 12. Communication Packet during RX
Load Step from 1.3A to 0
