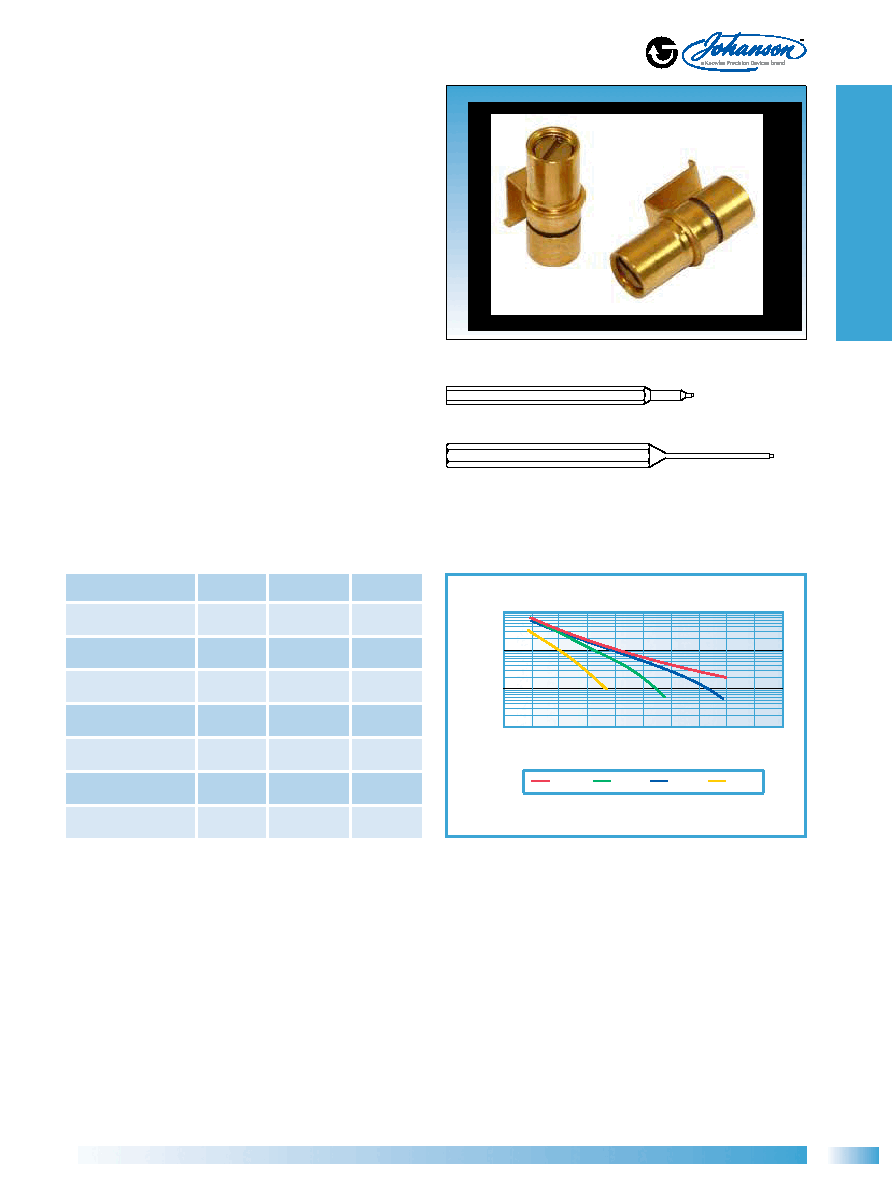

Giga-Trim® Trimmers -
Description
Sapphire dielectric
Ceramic dielectric
Zirconia High K dielectric
High Q
500 VDC working voltage
Select part numbers available on tape and reel
Utilizes the same constant torque drive mechanism as
Johanson air capacitors and tuning elements
Characteristics
Rated voltage: 500 VDC
Insulation resistance: >106 MΩ @ 500 VDC
Rotational life exceeds Mil-C-14409
Contact resistance: <.01 V
Operating temperature: -65°C to +125°C
Self resonant frequency: >12 GHz
Vibration: 60g, 10-2000 Hz
Shock: 100g, 6 milliseconds
Applications
Impedance matching
Crystal trimming
Interstage coupling
Base station amplifier
Seal Caps
Type
Part No.
Cap type
Material
17273
P4446-2
“Poke-Thru”
Seal Cap
Teflon®
27260 Thru 27265
P4445-1
Standard
Seal Cap
Teflon®
27270 Thru 27295
P4445
Standard
Seal Cap
Teflon®
27260 Thru 27265
P4446-1
“Poke-Thru”
Seal Cap
Teflon®
27270 Thru 27295
P4446
“Poke-Thru”
Seal Cap
Teflon®
47273 Thru 47285
P4446-2
“Poke-Thru”
Seal Cap
Teflon®
57263
P4446-1
“Poke-Thru”
Seal Cap
Teflon®
Note: The use of a Johanson tuning tool is recommended. Improper
screwdriver size will cause internal thread damage.
JMC 8762
JMC Drive Tuning Tool 8762
JMC Drive Tuning Tool 8766
JMC 8766
Q
Frequency (MHz)
10000
1000
100
10
0
250
500 750
1000 1250 1500 1750 2000 2250 2500
27260
27270
27280
27290
Set at Max. capacitance
