www.knowlescapacitors.com

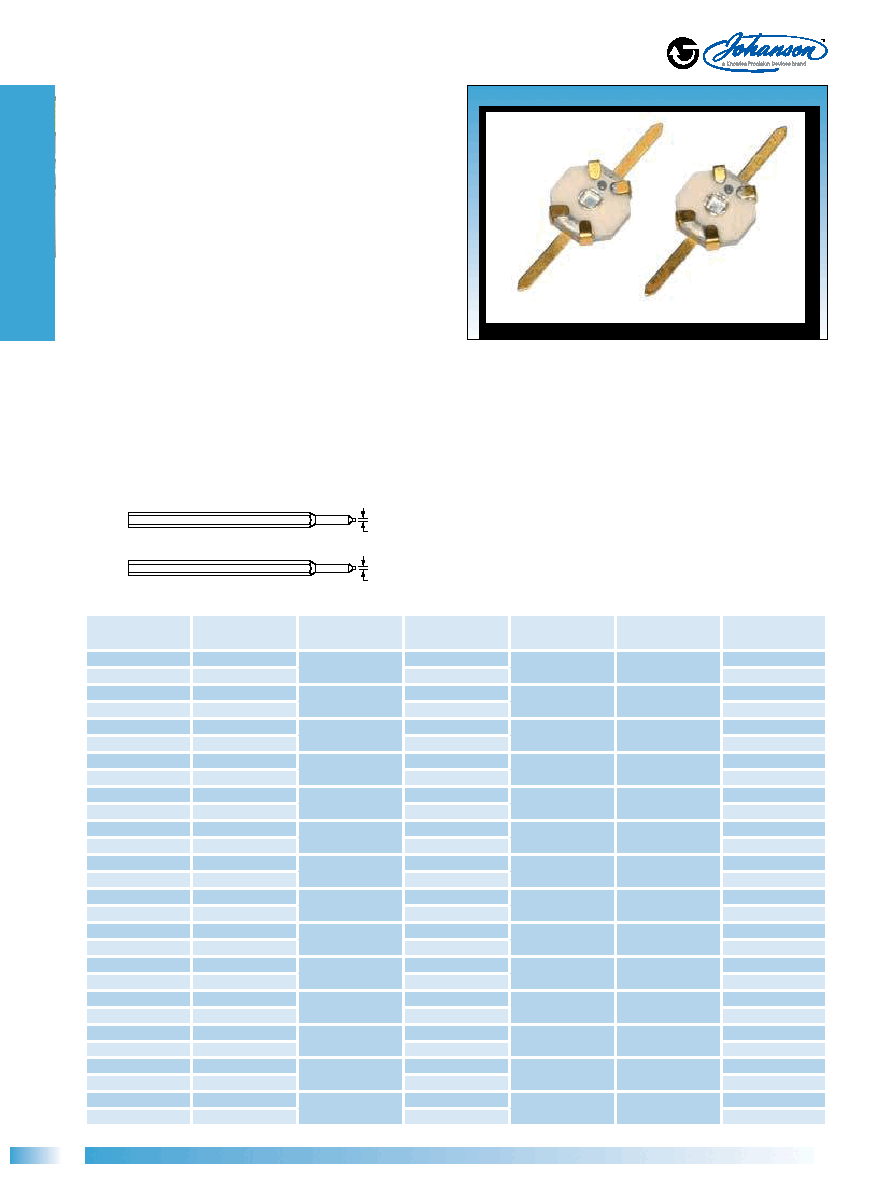

Thin-Trim® Trimmers - 9402 & 9410 Series

Thin-Trim® 9402 & 9410 Series capacitors are an advanced

development in miniaturized trimmer capacitors for applications in

circuits where size and performance are critical.

The Thin-Trim® capacitor embodies a radical reduction in size

and weight over standard ceramic capacitors, with a proportional

improvement in electrical characteristics. The capacitor consists

of a metallic rotor suspended under spring pressure between

two metalized dielectric disks. In addition to physically securing

the assembly, the springs serve as both the internal electrical

connection and the external terminals, simplifying the construction

and further reducing size. The incorporation of the Johanson square

drive tuning mechanism insures captive, non-slip, tamper-proof

adjustments which are not subject to backlash problems associated

with screwdriver type adjustments.

Characteristics

Rated voltage: 250 VDC (test voltage 500 VDC)



Insulation resistance: >104 MΩ



Operating temperature range: -55ºC to +125ºC



Torque: 0.05 to 1.0 oz. in.

0.2 to 2.0 oz. in. for 9410



Vibration: 15g, 10-2000 Hz



Shock: 100g, 6 milliseconds



Setting drift: <1%



Moisture resistance: MIL-STD-202, Method 106



Resistant to soldering heat: MIL-STD-202, Method 210, Test C



Solderability: MIL-STD-202, Method 208



Resistant to cleaning solvents: MIL-STD-202, Method 215

JMC Square Drive Tuning Tool 4192 for 9402

JMC Square Drive Tuning Tool 4193 for 9410

Applications



RF amplifier



LC Filters and Networks



Broadband Wireless LAN



Medical Devices



Cordless and Cellular phones



DR/Crystal Oscillator



Microstrip line filters

Series

Housing Size

Capacitance

Tuning

Resolution

Min. Q @

100 MHz

Color Code

Drawing Figure

9402-0

0.125” (3.18mm)

0.5 to 2.5pF

180°

3000

Red

9402-0SL-1

0.125” (3.18mm)

180°

9402-1

0.125” (3.18mm)

1.0 to 5.0pF

180°

1000

Black

9402-1SL-1

0.125” (3.18mm)

180°

9402-2

0.125” (3.18mm)

2.5 to 10pF

180°

1000

Blue

9402-2SL-1

0.125” (3.18mm)

180°

9402-4

0.125” (3.18mm)

3.0 to 12pF

180°

500

Brown

9402-4SL-1

0.125” (3.18mm)

180°

9402-6

0.125” (3.18mm)

6.0 to 25pF

180°

300

Yellow

9402-6SL-1

0.125” (3.18mm)

180°

9402-8

0.125” (3.18mm)

5.0 to 15pF

180°

750

None

9402-8SL-1

0.125” (3.18mm)

180°

9402-9

0.125” (3.18mm)

5.0 to 18pF

180°

500

Grey

9402-9SL-1

0.125” (3.18mm)

180°

9410-0

0.200” (5.08mm)

1.0 to 4.5pF

180°

1000

Red

9410-0SL-1

0.200” (5.08mm)

180°

9410-1

0.200” (5.08mm)

2.5 to 10pF

180°

1000

Black

9410-1SL-1

0.200” (5.08mm)

180°

9410-2

0.200” (5.08mm)

4.0 to 18pF

180°

700

Blue

9410-2SL-1

0.200” (5.08mm)

180°

9410-3

0.200” (5.08mm)

6.0 to 35pF

180°

200

Orange

9410-3SL-1

0.200” (5.08mm)

180°

9410-4

0.200” (5.08mm)

7.0 to 40pF

180°

200

Brown

9410-4SL-1

0.200” (5.08mm)

180°

9410-5

0.200” (5.08mm)

8.0 to 50pF

180°

200

Green

9410-5SL-1

0.200” (5.08mm)

180°

9410-25

0.200” (5.08mm)

5.0 to 25pF

180°

200

Yellow

9410-25SL-1

0.200” (5.08mm)

180°

Packaging

Tape and reel available for 9402-SL & 9410-SL products

Add suffix to JMC P/N for reel packaging

9410-SL R7 = 3000 pieces

.030 (.762)

JMC 4193

.025 (.635)

JMC 4192
