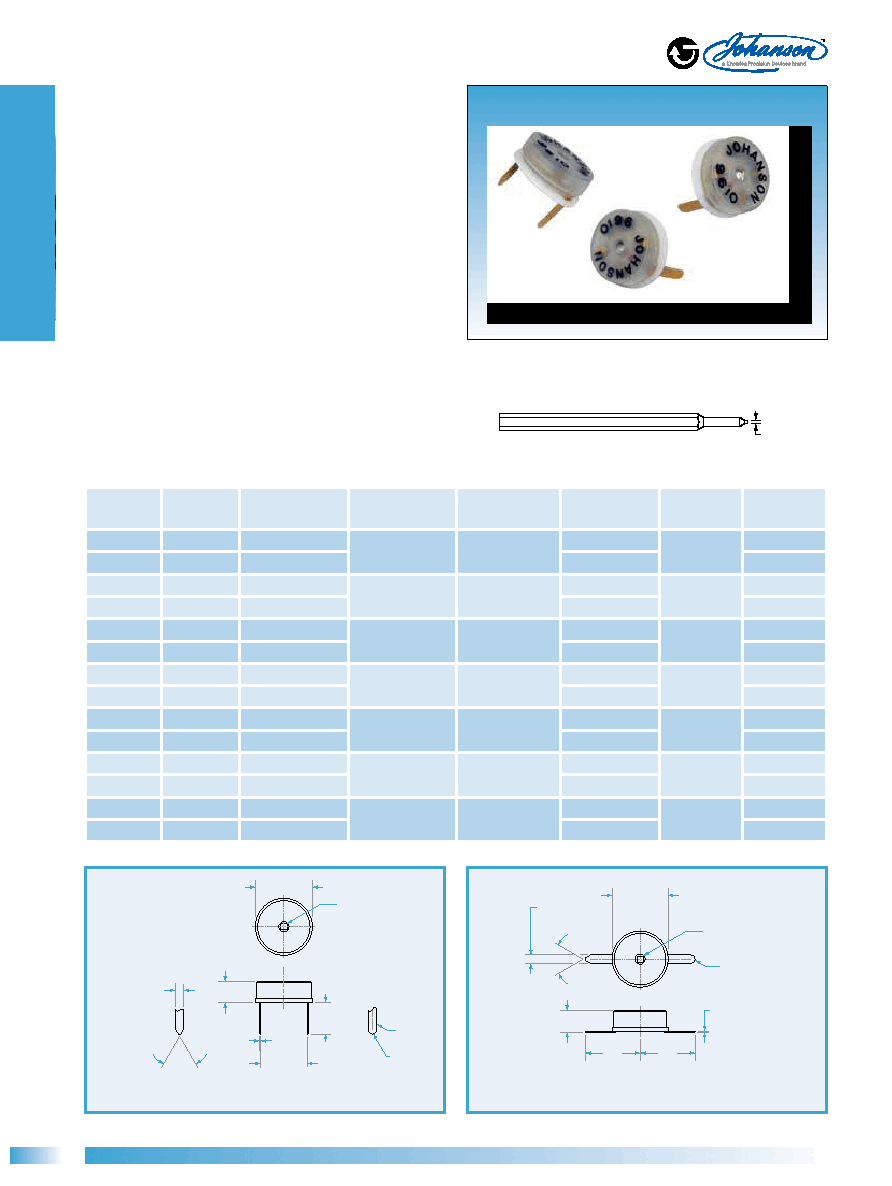

AT25LSD datasheet(12/60 Pages) KNOWLES

12 / 60 page

www.knowlescapacitors.com

9610

Series

9810 RoHS

Series

Housing Size

9610

Capacitance

9810 RoHS

Capacitance

Tuning

Resolution

Min. Q @

100 MHz

Drawing

Figure

9610

9810

0.270” (6.86mm)

1 to 4.5pF

180°

>1000

9610-SL

9810-SL

0.270” (6.86mm)

180°

9611

9811

0.270” (6.86mm)

2.5 to 10pF

180°

>1000

9611-SL

9811-SL

0.270” (6.86mm)

180°

9612

9812

0.270” (6.86mm)

4 to 18pF

180°

>700

9612-SL

9812-SL

0.270” (6.86mm)

180°

9613

9813

0.270” (6.86mm)

6 to 35pF

180°

>200

9613-SL

9813-SL

0.270” (6.86mm)

180°

9614

9814

0.270” (6.86mm)

7 to 40pF

180°

>200

9614-SL

9814-SL

0.270” (6.86mm)

180°

9615

9815

0.270” (6.86mm)

5 to 25pF

180°

>200

9615-SL

9815-SL

0.270” (6.86mm)

180°

9616

9816

0.270” (6.86mm)

8 to 50pF

10.5 to 50pF

180°

>200

9616-SL

9816-SL

0.270” (6.86mm)

180°

The Seal-Trim® is a high performance Thin-Trim® trimmer ceramic

capacitor encapsulated in a polymer housing. This design resists

intrusion of dirt, dust, solder flux and cleaning agents during

assembly and atmospheric contamination during use. These

capacitors offer low drift rates and high Q, making them ideal for

higher frequency applications beyond the limits of ordinary ceramic

trimmer capacitors. The incorporation of the Johanson square

drive tuning mechanism insures captive non-slip, tamper-proof

adjustments which are not subject to backlash problems associated

with screwdriver type adjustment slots.

Characteristics

Rated voltages:

250 VDC (test voltage 500 VDC) for 9610, 9620, 9810 & 9820

400 VDC (test voltage 800 VDC) for 9694



Insulation resistance: >104 MΩ



Operating temperature range: -55ºC to +125ºC



Torque: 0.2 to 2.0 for 9610, 9694

0.05 to 1.0 for 9620



Vibration: 15g, 10-2000 Hz, MIL-STD-202, Method 204



Shock: 100g, 6 milliseconds, MIL-STD-202, Method 21



Setting drift: <1%; <2% for 9616, 9694



Moisture resistance: MIL-STD-202, Method 106



Resistant to soldering heat: MIL-STD-202, Method 210, Test C



Solderability: MIL-STD-202, Method 208

.030 (.762)

JMC 4193

JMC Drive Tuning Tool 4193 for 9610, 9620, 9810 & 9820 Series

Dimensions: inches (mm)

9610-SL

60º

.040 ±.002

(1.02 ±.051)

.270 ±.010

(6.86 ±.254)

.030 (.762)

SQUARE DRIVE

TUNING

ROTOR

.005 ±.001

(1.27 ±.025)

.110 (2.79)

.260

(6.60)

.260

(6.60)

Figure B

Dimensions: inches (mm)

9610

.030 (.762)

SQUARE DRIVE

TUNING

.270 ±.010

(6.86 ±.254)

.100 ±.015

(2.54 ±.381)

.040 ±.002

(1.02 ±.051)

.005 ±.015

(3.81 ±.381)

.220 (5.59)

60º

.150 ±.015

(3.81 ±.381)

ROTOR

Figure A



Resistant to cleaning solvents: MIL-STD-202, Method 215



RoHS compliant Series

Seal-Trim® Trimmers - 9610 & 9810 Series
