Data Sheet

ADP1853

Rev. 0 | Page 13 of 28

SYNCHRONIZATION

The switching frequency of the ADP1853 can be synchronized

to an external clock signal by connecting it to the SYNC pin.

The internal oscillator frequency, programmed by the resistor at

the FREQ pin must be set close to the external clock frequency;

therefore, the external clock frequency may vary between 0.85×

and 1.3× of the internal clock set. The resulting switching

frequency is 1× of the external SYNC frequency. When

synchronized, the ADP1853 operates in PWM.

When an external clock is detected at the first SYNC edge, the

internal oscillator is reset, and the clock control shifts to SYNC.

The SYNC edges then trigger subsequent clocking of the PWM

outputs. The DH rising edge appears approximately 100 ns after

the corresponding SYNC edge, and the frequency is locked to

the external signal. If the external SYNC signal disappears

during operation, the ADP1853 reverts to its internal oscillator.

When the SYNC function is used, it is recommended to connect a

pull-up resistor from SYNC to VCCO so that when the SYNC

signal is lost, the ADP1853 continues to operate in PWM.

PWM OR PULSE SKIP MODE OF OPERATION

The SYNC pin is a multifunctional pin. PWM mode is enabled

when SYNC is connected to VCCO or a high logic. With SYNC

connected to ground or left floating, pulse skip mode is

enabled. Switching SYNC from low to high or high to low on

the fly causes the controller to transition from forced PWM

to pulse skip mode or from pulse skip mode to forced PWM,

respectively, in two clock cycles.

Table 5. Mode of Operation

SYNC Pin

Mode of Operation

Low

Pulse skip mode

High

Forced PWM

No Connect

Pulse skip mode

Clock Signal

Forced PWM

The ADP1853 has pulse skip sensing circuitry that allows the

controller to skip PWM pulses, reducing the switching

frequency at light loads and, therefore, maintaining better

efficiency during a light load operation. The resulting output

ripple is larger than that of the fixed frequency forced PWM.

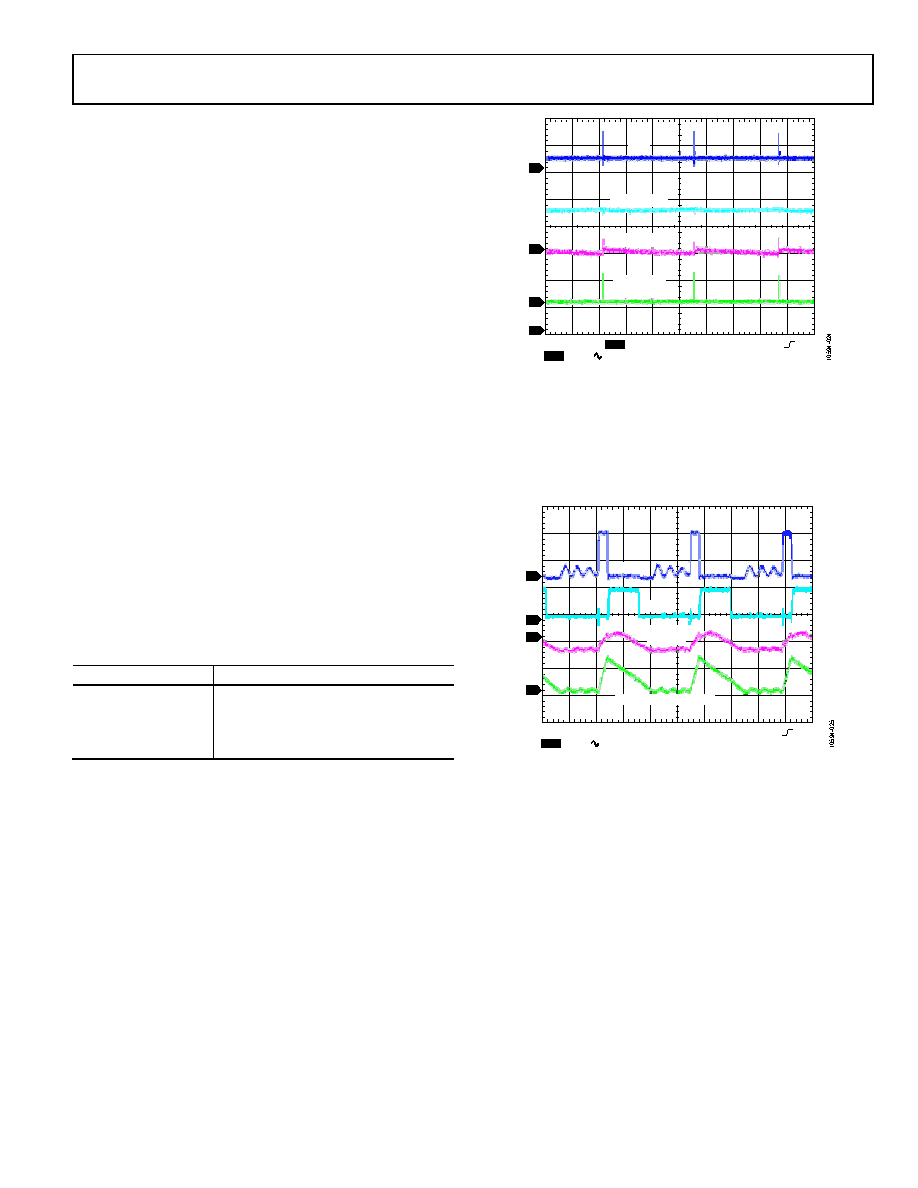

Figure 18 shows the ADP1853 operating in PSM under a light

load. Pulse skip frequency under a light load is dependent on

the inductor, output capacitance, output load, and input and

output voltages.

Figure 18. Example of Pulse Skip Mode Under a Light Load

When the output load is greater than the pulse skip threshold

current, that is, when VCOMP reaches the threshold of 0.9 V, the

ADP1853 exits the pulse skip mode of operation and enters

the fixed frequency discontinuous conduction mode (DCM),

as shown in Figure 19. When the load increases further, the

ADP1853 enters continuous conduction mode (CCM).

Figure 19. Example of Discontinuous Conduction Mode (DCM) Waveform

In forced PWM, the ADP1853 always operates in CCM at any

load; therefore, the inductor current is always continuous.

CLKOUT SIGNAL

The ADP1853 has a clock output, CLKOUT, which can be

used for synchronizing other ADP1853 controllers, thus

eliminating the need for an external clock source. The

CLKOUT frequency is 1× the internal oscillator frequency,

fOSC, and is 180° out of phase.

CH2 200mV

CH1 10V

M200µs

A CH1

7.8V

CH3 20mV

CH4 2A

Ω

COMP (CH2)

VOUT RIPPLE

INDUCTOR

CURRENT

CH2 5V

CH1 10V

M1µs

A CH1

13.4V

CH3 20mV

CH4 2A

Ω

OUTPUT

RIPPLE

INDUCTOR CURRENT
