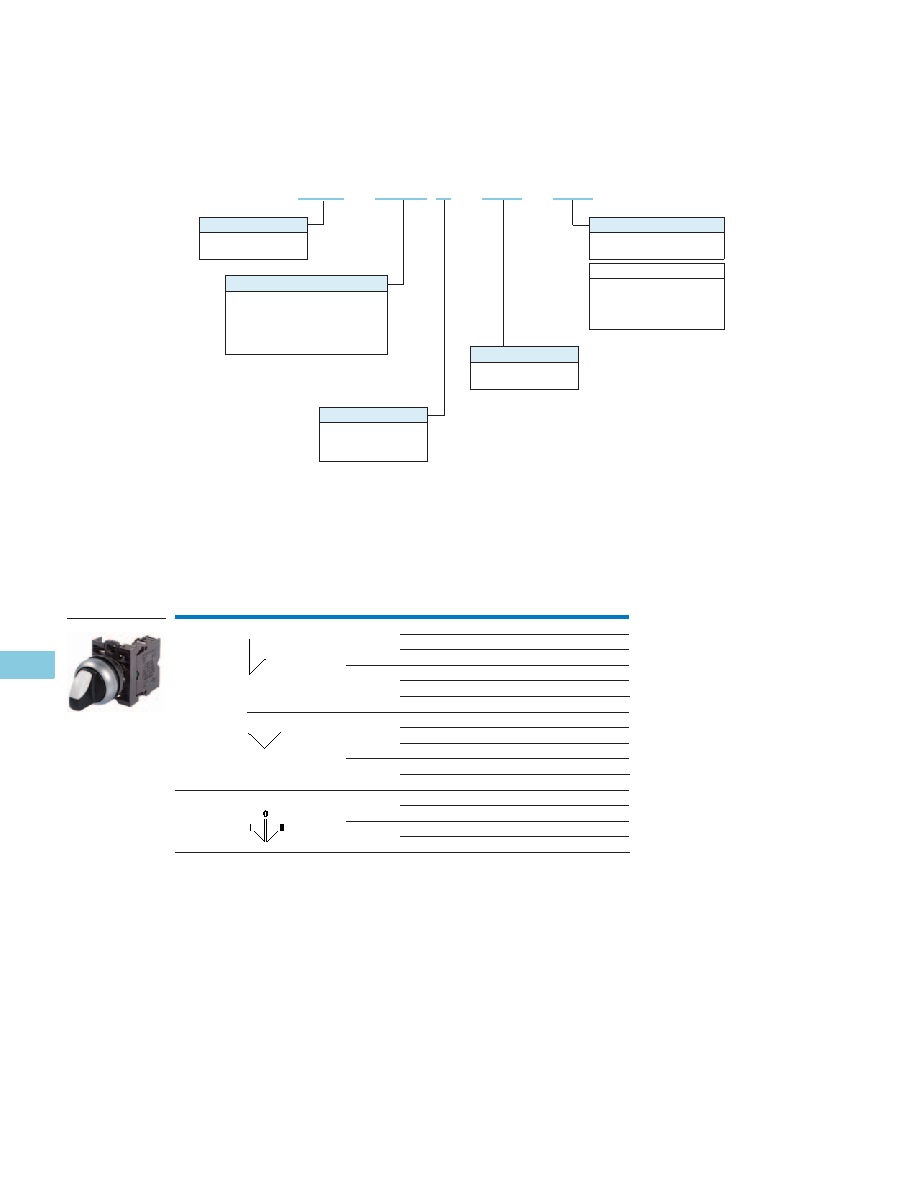

47.4 Pushbuttons and Indicating Lights
M22 Modular Pushbuttons
Catalog Number Selection
Non-Illuminated Selector Switches
Note:
Catalog Number Selection is for illustrative purposes only and not to be used to create new catalog numbers.
Product Selection
Non-Illuminated Selector Switches
Complete Devices, Knob Type
Notes
Includes contact block mounting adapter.
Discount Symbol: 1CD1.
Type
Switching Position
Bezel
Contact Block
Configuration
Catalog Number
Price
U.S. $
2-Position
Maintained
Silver
NO
M22-WRK-K10
24.40
1NO-1NC
M22-WRK-K11
34.50
2NO-2NC
M22-WRK-K22
54.50
Black
NO
M22S-WRK-K10
21.40
1NO-1NC
M22S-WRK-K11
31.50
2NO-2NC
M22S-WRK-K22
51.50
Maintained V
Silver
NO
M22S-WKV-K10
21.40
1NO-1NC
M22S-WKV-K11
31.50
2NO-2NC
M22S-WKV-K22
51.50
Black
NO
M22S-WKV-K10
21.40
1NO-1NC
M22S-WKV-K11
31.50
3-Position
Maintained
Silver
2NO
M22-WRK3-K20
33.00
2NO-2NC
M22-WRK3-K22
53.00
Black
2NO
M22S-WRK3-K20
31.50
2NO-2NC
M22S-WRK3-K22
51.50
Contact Blocks
K10 =NO
K10P = NO, early-make
Options
K11 = NO-NC
K22 = 2NO-2NC
K20 = 2NO
K02 = 2NC
Rotary type only.
Inscription
X91 = AUTO-HAND
X92 = II I
Bezel Color
M22 = Silver
M22S = Black
All momentary selector switches can be
converted in the field to maintained operation
with the removal of a color-coded adapter.
Handle Type
W = Momentary rotary
WK = Momentary knob
WKV = Maintained V-position knob
WR = Maintained rotary
WRK = Maintained knob
Number of Positions
Blank = 2-position
3 = 3-position
4 = 4-position
M 2 2 – W R K
– X 9 1 – K 1 0
–
M22-WKV-K10
