Pushbuttons and Indicating Lights CA04716001E—March 2009
www.eaton.com
75
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47.4
Pushbuttons and Indicating Lights
M22 Modular Pushbuttons

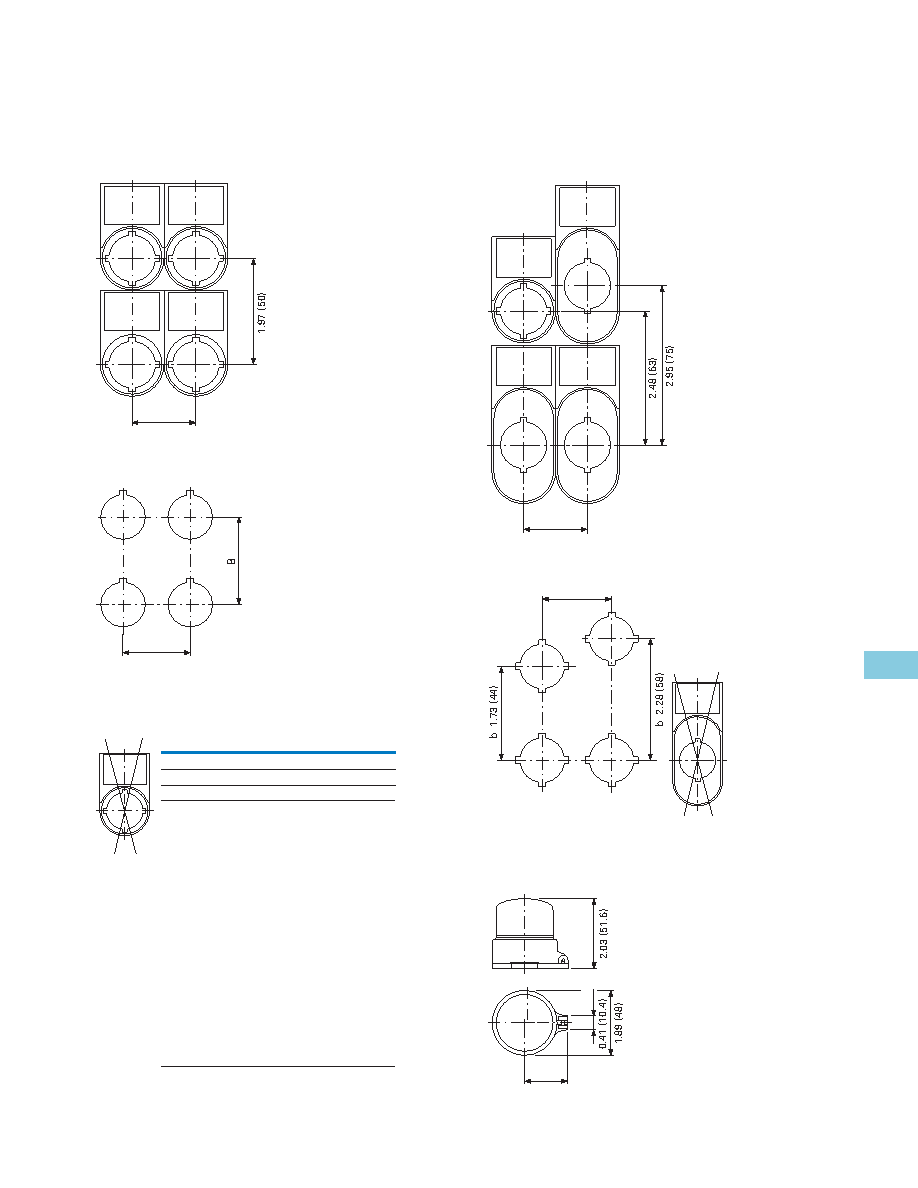

Approximate dimensions in Inches (mm).
Grid Dimension to IEC/EN 60947
Grid Dimension for Various Combinations
Pushbutton Diaphragm
Grid Dimension for M22-DD…
Grid Dimension for M22-DDL…
Emergency Stop Sealing Cover
1.18 (30)
A
Pushbutton diaphragm cannot be combined with label mount.
Catalog Number
A
≥
B
≥
M22(S)-…(IEC/EN 60947)
1.18 (30.0)
1.97 (50.0)
RMQ-Titan min.
1.18 (30.0)
1.58 (40.0)
M22-D… + M22-T-D
1.30 (33.0)
1.58 (40.0)
M22-D(R)P…
1.50 (38.0)
1.58 (40.0)
M22-PV…
1.50 (38.0)
1.58 (40.0)
M22-PV(L) + M22-PL-PV
1.89 (48.0)
2.20 (56.0)
M22-PV(L)(S…) + M22-D…
1.30 (33.0)
1.58 (40.0)
M22-DDL…
1.18 (30.0)
2.17 (55.0)
M22-DDL… + M22-T-DD
1.30 (33.0)
2.28 (58.0)
M22-ST…
1.18 (30.0)
1.97 (50.0)
M22-STDD…
1.18 (30.0)
2.95 (75.0)
M22-CK…
1.18 (30.0)
1.77 (45.0)
M22-CLED…
1.18 (30.0)
1.77 (45.0)
M22-XAK…
3.54 (90.0)
3.54 (90.0)
M22-XZK…
1.30 (33.0)
2.04 (52.0)
M22-XBK…
2.36 (60.0)
2.36 (60.0)
M22-XYK…
1.97 (50.0)
1.97 (50.0)
M22-D4
2.17 (55.0)
2.17 (55.0)
M22-WR…4
1.97 (50.0)
1.97 (50.0)
M22-W…J4
1.97 (50.0)
1.97 (50.0)
1.18 (30)
a 1.18 (30)
Pushbutton
Diaphragm
M22-T-DD
Pushbutton diaphragm cannot be combined with label mount.
1.26 (32)
M22-PL-PV
