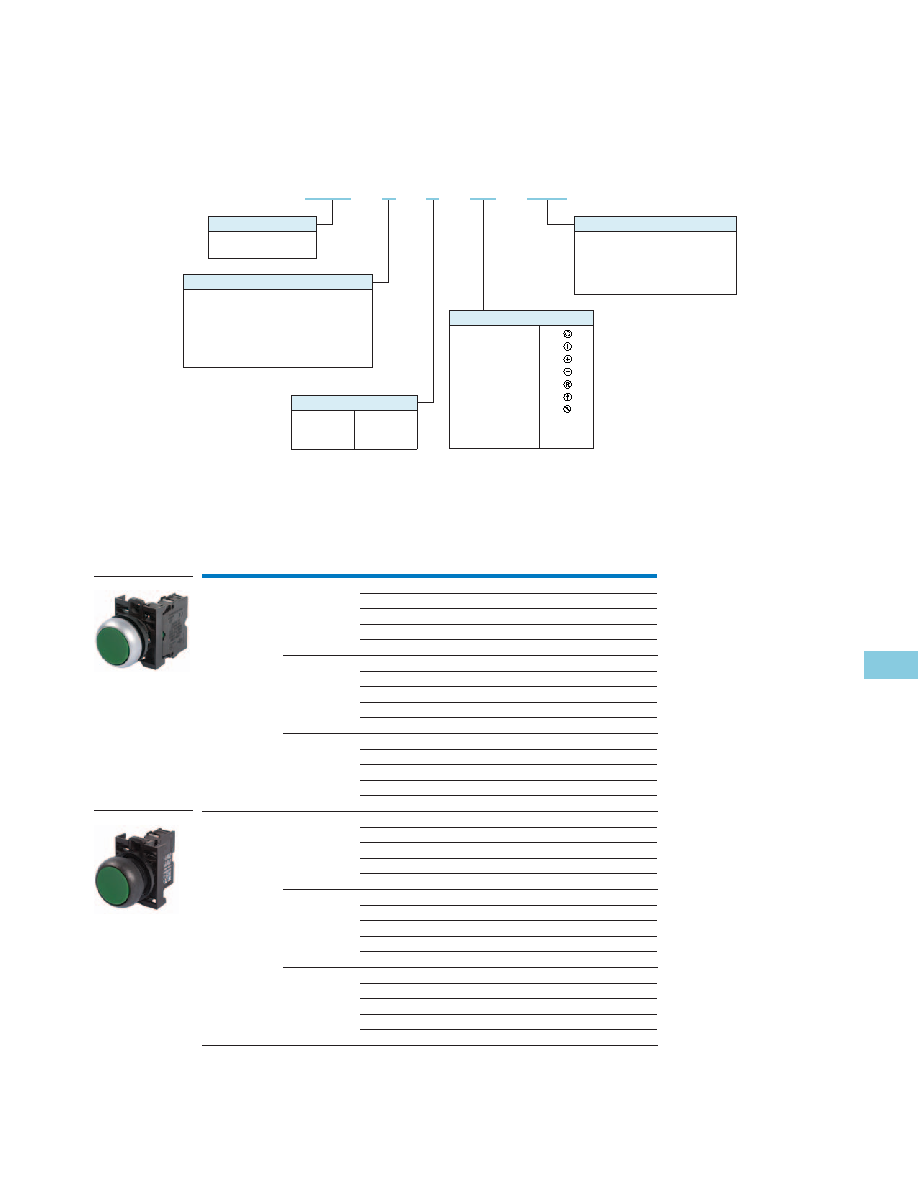

Pushbuttons and Indicating Lights CA04716001E—April 2009
www.eaton.com
5
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47.4
Pushbuttons and Indicating Lights
M22 Modular Pushbuttons
Catalog Number Selection
Non-Illuminated Pushbuttons
Note:
Catalog Number Selection is for illustrative purposes only and not to be used to create new catalog numbers.
Product Selection
Non-Illuminated Pushbuttons, Flush, Momentary
Complete Devices
Note
Discount Symbol: 1CD1.
Bezel
Button Color
Contact Block Configuration
Catalog Number
Price U.S. $
Silver
Black
NO
M22-D-S-K10
17.50
NC
M22-D-S-K01
17.50
2NO
M22-D-S-K20
27.50
2NC
M22-D-S-K02
27.50
1NO-1NC
M22-D-S-K11
27.50
Red
NO
M22-D-R-K10
17.50
NC
M22-D-R-K01
17.50
2NO
M22-D-R-K20
27.50
2NC
M22-D-R-K02
27.50
1NO-1NC
M22-D-R-K11
27.50
Green
NO
M22-D-G-K10
17.50
NC
M22-D-G-K01
17.50
2NO
M22-D-G-K20
27.50
2NC
M22-D-G-K02
27.50
1NO-1NC
M22-D-G-K11
27.50
Black
Black
NO
M22S-D-S-K10
16.00
NC
M22S-D-S-K01
16.00
2NO
M22S-D-S-K20
26.00
2NC
M22S-D-S-K02
26.00
1NO-1NC
M22S-D-S-K11
26.00
Red
NO
M22S-D-R-K10
16.00
NC
M22S-D-R-K01
16.00
2NO
M22S-D-R-K20
26.00
2NC
M22S-D-R-K02
26.00
1NO-1NC
M22S-D-R-K11
26.00
Green
NO
M22S-D-G-K10
16.00
NC
M22S-D-G-K01
16.00
2NO
M22S-D-G-K20
26.00
2NC
M22S-D-G-K02
26.00
1NO-1NC
M22S-D-G-K11
26.00
Bezel
M22 = Silver
M22S = Black
M 2 2 –D –S –X 0 – K 1 0
Silver bezel only.
Operator Type
D = Flush momentary
DH = Extended momentary
DG = Flush with guard
DR = Flush maintained
DGH = Extended momentary with guard
DRH = Extended maintained
Button Plate Color
G = Green
Y = Yellow
B = Blue
S = Black
R = Red
W = White
Inscription
GB0 = STOP
GB1 = START
GB2 = CLOSE
GB3 =UP
GB4 = DOWN
GB5 = OFF
GB6 =ON
GB14 = RESET
GB15 = FORWARD
GB16 = REVERSE
X0 =
X1 =
X4 =
X5 =
X6 =
X7 =
X8 =
Contact Blocks
K10 = 1NO
K01 = 1NC
K20 = 2NO
K02 = 2NC
K11 = 1NO-1NC
K30 = 3NO
K03 = 3NC
K21 = 2NO-1NC
K12 = 1NO-2NC
M22-D-G-K10
M22S-D-G-K10
