Pushbuttons and Indicating Lights CA04716001E—March 2009
www.eaton.com
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47

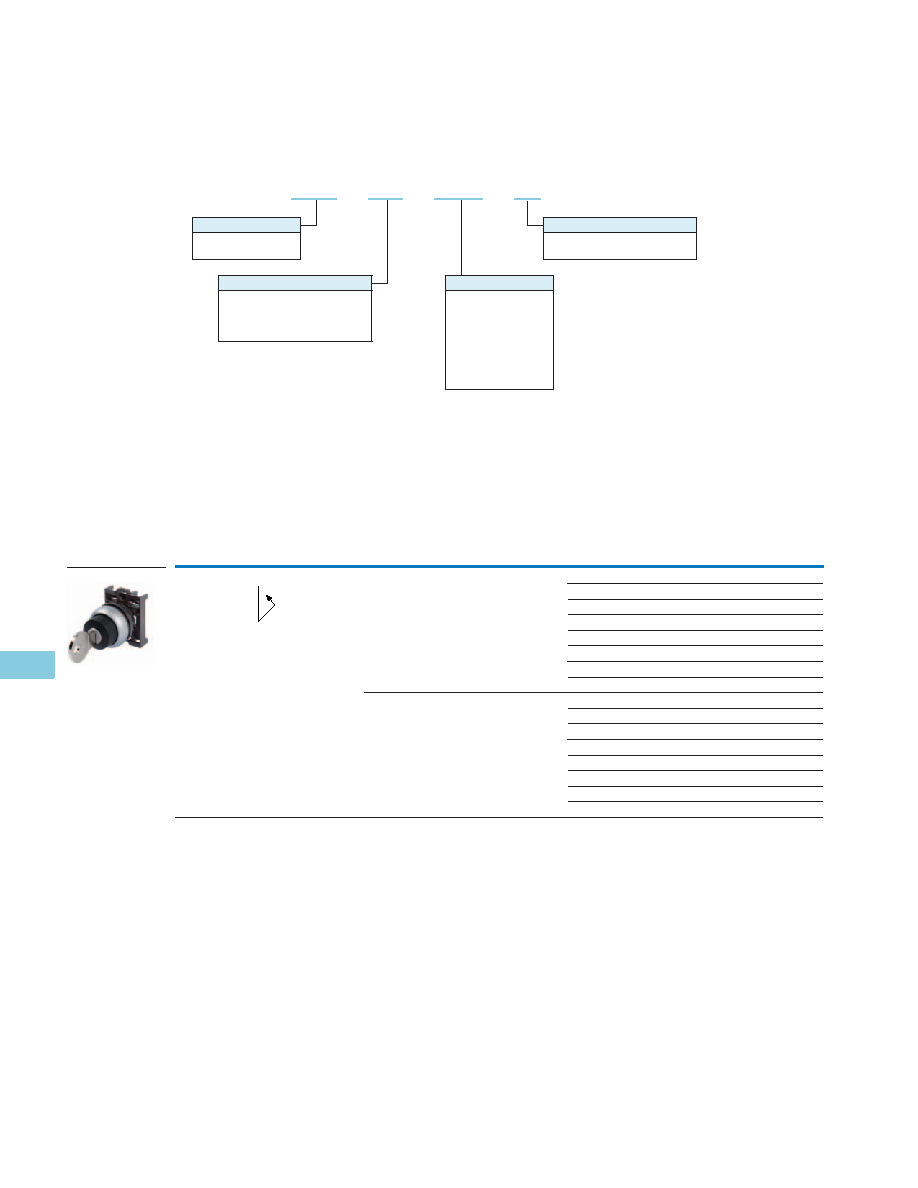

47.4 Pushbuttons and Indicating Lights
M22 Modular Pushbuttons
Catalog Number Selection
Key-Operated Selector Switches
Note:
Catalog Number Selection is for illustrative purposes only and not to be used to create new catalog numbers.
Product Selection
Key-Operated Selector Switches
Components
Operators Only
Notes
Includes 1 key.
Key removal positions can be modified in the field using coding adapters; see chart on Page 66.
Includes contact block mounting adapter.
Momentary selector switches can be converted in the field to maintained operation with the removal of a color coded adapter. See Page 66.
Discount Symbol: 1CD1.
Bezel Color
M22 = Silver
M22S = Black
M 2 2 –W S – M S 2 –A 1
Key Code
Blank =MS1
MS2 =MS2
MS3 =MS3
MS4 =MS4
MS5 =MS5
MS6 =MS6
MS7 =MS7
MS8 =MS8
Handle Type
WS = 2-Position, Momentary
WS3 = 3-Position, Momentary
WRS = 2-Position, Maintained
WRS3 = 3-Position, Maintained
Key Removal Position
Refer to coding adapter assembly and
functional test guide on Page 66.
Type
Switching Position
Bezel
Key Removal Position
Key Code
Catalog Number
Price U.S. $
2-Position
Momentary
Silver
Return from Right, Key
Removable Left
MS1
M22-WS
53.50
MS2
M22-WS-MS2
53.50
MS3
M22-WS-MS3
53.50
MS4
M22-WS-MS4
53.50
MS5
M22-WS-MS5
53.50
MS6
M22-WS-MS6
53.50
MS7
M22-WS-MS7
53.50
MS8
M22-WS-MS8
53.50
Black
Return from Right, Key
Removable Left
MS1
M22S-WS
52.00
MS2
M22S-WS-MS2
52.00
MS3
M22S-WS-MS3
52.00
MS4
M22S-WS-MS4
52.00
MS5
M22S-WS-MS5
52.00
MS6
M22S-WS-MS6
52.00
MS7
M22S-WS-MS7
52.00
MS8
M22S-WS-MS8
52.00
M22-WS
