This is information on a product in full production.

March 2016

DocID022998 Rev 4

1/35

ST1S31

3 A DC step-down switching regulator

Datasheet

- production data

Features

 3 A DC output current

 2.8 V to 5.5 V input voltage

 Output voltage adjustable from 0.8 V

 1.5 MHz switching frequency

 Internal soft-start and enable

 Integrated 60 m and 45 m power MOSFETs

 All ceramic capacitor

 Power Good (POR)

 Cycle-by-cycle current limiting

 Current foldback short-circuit protection

 VFDFPN 3 x 3 - 8L, SO8 packages

Applications

 µP/ASIC/DSP/FPGA core and I/O supplies

 Point of load for: STB, TVs, DVDs

 Optical storage, hard disk drive, printers,

audio/graphic cards

Description

The ST1S31 device is an internally compensated

1.5 MHz fixed-frequency PWM synchronous step-

down regulator. The ST1S31 operates from 2.8 V

to 5.5 V input, while it regulates an output voltage

as low as 0.8 V and up to VIN.

The ST1S31 integrates a 60 m

 high-side switch

and a 45 m

 synchronous rectifier allowing very

high efficiency with very low output voltages.

The peak current mode control with internal

compensation delivers a very compact solution

with a minimum component count.

The ST1S31 device is available in 3 mm x 3 mm,

8 lead VFDFPN and SO8 packages.

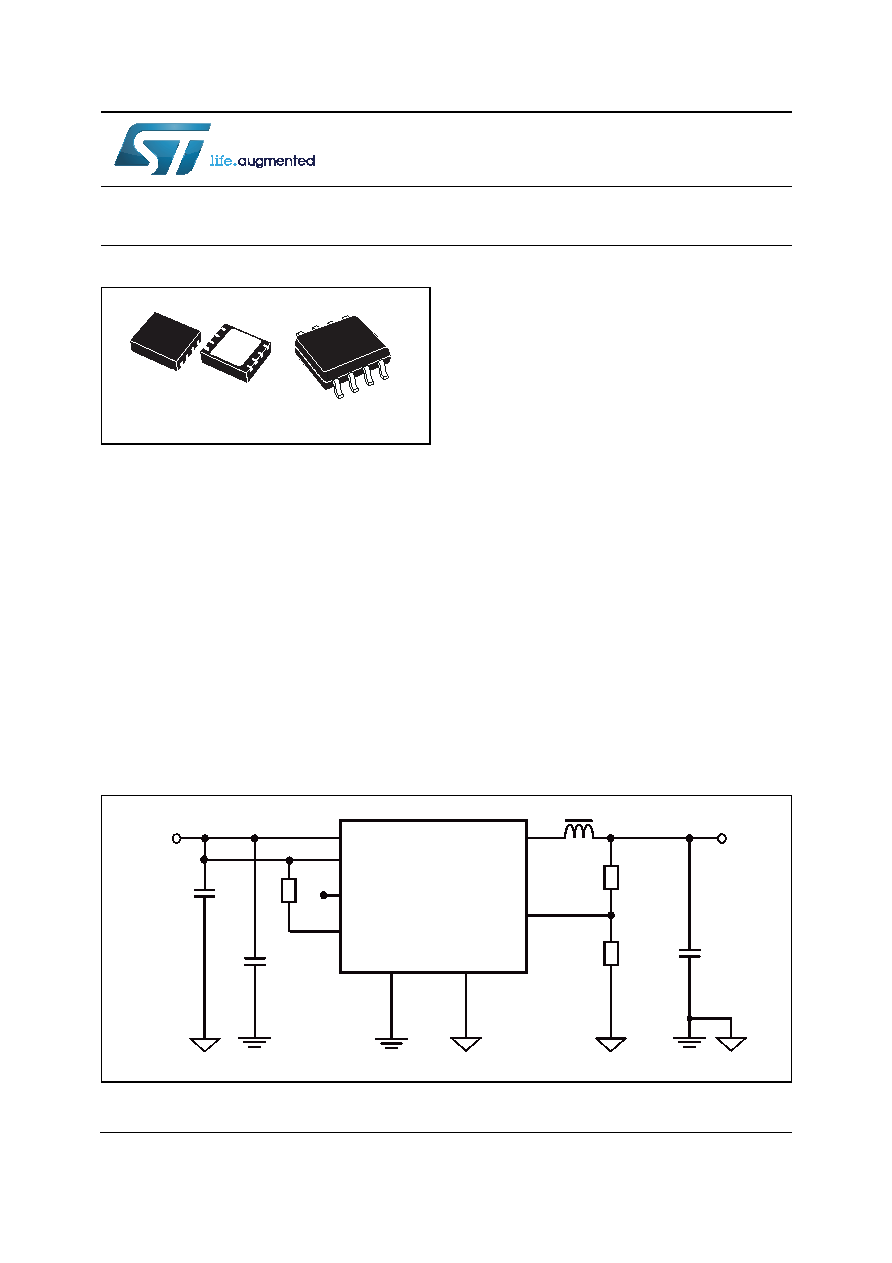

Figure 1. Application circuit
