DocID022998 Rev 4
29/35
ST1S31
Typical characteristics
35

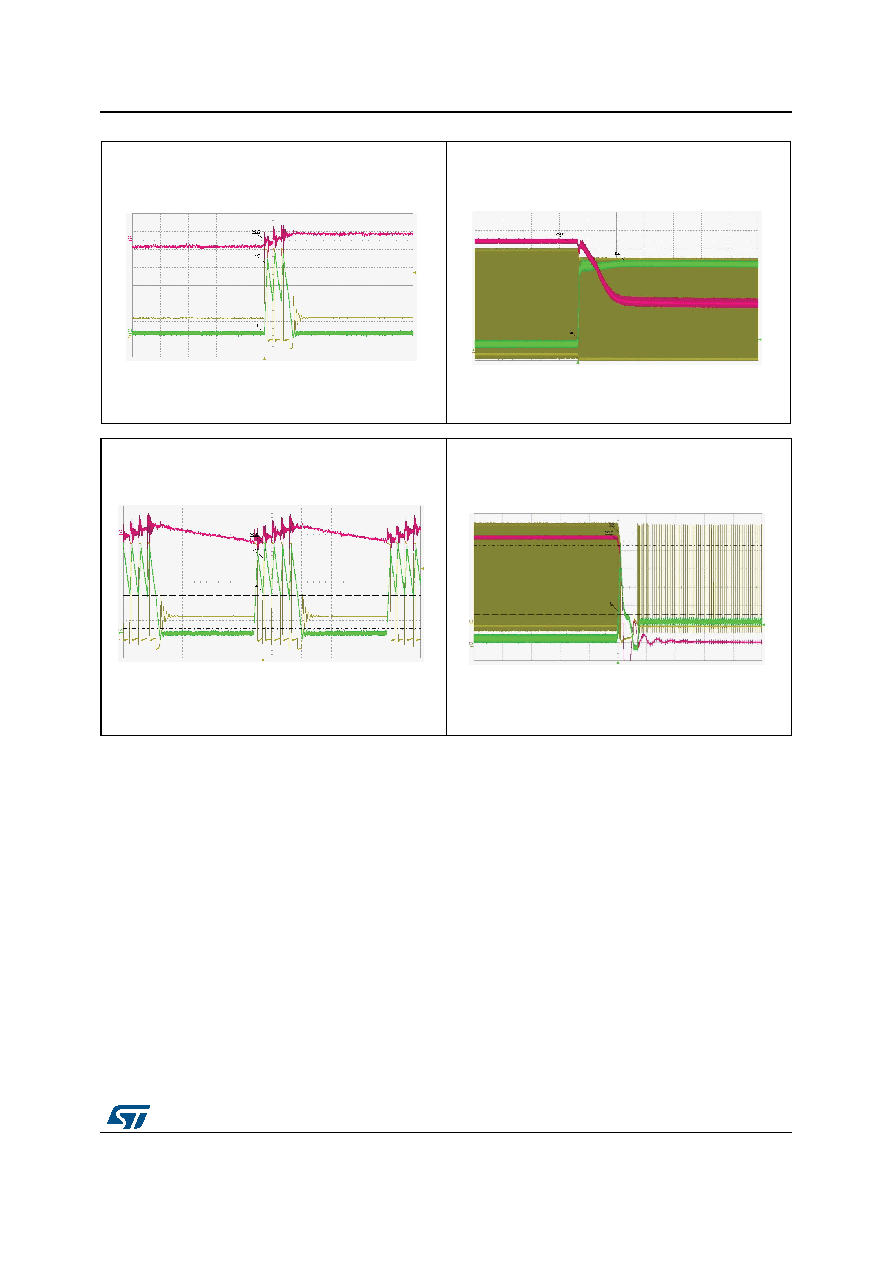

Figure 23. Zero load operation
Figure 24. Overcurrent protection
Figure 25. 100 mA operation
Figure 26. Short-circuit protection
Green: IL (100mA/div)
Yellow: SW (1V/div)
Red: VOUT (20mV/div)
Timescale 2us/div
V
IN =5V, V
OUT =1.2V, I
O=0A
AM11429v1
AM11430v1
Green: IL (1A/div)
Yellow: SW (1V/div)
Red: VOUT(200mV/div)
Timescale 100us/div
V
IN =5.5V
, V
OUT =1.2V, I
LOAD =0.5A
- > 4.8A
Red: VOUT
AM11431v1
Green: IL (100mA/div)
Yellow: SW (1V/div)
(20mV/div)
Timescale 2us/div
VIN =5V, VOUT=1.2V, IO=100mA
AM11430v1
AM11430v1
Green: IL (1A/div)
Yellow: SW (1V/div)
Red: VOUT
(200mV/div)
Timescale 50us/div
VIN=5.5V, VOUT=1.2V
