Data Sheet

ADPA7009-2

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 9 of 24

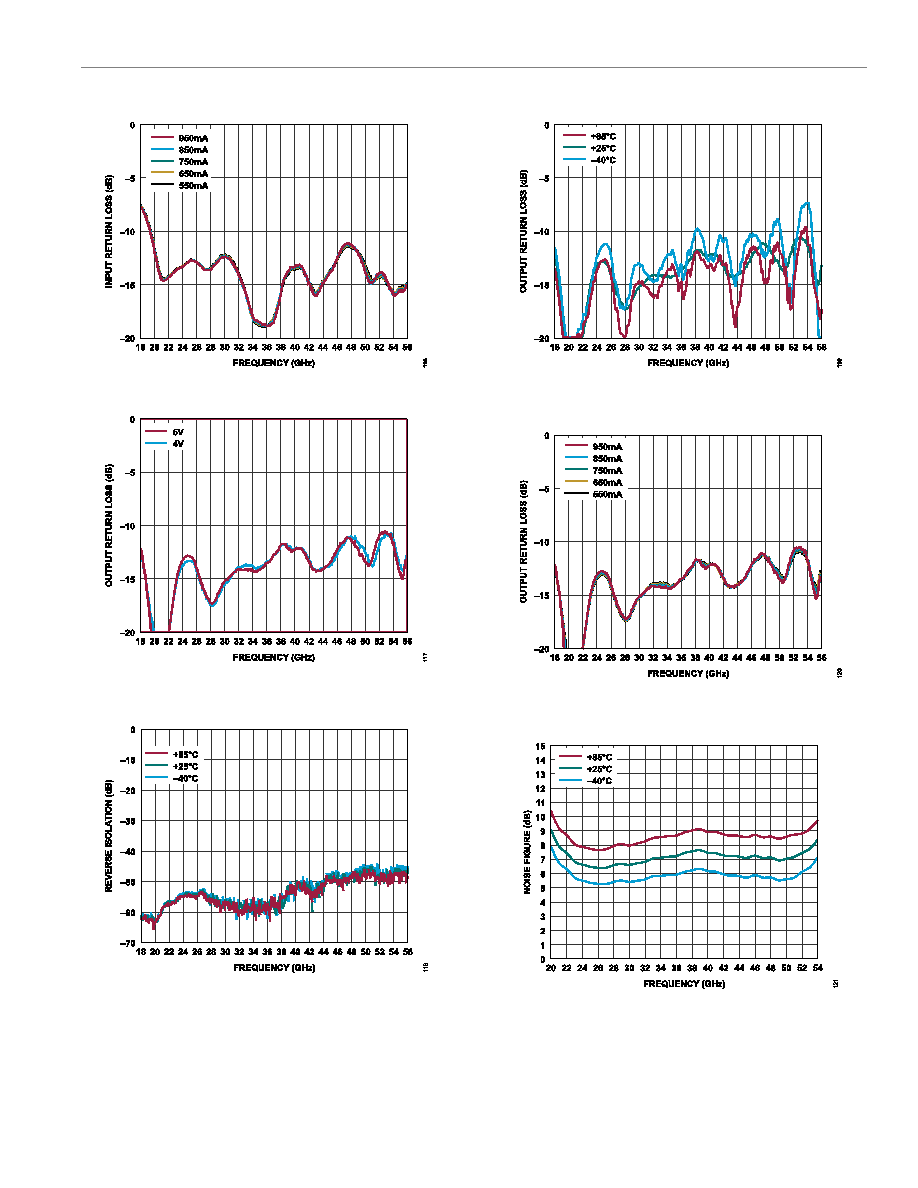

Figure 16. Input Return Loss vs. Frequency for Various IDQ Values, VDD = 5 V

Figure 17. Output Return Loss vs. Frequency for Various VDD Values,

IDQ = 850 mA

Figure 18. Reverse Isolation vs. Frequency for Various Temperatures,

VDD = 5 V, IDQ = 850 mA

Figure 19. Output Return Loss vs. Frequency for Various Temperatures,

VDD = 5 V, IDQ = 850 mA

Figure 20. Output Return Loss vs. Frequency for Various IDQ Values,

VDD = 5 V

Figure 21. Noise Figure vs. Frequency for Various Temperatures, VDD = 5 V,

IDQ = 850 mA
