Data Sheet

ADPA7009-2

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 14 of 24

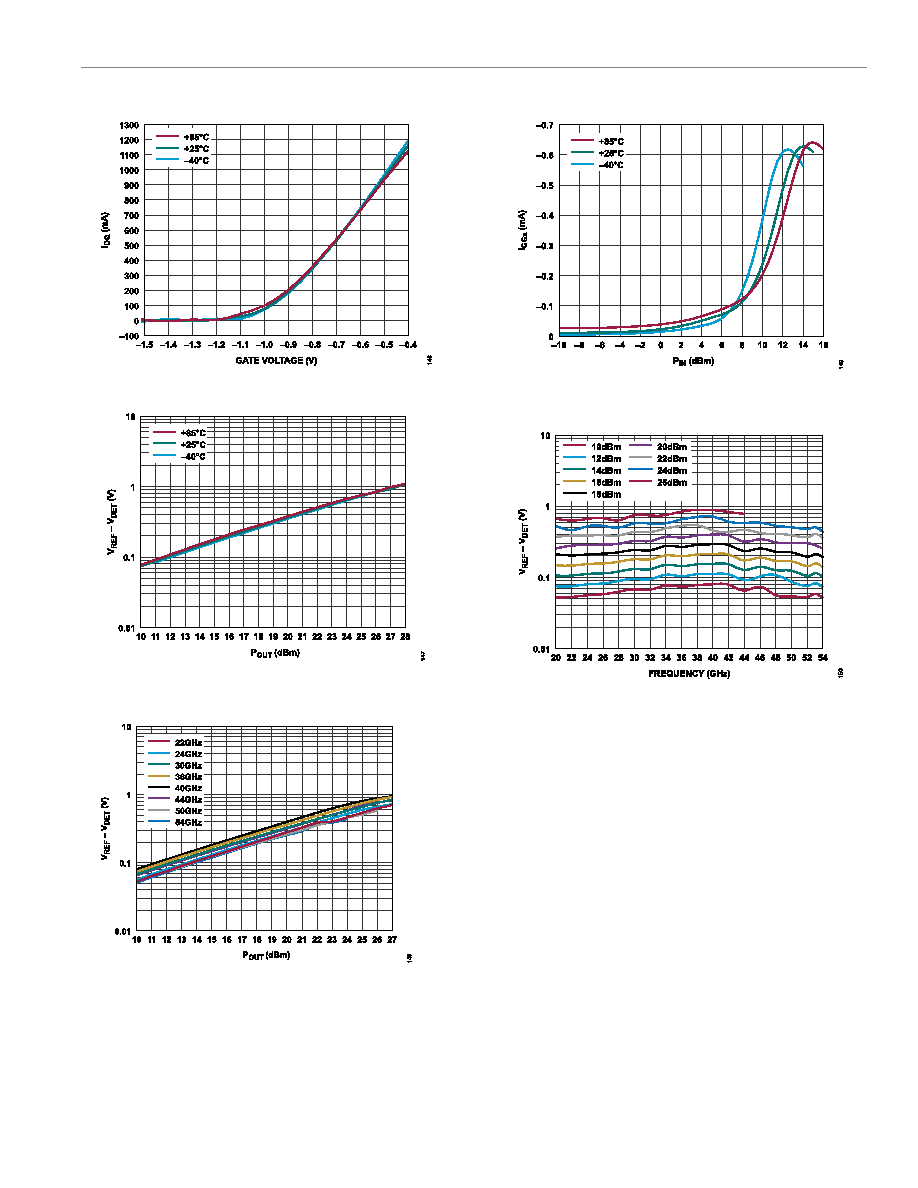

Figure 46. IDQ vs. Gate Voltage for Various Temperatures, VDD = 5 V

Figure 47. Detector Voltage (VREF – VDET) vs. POUT for Various Temperatures,

36 GHz, VDD = 5 V, IDQ = 850 mA

Figure 48. VREF – VDET vs. POUT for Various Frequencies,

VDD = 5 V, IDQ = 850 mA

Figure 49. VGGX Current (IGGx) vs. PIN for Various Temperatures, 36 GHz,

VDD = 5 V, IDQ = 850 mA

Figure 50. VREF – VDET vs. Frequency for Various POUT Values,

VDD = 5 V, IDQ = 850 mA
