RF / IR Encoder / Decoder Chipset

RF600E

RF Evaluation Boards,

RF600D

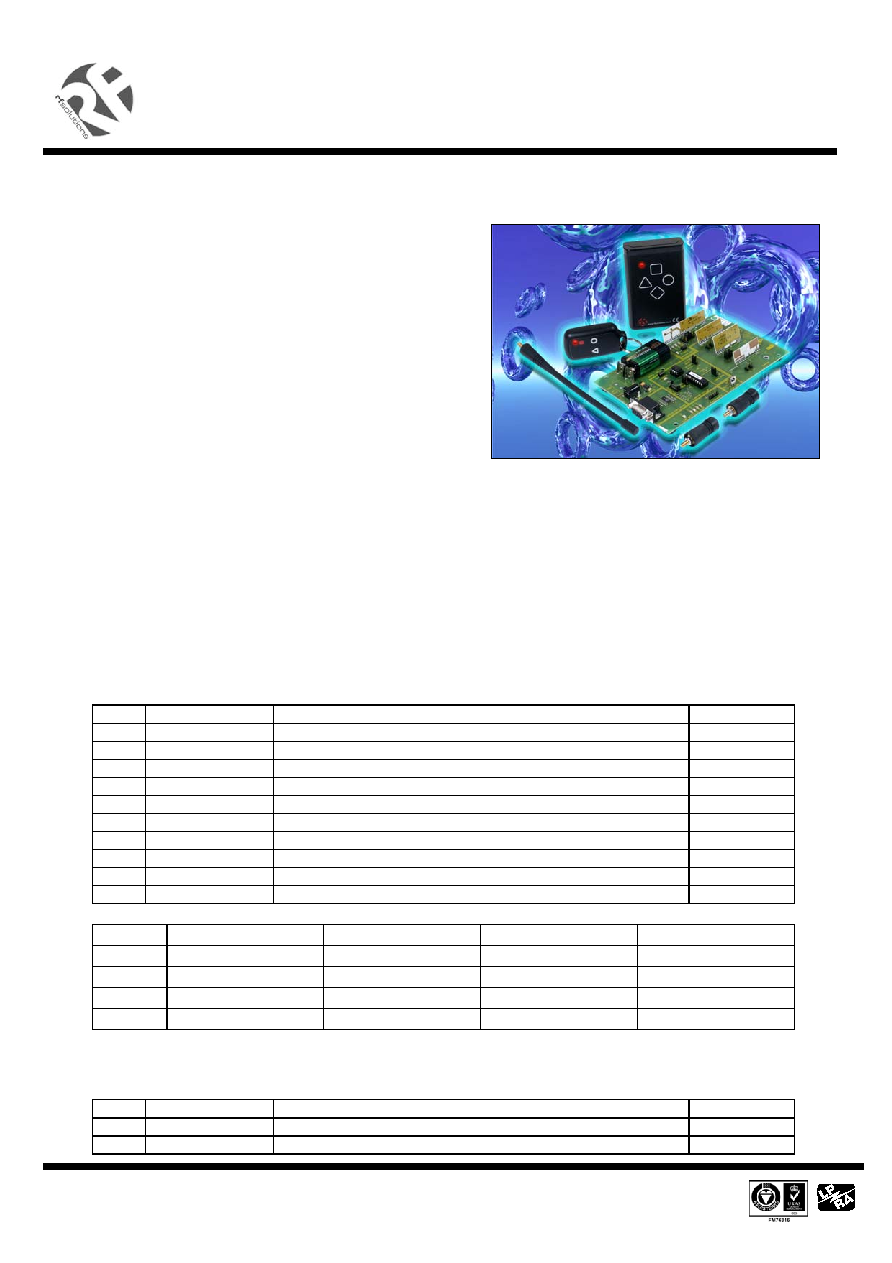

RFEVAL Evaluation Kit

The RFEVAL2 / 3 are hardware development platforms designed to assist the engineer with the design of

a remote telemetry application. This kit provides several projects. Each project utilises an ‘off the shelf’

transmitter encoder incorporating the RF600E. The RFEVAL receiver board use s the RF600D to perform

RF / IR reception and decoding providing a variety of outputs.

Our aim with this Evaluation kit is to assist the engineer in achieving a remote telemetry application with;

1.

Optimum Range (we expect you to achieve)

a.

AM project upto 80m

b.

FM project upto 150m

2.

Design of simple integrated receiver decoder

3.

Minimal hardware costs for the receiver decoder

RF EVAL2 Contents List:

Item

Part No

Description

Qty

1

AM-110C3-433

pocket keyfob transmitter433MHz, 3 Switch

1

2

102C4-433F

Transmitter/Encoder 433.92MHz, Hand Held, 4 Switch

1

3

SA123

RFEVAL2 Receiver Decoder Assembly

1

4

AM-HRR3-433

Receiver 'Hybrid' Module AM 433MHz, SIL

1

5

AM-RRS3-433

Receiver 'Hybrid' Module Super Het, AM 433MHz, SIL

1

6

AM-HiRK-433

Rx/Decoder AM Superhet 433MHz SIL Hybrid5V Keeloq

1

7

FM-RRFQ1-433

FM Receiver 433.92MHz

1

8

FLEXI-M4-433

¼ Wave Antenna

1

9

PHC-M4-433

Helical Antenna

1

10

BATT-PP3

PP3 Battery

1

All components required to complete the following projects are supplied.

Project

Transmitter

Receiver

Outputs

Range

1

AM-110C3-433

AM-HiRKB-433

Digital

100m

2

AM-110C3-433

AM-HRR3-433

Digital & RS232

40m

2

AM-110C3-433

AM-RRS3-433

Digital & RS232

100m

4

102C4-433F

FM-RRFQ1-433

Digital & RS232

150m

RFEVAL3 consists a Receiver decoder board only with the RF600D, this requires the relevant RF

Receiver module and antenna to generate a complete receiver Decoder (this is an RF600D design)

Contents List:

Item

Part No

Description

Qty

1

SA123

Telemetry Receiver Decoder Board

1

2

BATT-PP3

PP3 Battery

1
