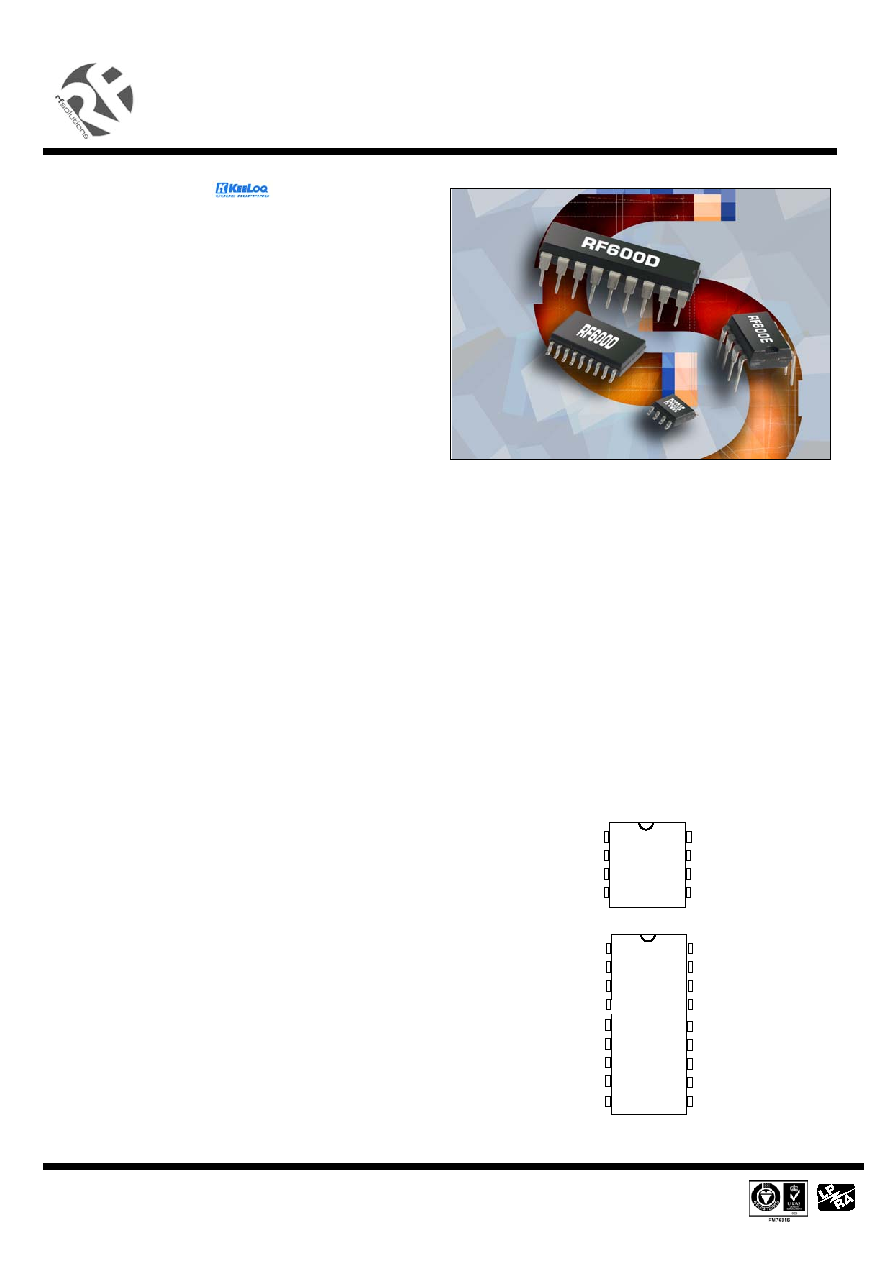

RF / IR Encoder / Decoder Chipset

RF600E

RF Evaluation Boards,

RF600D

• Highly Secure

Protocol

• RF Encoder & Decoder IC’s

• Simple to Use

• Stand Alone Operation

• Achieves Maximum Range from RF Modules

• 1 – 4 Switch Options (15 states)

• Decoder Serial Output

• Led Indication of Transmission

• Directly Compatible with Keeloq Decoder

• Easy Learn Feature of Transmitters

• Sleep Mode

• Up to 48 Transmitters can be Learned

Description

The RF Solutions RF600E, & RF600D are easy to use

encoder and decoder I/C’s. They have been designed to

achieve the maximum possible range from any radio / Infra

Red transmitter receiver set.

Unlike other encoder /decoder devices the RF600E/600D

provide an unprecedented level of security which prevents

copying or grabbing whist also obtaining optimum range

from the transmitter and receiver.

The devices are very easy to use and can be inserted

directly into a circuit. The RF600D has an easy learn

feature enabling it to learn up to 7 unique RF600E encoder

devices in standalone mode or up to 48 encoder devices

when used in conjunction with an external EEPROM.

These devices enable a simple but secure remote

telemetry application whilst obtaining the maximum range

from the radio set.

• Optimum Range:

⇒

AM up to 100m

⇒

FM up to 200m

⇒

IR up to 20m

• Compatible with RF Solutions Systems

Typical Applications

• General Purpose Remote Control

• Automotive alarm systems

• Gate and garage openers

• Electronic door locks

• Identity tokens

• Burglar alarm systems

Encoder

• 2.0-6.6V operation

RF600D

RF600E

1

2

3

4

8

7

6

5

18

17

16

15

14

13

12

11

10

1

2

3

4

5

6

7

8

9

• Automatic Battery Level Monitor

• ‘Manchester’ modulation

• 8 pin DIP/SOIC package

Decoder

• 18 pin DIP/SOIC package

• 4 Digital Outputs (15 States)

• Asynchronous serial interface

• 4.5V – 5.5V operation

DS600-9 Sept ‘04

Page 1
