CIRCUIT BOARD LAYOUT RECOMMENDATIONS

Good circuit board layout is essential for obtaining optimum

performance. Poor circuit board layout degrades the output

voltage ripple; the load, line, and feedback regulation; and the

EMI and electromagnetic compatibility performance. For

optimum layout, refer to the following guidelines:



Use separate analog and power ground planes. Connect the

ground reference of sensitive analog circuitry, such as the

output voltage divider component and the compensation

and frequency resistor, to analog ground. In addition,

connect the ground references of power components, such

as input and output capacitors, to power ground. Connect

both ground planes to the exposed pad of the ADP2441.



Place one end of the input capacitor as close as possible to

the VIN pin, and connect the other end to the closest

power ground plane.



Place a high frequency filter capacitor between the VIN

and PGND pins, as close as possible to the PGND pin.



VCC is the internal regulator output. Place a 1 μF capacitor

between the VCC and AGND pins and another 1 μF

capacitor between the VCC and PGND pins. Place the

capacitors as close as possible to the pins.



Ensure that the high current loop traces are as short and wide

as possible. Make the high current path from CIN through

L, COUT, and the power ground plane back to CIN as short as

possible. To accomplish this, ensure that the input and output

capacitors share a common power ground plane. In addition,

make the high current path from the PGND pin through

L and COUT back to the power ground plane as short as

possible. To do this, ensure that the PGND pin is tied to

the PGND plane as close as possible to the input and output

capacitors (see Figure 66).



Connect the ADP2441 exposed pad to a large copper plane

to maximize its power dissipation capability.



Place the feedback resistor divider network as close as possible

to the FB pin to prevent noise pickup. The length of the trace

connecting the top of the feedback resistor divider to the

output must be as short as possible while being kept away

from the high current traces and switch node to avoid noise

pickup. Place an analog ground plane on either side of the

FB trace to further reduce noise pickup.



The placement and routing of the compensation components

are critical for optimum performance of ADP2441. Place

the compensation components as close as possible to the

COMP pin. Use 0402 sized compensation components to

allow closer placement, which in turn reduces parasitic noise.

Surround the compensation components with AGND to

prevent noise pickup.



The FREQ pin is sensitive to noise; therefore, the frequency

resistor should be located as close as possible to the FREQ pin

and should be routed with minimal trace length. The small

signal components should be grounded to the analog

ground path.

VIN

COMP

PGND

VIN

ADP2441

VOUT

VIN

C10

VOUT

NOTES

1. THICK LINE INDICATES HIGH CURRENT TRACE.

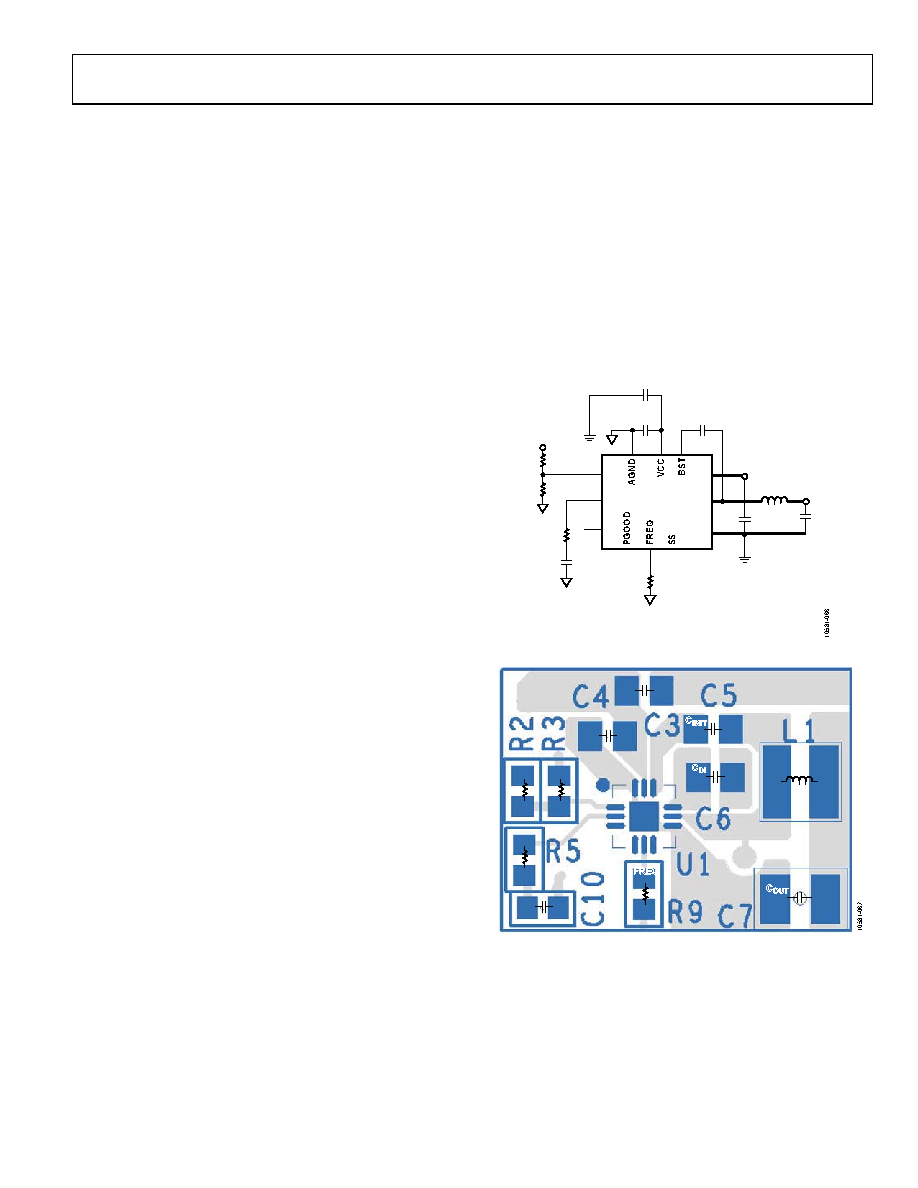

Figure 66. High Current Trace

CIN

CBST

COUT

VIN

VOUT

VCC

COMP

FREQ

PGND

AGND

Figure 67. PCB Top Layer Placement
