ADP2441
Data Sheet
Rev. A | Page 10 of 32
0
200
400
600
800
1000
1200
0
5
10
15
20
25
30
35
40
VIN (V)
fSW = 300kHz
fSW = 1MHz
fSW = 700kHz

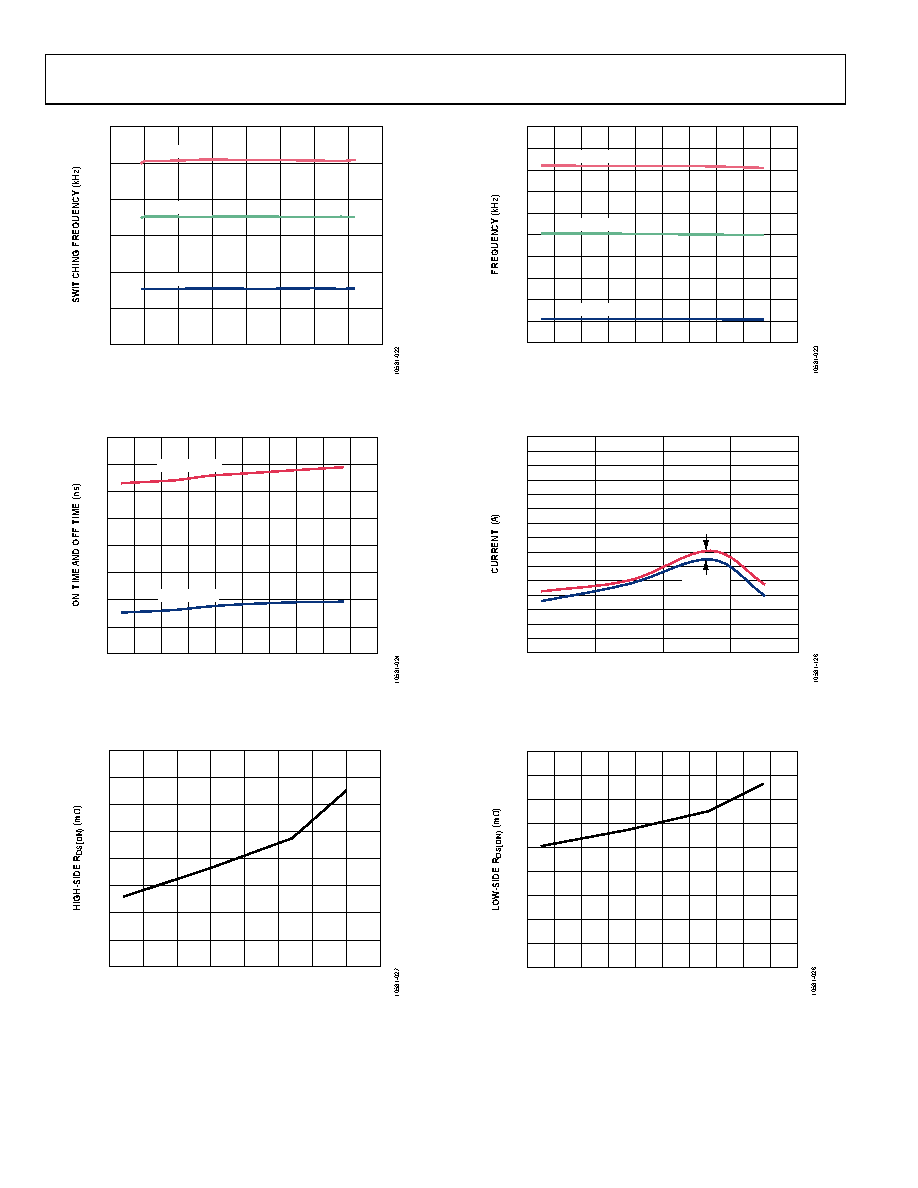

Figure 22. Switching Frequency vs. Supply
0
25
50
75
100
125
150
175
200
–50
–30
–10
10
30
50
70
90
110
130
150
TEMPERATURE (°C)
MINIMUM ON
MINIMUM OFF
Figure 23. Minimum On Time and Minimum Off Time vs. Temperature
100
120
140
160
180
200
220
240
260
–50
–25
0
25
50
75
100
125
150
TEMPERATURE (°C)
Figure 24. High-Side RDS(ON) vs. Temperature
200
300
400
500
600
700
800
900
1000
1100
1200
–50
–30
–10
10
30
50
70
90
110
130
150
TEMPERATURE (°C)
fSW = 300kHz
fSW = 1MHz
fSW = 700kHz
Figure 25. Switching Frequency vs. Temperature
1.50
1.52
1.54
1.56
1.58
1.60
1.62
1.64
1.66
1.68
1.70
1.72
1.74
1.76
1.78
1.80
–50
0
50
100
150
TEMPERATURE (°C)
VIN = 36V
VIN = 4.5V
Figure 26. Current Limit vs. Temperature
0
20
40
60
80
100
120
140
160
180
–50
–30
–10
10
30
50
70
90
110
130
150
TEMPERATURE (°C)
Figure 27. Low-Side RDS(ON) vs. Temperature
