ADJUSTABLE FREQUENCY

The ADP2441 features a programmable oscillator frequency with

a resistor connected between the FREQ and AGND pins.

At power-up, the FREQ pin is forced to 1.2 V and current flows

from the FREQ pin to AGND; the current value is based on the

resistor value on the FREQ pin. Then, the same current is

replicated in the oscillator to set the switching frequency. Note

that the resistor connected to the FREQ pin should be placed as

close as possible to the FREQ pin (see the Applications

Information section for more information).

POWER GOOD

The PGOOD pin is an open-drain output that indicates the

status of the output voltage. When the voltage of the FB pin is

between 92% and 109% of the internal reference voltage, the

PGOOD output is pulled high, provided there is a pull-up

resistor connected to the pin. When the voltage of the FB pin is

not within this range, the PGOOD output is pulled low to

AGND. The PGOOD threshold is shown in Figure 48.

Likewise, the PGOOD pin is pulled low to AGND when the

input voltage is below the internal UVLO threshold, when the

EN pin is low, or when a thermal shutdown event has occurred.

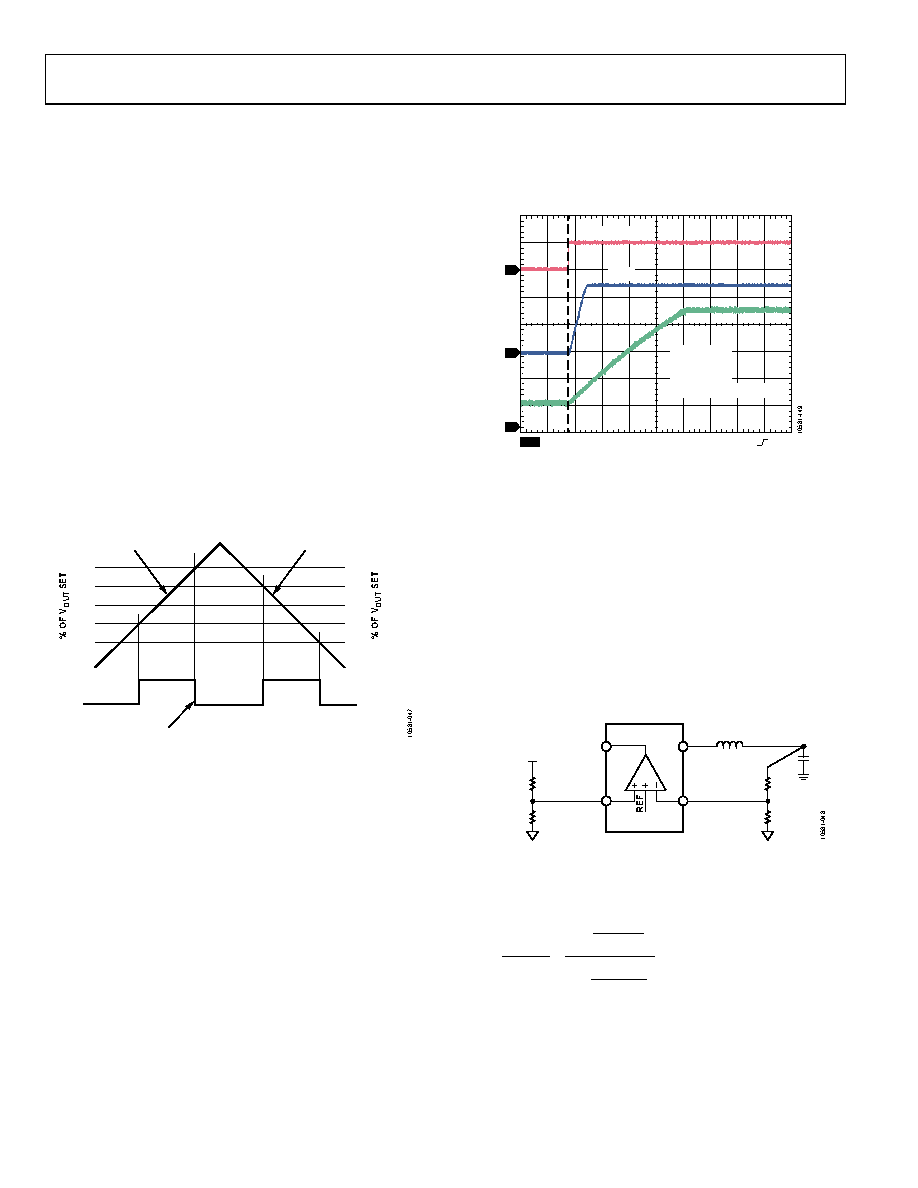

VOUT RISING

VOUT FALLING

110

116

POWER

GOOD

OVERVOLAGE

UNDERVOLTAGE

PGOOD

UNDERVOLTAGE

POWER

GOOD

100

Figure 48. PGOOD Threshold

In a typical application, a pull-up resistor connected between the

PGOOD pin and an external supply is used to generate a logic

signal. This pull-up resistor should range in value from 30 kΩ

to 100 kΩ, and the external supply should be less than 5.5 V.

SOFT START

The ADP2441 soft start feature allows the output voltage to ramp

up in a controlled manner, limiting the inrush current during

startup. An external capacitor connected between the SS/TRK

and AGND pins is required to program the soft start time.

The programmable soft start feature is useful when a load

requires a controlled voltage slew rate at startup. When the

regulator powers up and soft start is enabled, the internal

1 μA current source charges the external soft start capacitor,

establishing a voltage ramp slope at the SS pin, as shown in

Figure 49. The soft start period ends when the soft start ramp

voltage exceeds the internal reference of 0.6 V. The ADP2441

also features an internal default soft start time of 2 ms. For more

information, see the Applications Information section.

CH1 2.00V BW

CH2 1.00V

CH3 5.00V

M10.0ms

A CH1

2.52V

VOUT

ENABLE

VIN = 24V

VOUT = 5V

fSW = 700kHz

LOAD = 1A

EXTERNAL SS = 10nF

Figure 49. External Soft Start

TRACKING

The ADP2441 has a tracking feature that allows the output

voltage to track an external voltage. This feature is especially

useful in a system where power supply sequencing and tracking

is required.

The ADP2441 SS/TRK pin is connected to the internal error

amplifier. The internal error amplifier includes three inputs: the

internal reference voltage, the SS/TRK voltage, and the feedback

voltage. The error amplifier regulates the feedback voltage to

the lower of the other two voltages. To track a master voltage,

tie the SS/TRK pin to a resistor divider from the master voltage

as shown in Figure 50.

MASTER

VOLTAGE

COMP

SS/TRK

ADP2441

RTRK_TOP

RTRK_BOT

RTOP

VOUT

RBOTTOM

Figure 50. Tracking Feature Block Diagram

The ratio of the slave output voltage to the master voltage is a

function of the two dividers as follows:































BOT

TRK

TOP

TRK

BOTTOM

TOP

MASTER

OUT

(1)
