K3HB-R datasheet(8/32 Pages) OMRON

8 / 32 page

Rotary Pulse Indicator

K3HB-R

Absolute

ratio

Multiples input B divided by input A ( ) by 100 and

displays the ratio as a percentage (%).

Display unit: %

Measuring the speed ratio between two rollers

Error ratio

Multiplies the error between input A and input B

(

−1) by 100 and displays the ratio as a percentage

(%).

Display unit: %

Measuring the line speed error ratio between two conveyors

Rotational

difference

Displays the difference between input A and input B

(B - A) as the rotation (rpm) speed error or

circumferential speed error.

Display unit:

rpm, rps, rph,

Hz, kHz, mm/s, m/s

m/min, km/h

l/min, l/h, etc.

Measuring the rotation (rpm)/circumferential speed error (absolute error)

between two conveyors

Flow rate

ratio

Displays the flow rate ratio of B from inputs A and B

(

) as a ratio (%).

Display unit: %

Monitoring liquid mixture flow rate ratio

Passing

time

Passing time (s) = 1/ƒa

ƒa: Input frequency (Hz)

Set the prescale value for the desired display unit using

the following table for reference.

N = Pulses per rotation

πd = Circumferential length per rotation (m)

L = Length of process (m)

Displaying the passing time for a conveyor line

Function

Operation

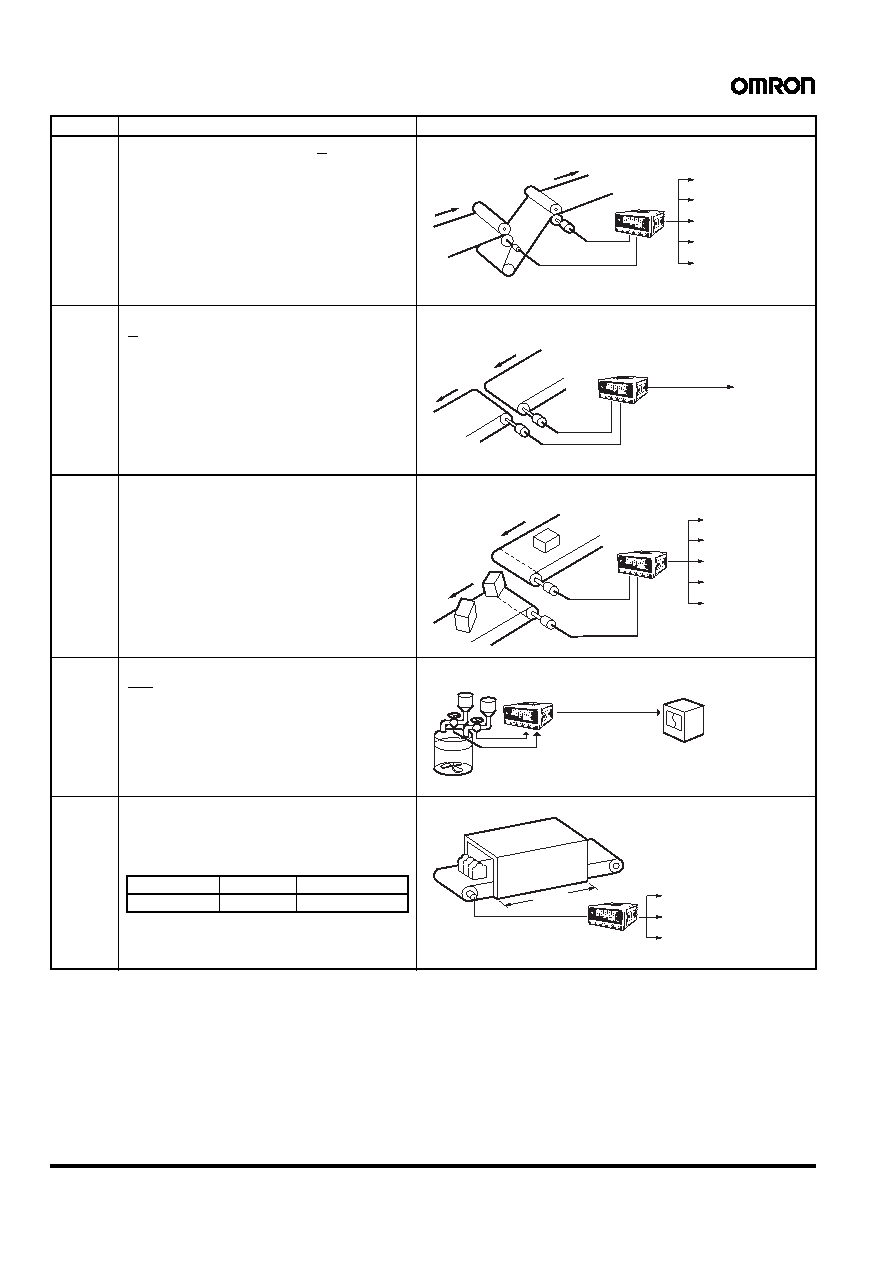

Operation image (application)

PASS

Warning

Communications

output

(remote monitoring)

To computer

PASS

Warning

A+B

Linear output

Recording meter

Calculation

Display unit Prescale value (

α)

Passing time

L/(

πd/N)

PASS

Warning

output

Distance
